Ford (4WD) Suspension Lift Kit - Front and Rear - ICON Vehicle Dynamics - K67204R

SUSPENSION SYSTEM
08-10 FSD 7" STG 5 SUSP SYS RADIUS ARM
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 5.
00” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.
25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.
25” Backspace / 6mm Offset
Recommended Aftermarket Tires: 37" x 12.
50" (Larger tires may fit but fender trimming and modifications will be required.
)
APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
APPLICATION NOTE #8: This System May Require A Carrier Bearing Drop Bracket Kit (33700)
APPLICATION NOTE #21: Not Applicable On Vehicles Equipped With A Manual Transmission
APPLICATION NOTE #31: ‘08 - Current Superduty Models With Gas Engines May Need Exhaust Modified To Clear Front Driveshaft
APPLICATION NOTE #55: Shocks Are Fully Serviceable.
Coilover Heights Indicated Are For A Stock Equipped Vehicle
APPLICATION NOTE #57: Retains Factory Block For Truck To Sit Level With Front Of Truck
Ships in multiple boxes
08-10 FORD F250/F350 7" STAGE 5 SUSPENSION SYSTEM W RADIUS ARM
2008-2010 FORD F250/F350 SUPER DUTY 7" LIFT STAGE 5 SUSPENSION SYSTEM WITH RADIUS ARM
ICON Vehicle Dynamics is an industry leader when it comes to Ford Super Duty performance.
Our engineers have spent countless hours under these trucks and behind the wheel developing some of the most refined suspension systems available.
Increasing wheel travel and ride comfort is standard operating procedure at ICON, but our engineers aimed high to produce a suspension solution that also maintained the Super Duty’s towing capacity.
ICON’s 7” Suspension System for the 08-10 Super Duty yields enough lift to clear 37” tires while providing excellent ride characteristics across a wide variety of terrain on and off-road.
Each component of this suspension system has been specifically engineered to work in union with other ICON parts to extract maximum performance out of the vehicle.
Our Stage 5 System is comprised of 7” lift dual rate coil springs, fabricated radius arm drop mounts with brushed stainless badges, track bar drop bracket, bump stop extensions, sway bar links, a forged pitman arm, brake line brackets, rear 5" lift progressive rate leaf springs w/ U-bolts, and 2.
5 Aluminum Series piggyback reservoir front and rear shocks.
2.
5" reservoir shocks ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use.
The ICON CDC Valve upgrade is included in this stage for those desiring an easy way to tune the ride externally.

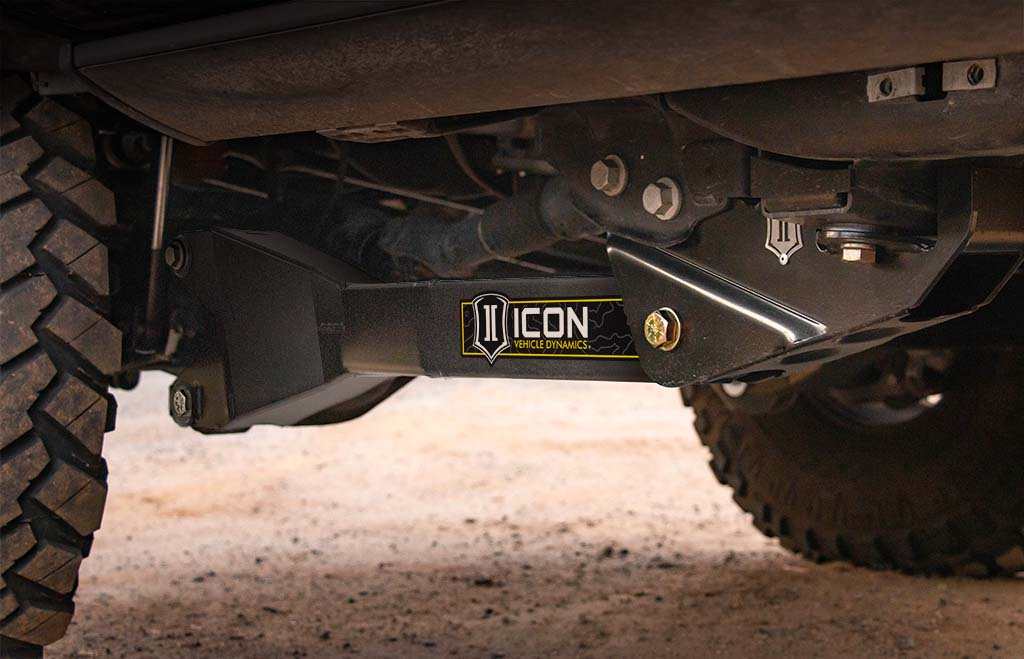

This Stage 4 system sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty Radius Arm System that feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation.
Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm.
Increased wheel travel and ride quality over stock with no change in towing capacity
Decreased body roll
ICON engineered dual rate coil springs with match tuned 2.
5 Series reservoir shocks w/ CDCV
Shock absorbers feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
Fabricated radius arms with drop brackets offer on vehicle caster adjustment, increased strength, and improved tire clearance at steering lock
Correctly positioned steering and track bar components
Rear progressive design leaf pack for smooth compliant ride
No drive shaft modifications needed
ICON 2008-2010 Ford F250/F350, 7" Lift, Stage 5 Suspension System, W/Radius Arm, K67204R
ICON 2008-2010 Ford F250/F350, 7" Lift, Stage 5 Suspension System, w/Radius Arm.

Detailed Fitment Results
Year Make Model 2008 Ford F-250 Super Duty 2008 Ford F-350 Super Duty 2009 Ford F-250 Super Duty 2009 Ford F-350 Super Duty 2010 Ford F-250 Super Duty 2010 Ford F-350 Super Duty
