Ford (4WD) Suspension Lift Kit - Front and Rear - ICON Vehicle Dynamics - K67201

SUSPENSION SYSTEM
08-10 FSD 7" STAGE 2 SUSPENSION SYSTEM
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 5.
00” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.
25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.
25” Backspace / 6mm Offset
Recommended Aftermarket Tires: 37" x 12.
50" (Larger tires may fit but fender trimming and modifications will be required.
)
APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
APPLICATION NOTE #21: Not Applicable On Vehicles Equipped With A Manual Transmission
APPLICATION NOTE #28: Pinch Weld On ‘05-’10 Superduty Radius Arms May Come In Contact With Radius Arm Drop Bracket Hardware
APPLICATION NOTE #29: 7” Systems Using A 4-Link In Place Of The Factory Radius Arms Do Not Require The Use Of Alignment Cams.
Caster Can Be Adjusted By The Lower Link Arms
APPLICATION NOTE #31: ‘08 - Current Superduty Models With Gas Engines May Need Exhaust Modified To Clear Front Driveshaft
APPLICATION NOTE #55: Shocks Are Fully Serviceable.
Coilover Heights Indicated Are For A Stock Equipped Vehicle
APPLICATION NOTE #57: Retains Factory Block For Truck To Sit Level With Front Of Truck
Ships in multiple boxes
08-10 FORD F250/F350 7" STAGE 2 SUSPENSION SYSTEM
2008-2010 FORD F250/F350 7" LIFT STAGE 2 SUSPENSION SYSTEM
ICON Vehicle Dynamics is an industry leader when it comes to Ford Super Duty performance.
Our engineers have spent countless hours under these trucks and behind the wheel developing some of the most refined suspension systems available.
Increasing wheel travel and ride comfort is standard operating procedure at ICON, but our engineers aimed high to produce a suspension solution that also maintained the Super Duty’s towing capacity.
ICON’s 7” Suspension System for the 08-10 Super Duty yields enough lift to clear 37” tires while providing excellent ride characteristics across a wide variety of terrain on and off-road.
Each component of this suspension system has been specifically engineered to work in union with other ICON parts to extract maximum performance out of the vehicle.

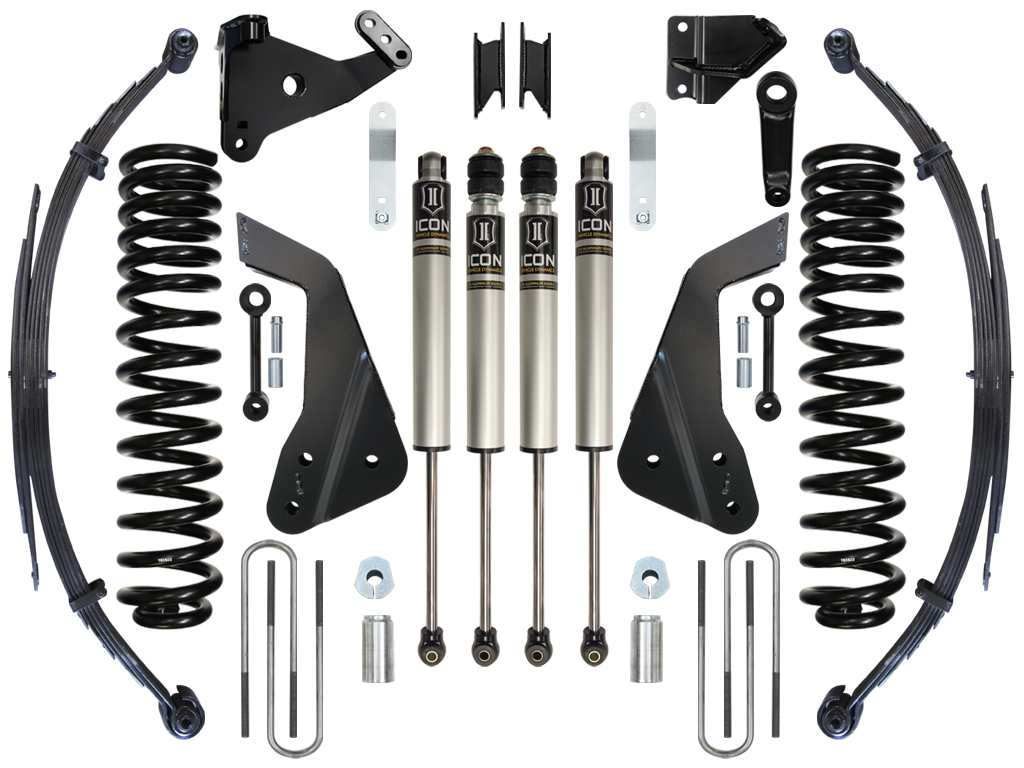

Our Stage 2 System is comprised of 7” lift dual rate coil springs, fabricated radius arm drop mounts with brushed stainless badges, track bar drop bracket, bump stop extensions, sway bar links, a forged pitman arm, brake line brackets, rear 5" lift progressive rate leaf springs w/ U-bolts, and 2.
0 Aluminum Series smooth body front and rear shocks.
Increased wheel travel and ride quality over stock with no change in towing capacity
Decreased body roll
ICON engineered dual rate coil springs with match tuned 2.
0 Aluminum Series shocks
Hard anodized aluminum shock body with 5/8” polished nitro steel shaft
Heavy duty radius arm drop brackets
Correctly positioned steering and track bar components
Rear progressive design leaf pack for smooth compliant ride
No drive shaft modifications needed
ICON 2008-2010 Ford F250/F350, 7" Lift, Stage 2 Suspension System, K67201
ICON 2008-2010 Ford F250/F350, 7" Lift, Stage 2 Suspension System.

Detailed Fitment Results
Year Make Model 2008 Ford F-250 Super Duty 2008 Ford F-350 Super Duty 2009 Ford F-250 Super Duty 2009 Ford F-350 Super Duty 2010 Ford F-250 Super Duty 2010 Ford F-350 Super Duty
