Ford (4WD) Suspension Lift Kit - Front and Rear - ICON Vehicle Dynamics - K64560

SUSPENSION SYSTEM
11-16 F250/F350 4.
5" STAGE 1 SUSP SYSTEM
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 5.
00” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.
25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.
25” Backspace / 6mm Offset
Recommended Aftermarket Tires: 35" x 12.
50" (Larger tires may fit but fender trimming and modifications will be required.
)
APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
APPLICATION NOTE #31: ‘08 - Current Superduty Models With Gas Engines May Need Exhaust Modified To Clear Front Driveshaft
APPLICATION NOTE #40: Radius Arm / 4-Link Frame Brackets Will Require Minor Drilling Into Frame To Complete Install
APPLICATION NOTE #55: Shocks Are Fully Serviceable.
Coilover Heights Indicated Are For A Stock Equipped Vehicle
Ships in multiple boxes
11-16 FORD F250/F350 4.
5" STAGE 1 SUSPENSION SYSTEM
2011-2016 FORD F250/F350 4.
5" LIFT STAGE 1 SUSPENSION SYSTEM
This 4.
5" System for the 2011-2016 Super Duty is one of the best riding suspension systems ICON has ever developed.
This system has been engineered using the highest quality materials and components.
The dual rate front coil springs combined with our ICON 2.
0 Aluminum Series shocks give these trucks the performance they so desperately need.

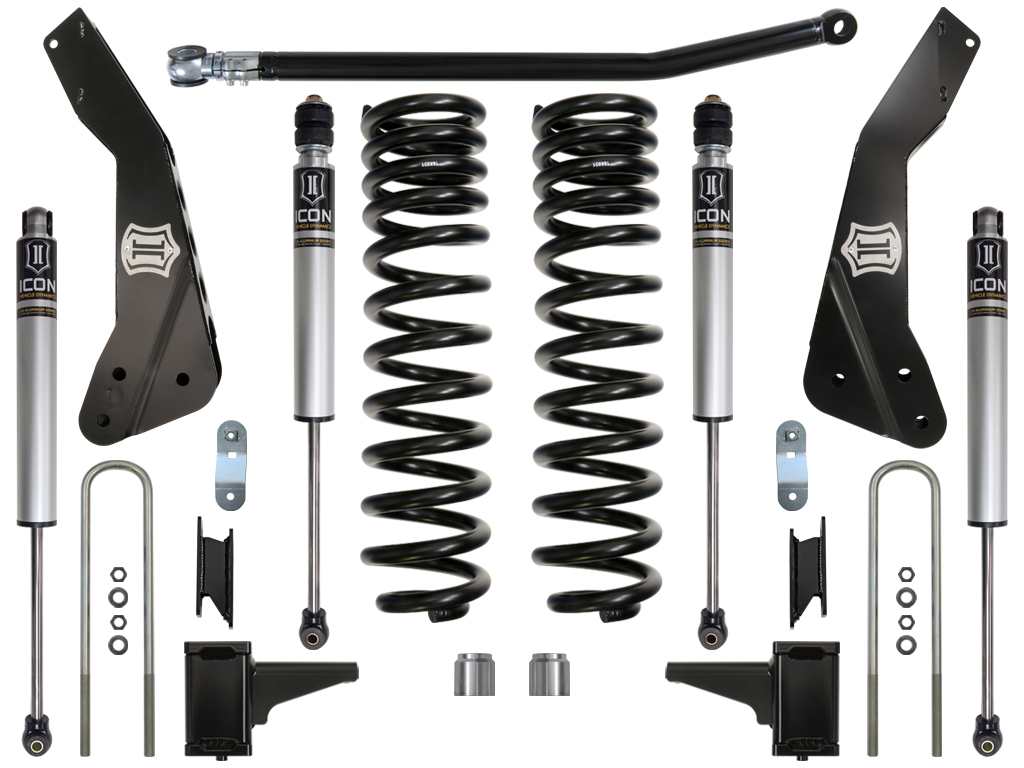

This system comes complete with front coils, shocks, radius arm drop down brackets, rear blocks, U-bolts, and our patented adjustable track bar giving the front end of these trucks perfect track alignment.
50% increase in wheel travel
Less body-roll than stock truck
4.
5" more travel from ride height to front bump stops
Dual rate coil spring
Lifetime guarantee that coil springs won’t sag
Clears 35" tall tires and 37" tall tires w/ minor trimming
No change in towing capacity
No drive shaft modifications needed
100% bolt-on system - no cutting or welding necessary for install
ICON 2011-2016 Ford F250/F350, 4.
5" Lift, Stage 1 Suspension System, K64560
ICON 2011-2016 Ford F250/F350, 4.
5" Lift, Stage 1 Suspension System.

Detailed Fitment Results
Year Make Model 2011 Ford F-250 Super Duty 2011 Ford F-350 Super Duty 2012 Ford F-250 Super Duty 2012 Ford F-350 Super Duty 2013 Ford F-250 Super Duty 2013 Ford F-350 Super Duty 2014 Ford F-250 Super Duty 2014 Ford F-350 Super Duty 2015 Ford F-250 Super Duty 2015 Ford F-350 Super Duty 2016 Ford F-250 Super Duty 2016 Ford F-350 Super Duty
