Ford (4WD) Suspension Lift Kit - Front and Rear - ICON Vehicle Dynamics - K64550

SUSPENSION SYSTEM
08-10 F250/F350 4.
5" STAGE 1 SUSP SYSTEM
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 5.
00” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.
25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.
25” Backspace / 6mm Offset
Recommended Aftermarket Tires: 35" x 12.
50" (Larger tires may fit but fender trimming and modifications will be required.
)
APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
APPLICATION NOTE #21: Not Applicable On Vehicles Equipped With A Manual Transmission
APPLICATION NOTE #28: Pinch Weld On ‘05-’10 Superduty Radius Arms May Come In Contact With Radius Arm Drop Bracket Hardware
APPLICATION NOTE #31: ‘08 - Current Superduty Models With Gas Engines May Need Exhaust Modified To Clear Front Driveshaft
APPLICATION NOTE #55: Shocks Are Fully Serviceable.
Coilover Heights Indicated Are For A Stock Equipped Vehicle
Ships in multiple boxes
08-10 FORD F250/F350 4.
5" STAGE 1 SUSPENSION SYSTEM
2008-2010 FORD F250/F350 4.
5" LIFT STAGE 1 SUSPENSION SYSTEM
This 4.
5" System for the 2008-2010 Super Duty is one of the best riding suspension systems ICON has ever developed.
This system has been engineered using the highest quality materials and components.
The dual rate front coil springs combined with our ICON 2.
0 Aluminum Series shocks give these trucks the performance they so desperately need.

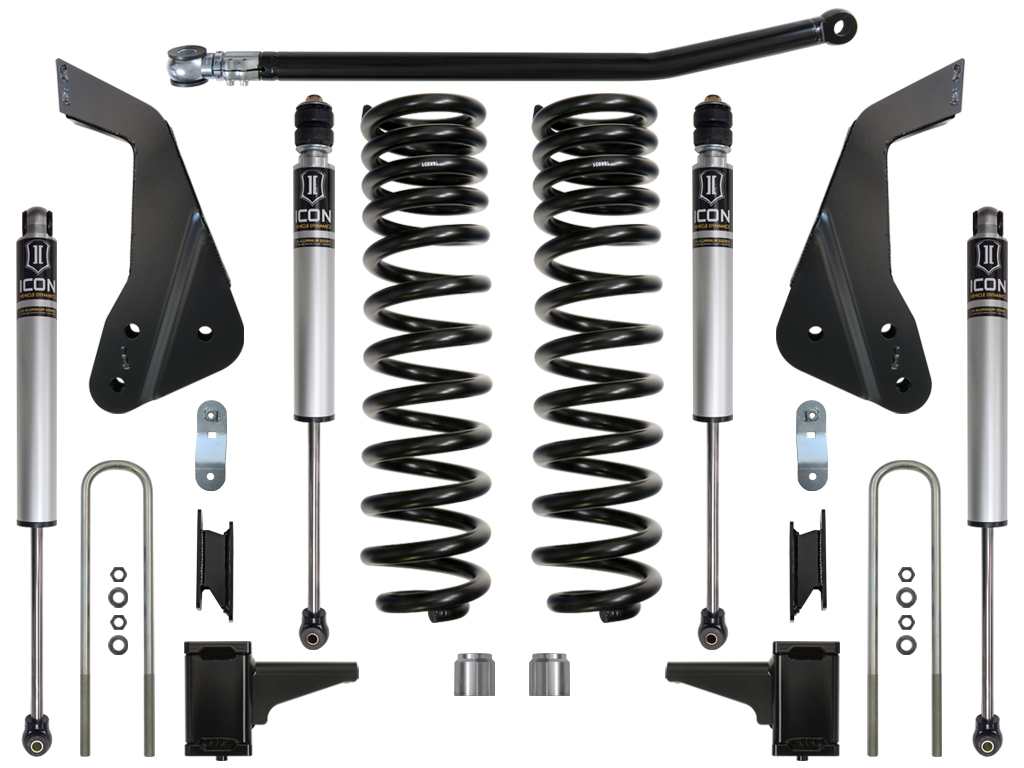

This system comes complete with front coils, shocks, radius arm drop down brackets, rear blocks, U-bolts, and our patented adjustable track bar giving the front end of these trucks perfect track alignment.
50% increase in wheel travel
Less body-roll than stock truck
4.
5" more travel from ride height to front bump stops
Dual rate coil spring
Lifetime guarantee that coil springs won’t sag
Clears 35" tall tires and 37" tall tires w/ minor trimming
No change in towing capacity
No drive shaft modifications needed
100% bolt-on system - no drilling, cutting or welding necessary for install
ICON 2008-2010 Ford F250/F350, 4.
5" Lift, Stage 1 Suspension System, K64550
ICON 2008-2010 Ford F250/F350, 4.
5" Lift, Stage 1 Suspension System.

Detailed Fitment Results
Year Make Model 2008 Ford F-250 Super Duty 2008 Ford F-350 Super Duty 2009 Ford F-250 Super Duty 2009 Ford F-350 Super Duty 2010 Ford F-250 Super Duty 2010 Ford F-350 Super Duty
