Ford Suspension Lift Kit - Front and Rear - ICON Vehicle Dynamics - K64532L

SUSPENSION SYSTEM
K64532L
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Tires: 37" x 12.
50" (Larger tires may fit but fender trimming and modifications will be required.
)
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 5” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.
25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.
25” Backspace / 6mm Offset
APPLICATION NOTE #55: Shocks are fully serviceable.
Lift heights indicated are for a stock equipped vehicle.
APPLICATION NOTE #151: Fits single rear wheel models only
APPLICATION NOTE #156: Springs are rated for gasoline engines
APPLICATION NOTE #157: Lift heights based on 4WD crew cab gas
TECH NOTE: Will not fit 2024 models
TECH NOTE: Trucks equipped with Tremor package with have front lift height of 3.
5" over stock
TECH NOTE: Will not fit F-350 Cab and Chassis models
TECH NOTE: Reduction in rear spring rate may reduce accuracy of OnBoard Scales, if equipped
23 FORD F250/F350 4.
5" STAGE 2 SUSPENSION SYSTEM GAS W/ EXPANSION PACKS
ICON 4.
5” suspension systems lift your Ford Super Duty while improving ride quality and performance.
With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.
This ICON Vehicle Dynamics 4.
5” suspension system is a great way to lift your 4WD 2023 Ford F-250/F-350 Super Duty while drastically improving ride quality and performance and allowing fitment of larger, more aggressive wheel and tire combinations.
This entry level system is perfect for on-road and towing use, as well as mild off-road use like job site duty and washboard gravel roads.
ICON's 4.
5" Stage 2 System is comprised of 4.
5” lift coil springs optimized for trucks equipped with gasoline engines with a dual rate design that allows for a softer initial rate for superb on-road comfort and a firmer secondary rate that increases during compression for excellent bottoming resistance and off-road performance.
Fabricated radius arm drop brackets correct suspension geometry and ensure proper wheel alignment with the OE radius arms.
The fabricated track bar drop bracket allows the axle to be properly centered under the frame and reduces road feedback throughout the steering system with improved on- and off-road manners thanks to the elimination of bump steer.
ICON’s dual opposing steering stabilizer kit featuring ICON 2.
0 Aluminum Series shocks improves steering damping to better control undesirable steering feedback caused by larger tires.
Leaf spring expansion packs provide 2" of rear lift over stock with improved ride quality and small bump compliance while also reducing axle wrap compared to lift blocks.
ICON 2.
0 Aluminum Series remote reservoir front and rear shocks feature a vehicle specific tune for improved vehicle handling and excellent ride quality on- and off-road and remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade.
The included box kit includes fabricated front sway bar drop brackets to prevent bind, heavy-duty aluminum bump stop spacers, and high quality stainless steel extended brake lines.
This suspension system features high quality CNC machined, laser cut, and brake formed components and with the endless hours ICON has spent testing and tuning our suspension components and shock absorbers as a complete system, you can rest assured you have the best suspension solution on the market.
Fits 2023 F-250 / F-350 4WD gasoline applications
ICON engineered dual rate coil springs deliver 4.
5" of front lift with exceptional vehicle control over varying terrain
ICON 2.
0 Aluminum Series remote reservoir shocks feature vehicle specific tune for superior performance and ride quality
Approximately 50% increased front wheel travel over stock
Radius arm drop brackets correct geometry and caster for optimal alignment specs
Track bar drop bracket reduces track bar angle and corrects bump steer geometry
Dual steering stabilizer kit offers increased steering damping
Stainless steel braided front brake lines
Leaf spring expansion packs improve ride quality and provide 2" of rear lift
Corrosion resistant anodized shock bodies with 5/8" shafts
Shocks are fully rebuildable and re-tunable
Lifetime guarantee against spring breakage or sagging
Lifetime guarantee against ICON fabricated component breakage or manufacturer defect

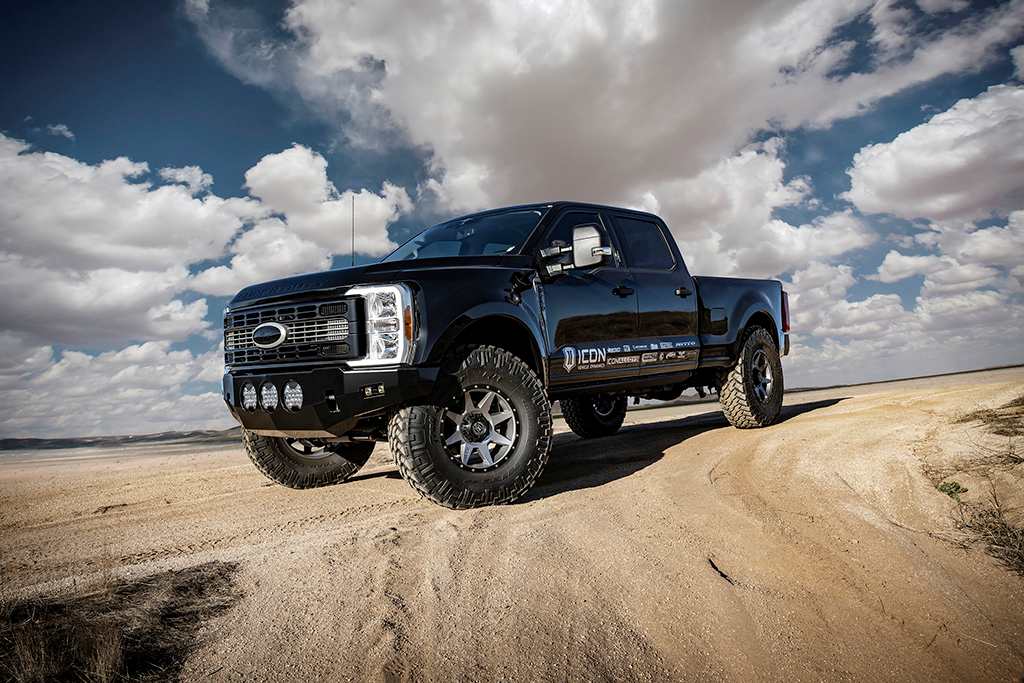

ICON 2023 Ford F-250/F-350 Super Duty 4WD Gas, 4.
5" Lift, Stage 2 Suspension System w/ Expansion Packs, K64532L
ICON 2023 Ford F-250/F-350 Super Duty 4WD Gas, 4.
5" Lift, Stage 2 Suspension System w/ Expansion Packs
ICON 23 FORD F250/F350 4.
5" STAGE 2 SUSPENSION SYSTEM GAS W/ EXPANSION PACKS.

Detailed Fitment Results
Year Make Model Submodel 2023 Ford F-250 Super Duty XL 2023 Ford F-250 Super Duty XLT 2023 Ford F-250 Super Duty Lariat 2023 Ford F-250 Super Duty Platinum 2023 Ford F-250 Super Duty King Ranch 2023 Ford F-350 Super Duty XL 2023 Ford F-350 Super Duty XLT 2023 Ford F-350 Super Duty Lariat 2023 Ford F-350 Super Duty Platinum 2023 Ford F-350 Super Duty King Ranch
