Ford (4WD) Suspension Lift Kit - Front and Rear - ICON Vehicle Dynamics - K64513

SUSPENSION SYSTEM
17-19 FORD F-250/F-350 4.
5 STG 3 SUSP
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 5” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.
25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.
25” Backspace / 6mm Offset
Recommended Aftermarket Tires: 37" x 12.
50" (Larger tires may fit but fender trimming and modifications will be required.
)
APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
APPLICATION NOTE #8: This System May Require A Carrier Bearing Drop Bracket Kit (33700)
APPLICATION NOTE #31: ‘08 - Current Superduty Models With Gas Engines May Need Exhaust Modified To Clear Front Driveshaft
APPLICATION NOTE #55: Shocks Are Fully Serviceable.
Coilover Heights Indicated Are For A Stock Equipped Vehicle
TECH NOTE: Brake line kit (Part # 61110) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
Ships in multiple boxes
17-19 FORD F-250/F-350 4.
5" STAGE 3 SUSPENSION SYSTEM
2017-2019 FORD F-250/F-350 4.
5" LIFT STAGE 3 SUSPENSION SYSTEM
This ICON Vehicle Dynamics 4.
5” suspension system is a great way to lift your 4WD 2017-2019 Ford F250/350 Super Duty while drastically improving ride quality and performance.
The Stage 3 system is perfect for on-road and off-road use including towing, job site duty and spirited off-road adventure.

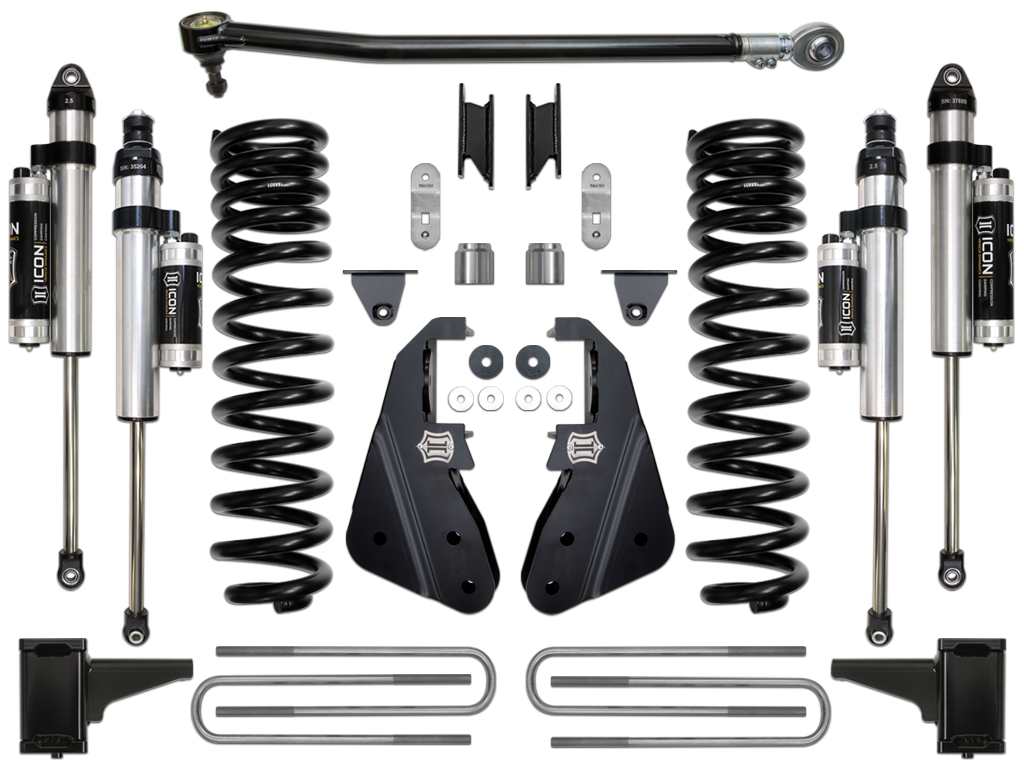

ICON's Stage 3 System is comprised of dual rate coil springs, radius arm drop brackets, adjustable track bar, 5" block kit, and ICON CDC Valve 2.
5 Aluminum Series front and rear piggyback reservoir shocks.
With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.
Fits 2017-2019 F250 / F350 4WD applications
Corrosion resistant anodized aluminum shock bodies with 7/8" shafts (2.
5 Aluminum Series shocks)
FK Rod End bearings provide extended longevity and minimal deflection
Lifetime guarantee against coil spring breakage or sag
Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
Approximately 50% increased front wheel travel over stock
ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
Radius arm drop brackets correct geometry and caster for optimal alignment specs
ICON shocks feature vehicle specific tune for superior performance and ride quality
ICON CDC Valve allows for 10 clicks of quick and easy compression adjustability
Shocks are fully rebuildable and revalvable
ICON 2017-2019 Ford F250/F350, 4.
5" Lift, Stage 3 Suspension System, K64513
ICON 2017-2019 Ford F250/F350, 4.
5" Lift, Stage 3 Suspension System.

Detailed Fitment Results
Year Make Model Submodel Fitment Notes 2017 Ford F-250 Super Duty XL Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.00” Backspace / 6mm Offset 2017 Ford F-250 Super Duty XLT Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.00” Backspace / 6mm Offset 2017 Ford F-250 Super Duty Lariat Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.00” Backspace / 6mm Offset 2017 Ford F-250 Super Duty King Ranch Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.00” Backspace / 6mm Offset 2017 Ford F-250 Super Duty Platinum Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.00” Backspace / 6mm Offset 2017 Ford F-350 Super Duty XL Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.00” Backspace / 6mm Offset 2017 Ford F-350 Super Duty XLT Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.00” Backspace / 6mm Offset 2017 Ford F-350 Super Duty Lariat Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.00” Backspace / 6mm Offset 2017 Ford F-350 Super Duty King Ranch Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.00” Backspace / 6mm Offset 2017 Ford F-350 Super Duty Platinum Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.00” Backspace / 6mm Offset 2018 Ford F-250 Super Duty XL Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.00” Backspace / 6mm Offset 2018 Ford F-250 Super Duty XLT Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.00” Backspace / 6mm Offset 2018 Ford F-250 Super Duty Lariat Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.00” Backspace / 6mm Offset 2018 Ford F-250 Super Duty King Ranch Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.00” Backspace / 6mm Offset 2018 Ford F-250 Super Duty Platinum Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.00” Backspace / 6mm Offset 2018 Ford F-250 Super Duty Limited Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.00” Backspace / 6mm Offset 2018 Ford F-350 Super Duty XL Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.00” Backspace / 6mm Offset 2018 Ford F-350 Super Duty XLT Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.00” Backspace / 6mm Offset 2018 Ford F-350 Super Duty Lariat Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.00” Backspace / 6mm Offset 2018 Ford F-350 Super Duty King Ranch Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.00” Backspace / 6mm Offset 2018 Ford F-350 Super Duty Platinum Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.00” Backspace / 6mm Offset 2018 Ford F-350 Super Duty Limited Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.00” Backspace / 6mm Offset 2019 Ford F-250 Super Duty XL Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.00” Backspace / 6mm Offset 2019 Ford F-250 Super Duty XLT Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.00” Backspace / 6mm Offset 2019 Ford F-250 Super Duty Lariat Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.00” Backspace / 6mm Offset 2019 Ford F-250 Super Duty King Ranch Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.00” Backspace / 6mm Offset 2019 Ford F-250 Super Duty Platinum Recommended Aftermarket Wheel …
