Ford (4WD) Suspension Lift Kit - Front and Rear - ICON Vehicle Dynamics - K64503R

SUSPENSION SYSTEM
05-07 F250/F350 4.
5" STG 4 SUSP SYS RAD
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 5.
00” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.
25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.
25” Backspace / 6mm Offset
Recommended Aftermarket Tires: 35" x 12.
50" (Larger tires may fit but fender trimming and modifications will be required.
)
APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
APPLICATION NOTE #8: This System May Require A Carrier Bearing Drop Bracket Kit (33700)
APPLICATION NOTE #21: Not Applicable On Vehicles Equipped With A Manual Transmission
APPLICATION NOTE #28: Pinch Weld On ‘05-’10 Superduty Radius Arms May Come In Contact With Radius Arm Drop Bracket Hardware
APPLICATION NOTE #55: Shocks Are Fully Serviceable.
Coilover Heights Indicated Are For A Stock Equipped Vehicle
Ships in multiple boxes
05-07 FORD F250/F350 4.
5" STAGE 4 SUSPENSION SYSTEM W RADIUS ARM
2005-2007 FORD F250/F350 SUPER DUTY 4.
5" LIFT STAGE 4 SUSPENSION SYSTEM WITH RADIUS ARM
This 4.
5" System for the 2005-2007 Super Duty is one the best riding suspension systems ICON has ever developed.
This system has been engineered using the highest quality materials and components.
The Dual-Rate front coil springs combined with our ICON 2.
5 Aluminum Series shocks give these trucks the performance they so desperately need.
This system comes complete with front coils, shocks, radius arm drop down brackets, rear blocks and u-bolts and our patented adjustable track bar giving the front end of these trucks perfect track alignment.
The Stage 4 system also includes our 4-Link kit for the ultimate in shock technology and suspension technology.

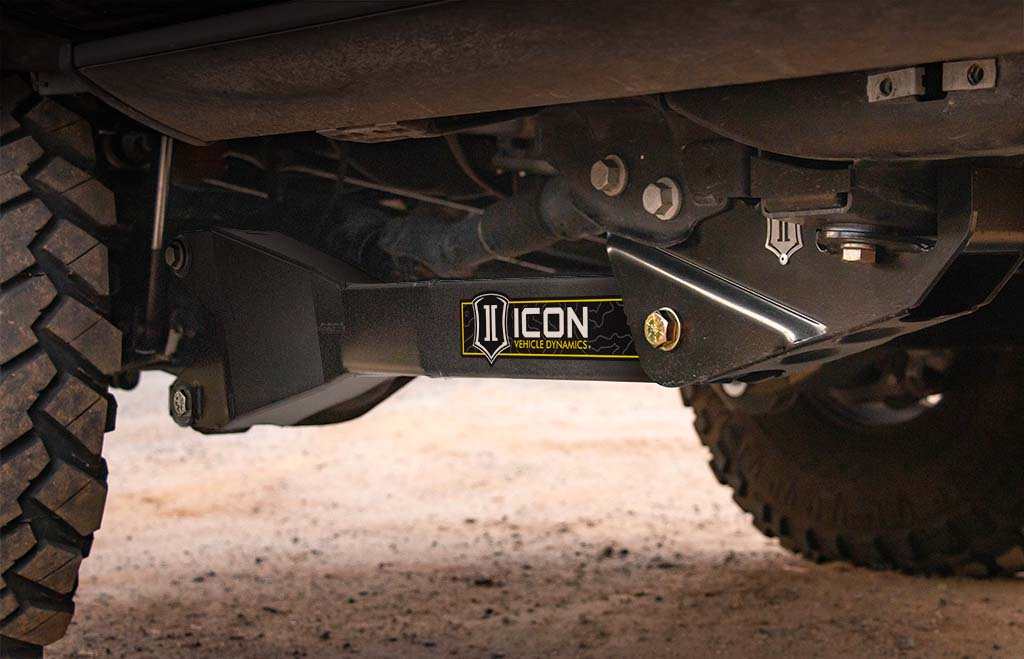

This Stage 4 system sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty Radius Arm System that feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation.
Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm.
50% increase in wheel travel
100% bolt-on system - no drilling,cutting or welding necessary for install
Less body roll than stock truck
4.
5" more travel from ride height to front bump stops
State-of-the-art dual-rate coil spring
Lifetime guarantee that coil springs won’t sag
Clears 35" Tall Tires and 37" Tall Tires w/ Minor Trimming
No change in towing capacity
No drive shaft modifications needed
Corrosion resistant anodized aluminum shock bodies with 7/8" shafts (2.
5 Aluminum Series shocks)
Fabricated radius arms with drop brackets offer on vehicle caster adjustment, increased strength, and improved tire clearance at steering lock
ICON 2005-07 Ford F250/F350, 4.
5" Lift, Stage 4 Suspension System, w/Radius Arm, K64503R
ICON 2005-07 Ford F250/F350, 4.
5" Lift, Stage 4 Suspension System, w/Radius Arm.

Detailed Fitment Results
Year Make Model 2005 Ford F-250 Super Duty 2005 Ford F-350 Super Duty 2006 Ford F-250 Super Duty 2006 Ford F-350 Super Duty 2007 Ford F-250 Super Duty 2007 Ford F-350 Super Duty
