Ford (4WD) Suspension Lift Kit - Front and Rear - ICON Vehicle Dynamics - K64500

SUSPENSION SYSTEM
05-07 F250/F350 4.
5" STAGE 1 SUSP SYSTEM
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 5.
00” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.
25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.
25” Backspace / 6mm Offset
Recommended Aftermarket Tires: 35" x 12.
50" (Larger tires may fit but fender trimming and modifications will be required.
)
APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
APPLICATION NOTE #21: Not Applicable On Vehicles Equipped With A Manual Transmission
APPLICATION NOTE #28: Pinch Weld On ‘05-’10 Superduty Radius Arms May Come In Contact With Radius Arm Drop Bracket Hardware
APPLICATION NOTE #55: Shocks Are Fully Serviceable.
Coilover Heights Indicated Are For A Stock Equipped Vehicle
Ships in multiple boxes
05-07 FORD F250/F350 4.
5" STAGE 1 SUSPENSION SYSTEM
2005-2007 FORD F250/F350 4.
5" LIFT STAGE 1 SUSPENSION SYSTEM
This 4.
5" System for the 2005-2007 Super Duty is one the best riding suspension systems ICON has ever developed.
This system has been engineered using the highest quality materials and components.
The Dual-Rate front coil springs combined with our ICON 2.
0 Aluminum Series shocks give these trucks the performance they so desperately need.

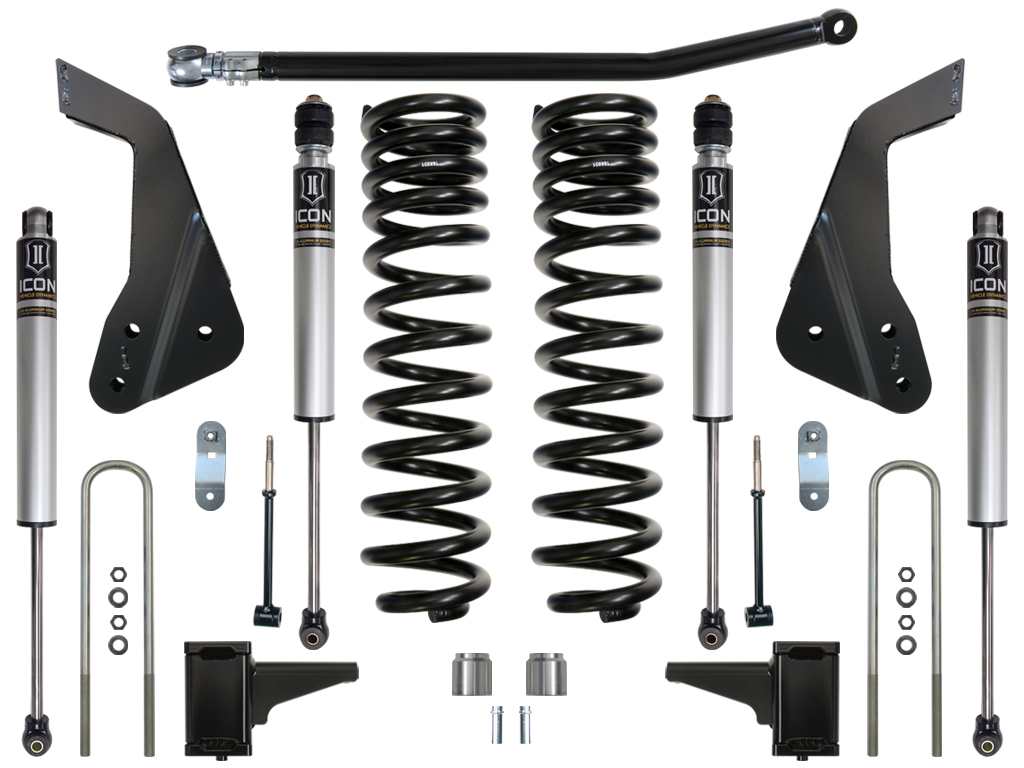

This system comes complete with front coils, shocks, radius arm drop down brackets, rear blocks and u-bolts and our patented Adjustable Track bar giving the front end of these trucks perfect track alignment.
50% increase in wheel travel
Less body roll than stock truck
4.
5" more travel from ride height to front bump stops
State-of-the-art dual-rate coil spring
Lifetime guarantee that coil springs won’t sag
Clears 35" Tall Tires and 37" Tall Tires w/ Minor Trimming
No change in towing capacity
No drive shaft modifications needed
100% Bolt-on system - no drilling, cutting or welding necessary for install
ICON 2005-2007 Ford F250/F350, 4.
5" Lift, Stage 1 Suspension System, K64500
ICON 2005-2007 Ford F250/F350, 4.
5" Lift, Stage 1 Suspension System.

Detailed Fitment Results
Year Make Model 2005 Ford F-250 Super Duty 2005 Ford F-350 Super Duty 2006 Ford F-250 Super Duty 2006 Ford F-350 Super Duty 2007 Ford F-250 Super Duty 2007 Ford F-350 Super Duty
