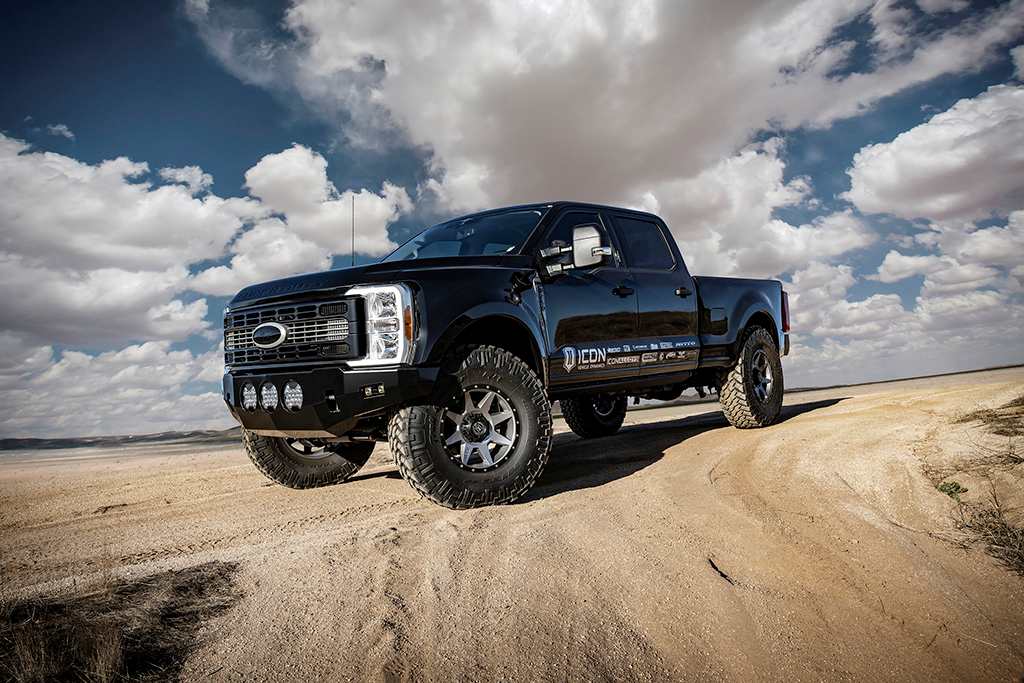

2023-2025 Ford F-250/F-350 Super Duty 4WD 4-5.5 Inch Lift Stage 3 Coilover Conversion System W/ Radius Arms - ICON Vehicle Dynamics - K63213R

This ICON Vehicle Dynamics 4-5.5 Inch coilover conversion system is a great way to lift your 4WD 2023-2025 Ford F-250/F-350 Super Duty while drastically improving ride quality and performance and allowing fitment of larger, more aggressive wheel and tire combinations. This Stage 3 system is perfect for on-road and towing use, as well as job site duty, washboard gravel roads, and general off-road adventures.

Features and Benefits:


ICON's 4-5.5 Inch Lift Stage 3 Coilover Conversion System features 2.5 Series remote reservoir coilovers that provide superb on-road comfort and off-road performance while at the same time allowing for end-user ride height adjustability. These bolt-in coilovers also allow the option to mount secondary shocks in the stock location, effectively doubling shock damping ability. Their remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Fabricated radius arms offer significantly more strength over the OE units and feature built in caster cams for on-vehicle caster adjustment, maintenance free bushings, and improved tire clearance at full steering lock, all while eliminating the need for drop brackets and thus raising ground clearance under the chassis. The fabricated track bar drop bracket allows the axle to be properly centered under the frame and reduces road feedback throughout the steering system with improved on- and off-road manners thanks to the elimination of bump steer. ICON's dual opposing steering stabilizer kit featuring ICON 2.0 Aluminum Series shocks improves steering damping to better control undesirable steering feedback caused by larger tires. Heavy-duty fabricated 5 Inch rear blocks and U-bolt kit lift the rear of the vehicle and are designed to withstand heavy towing/hauling duty as well as the stresses of aggressive off-road use. ICON 2.5 Aluminum Series internal reservoir rear shocks feature a vehicle specific tune for improved vehicle handling and excellent ride quality on- and off-road with improved performance compared to 2.0 Aluminum Series shocks. The included box kit includes fabricated front sway bar drop brackets to prevent bind, heavy-duty aluminum bump stop spacers, and high quality stainless steel extended brake lines.

This suspension system features high quality CNC machined, laser cut, and brake formed components and with the endless hours ICON has spent testing and tuning our suspension components and shock absorbers as a complete system, you can rest assured you have the best suspension solution on the market.

Fits 2023-2025 F-250 / F-350 4WD applications

Bolt-in system fits in OE coil bucket location

Ride height adjustable ICON 2.5 Series coilovers provide 4-5.5 Inch of front lift

Vehicle-specific shock valving provides unparalleled ride quality and control

ICON 2.5 Aluminum Series internal reservoir rear shocks

Increased wheel travel and ride quality over stock

Fabricated radius arms provide increased strength, on vehicle caster adjustment, improved tire clearance at steering lock, and higher ground clearance

Track bar drop bracket reduces track bar angle and corrects bump steer geometry

Dual steering stabilizer kit offers increased steering damping

Corrosion resistant anodized steering stabilizer shock bodies with 5/8 Inch shafts

Stainless steel braided front brake lines

Heavy-duty fabricated rear lift blocks

Corrosion resistant CAD plated coilover shock bodies with 7/8 Inch shafts

Corrosion resistant hard anodized rear shock bodies with 7/8 Inch shafts

Shocks are fully rebuildable and re-tunable

Lifetime guarantee against coil spring breakage or sagging

Lifetime guarantee against ICON fabricated component breakage or manufacturer defect


Details


Active Or Passive Suspension: Passive

Adjustable Compression: No

Adjustable Control Arm: Yes

Adjustable Damping: No

Adjustable Rebound: No

Bushings Included: Yes

Coil Quantity Front: 2.0

Coil Spring Color: Black

Coils Quantity Front: 2.0

Front Reservoir Style: Remote

Front Shock Body Diameter: 2.5

Front Spring Rate Type: Linear

Grade Type: Performance

Leaf Spring Bracket Color: Black

Leaf Spring Bracket Material: Steel

Maximum Lift: 6.0 Inch

Maximum Lift Front: 6.0 Inch

Maximum Lift Height Front: 6.0 Inch

Maximum Lift Height Rear: 2.0 Inch

Maximum Lift Rear: 2.0 Inch

Minimum Lift Front: 3.0 Inch

Mounting Hardware Included: Yes

Oem Wheels & Tires Fitment: Yes

Rear Reservoir Style: Internal

Rear Shock Body Diameter: 2.5

Recommended Aftermarket Tires: 37 Inch X 12.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required.)

Recommended Aftermarket Wheels: Icon Alloys - 17x8.5 Inch W/ 5 Inch Backspace / 6mm Offset, Icon Alloys - 20x9 Inch W/ 5.25 Inch Backspace / 6mm Offset, Icon Alloys - 18x9 Inch W/ 5.25 Inch Backspace / 6mm Offset

Shocks Included: Yes

Spring Color: Black

Spring Material: Steel

Add On Part: 67811P - 23-25 FSD 4.5 Inch Front 2.5 VS RR Pair, 66204 - 23-25 FSD Icon Radius Arm Scale Mount Kit 4.5 Inch, 611003 - 2.5 Resi Doubler Mount 7.5 Inch Kit, 64038 - 17-25 FSD Adj Track Bar Kit, 66518 - 23-25 FSD 4WD 4.5 Inch Front 2.0 Vs Ir, 67811CP - 23-25 FSD 4.5 Inch Front 2.5 VS RR Cdcv Pair, 66518R - 23-25 FSD 4WD 4.5 Inch Front 2.0 Vs Rr, 252012 - -4 To -10 Hose Shield Kit
