Ford Suspension Lift Kit - Front and Rear - ICON Vehicle Dynamics - K63177R

SUSPENSION SYSTEM
K63177R
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Tires: 37" x 12.
50" (Larger tires may fit but fender trimming and modifications will be required.
)
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 5” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.
25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.
25” Backspace / 6mm Offset
APPLICATION NOTE #55: Shocks are fully serviceable.
Lift heights indicated are for a stock equipped vehicle.
APPLICATION NOTE #88: Removal of the coil centering cup in factory coil bucket required for installation
APPLICATION NOTE #115: Lift heights based on 4WD crew cab diesel
APPLICATION NOTE #151: Fits single rear wheel models only
APPLICATION NOTE #163: If equipped with OnBoard Scales also requires sensor bracket part number 66204
TECH NOTE: Will not fit 2024 models
TECH NOTE: Super Duty diesel models without Tremor package will have front lift height range of 4-5.
5" over stock
TECH NOTE: Super Duty diesel models equipped with Tremor package will have front lift height range of 3-4.
5" over stock
TECH NOTE: Super Duty gas models without Tremor package will have front lift height range of 4.
5-6" over stock
TECH NOTE: Super Duty gas models equipped with Tremor package will have front lift height range of 3.
5-5" over stock
TECH NOTE: Will not fit F-350 Cab and Chassis models
TECH NOTE: Due to tight clearances and varying placement of vehicle’s wiring harness in the upper front-passenger wheel well area, installer must ensure adequate clearance between the harness, coilover reservoir, and other components to prevent chafing/damage to wire harness.
If adequate clearance cannot be achieved, please contact ICON Customer Service.
23 FORD F250/F350 4-5.
5" STAGE 7 COILOVER CONVERSION SYSTEM W/ RADIUS ARMS
ICON 4.
5” suspension systems lift your Ford Super Duty while improving ride quality and performance.
With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.
This ICON Vehicle Dynamics 4-5.

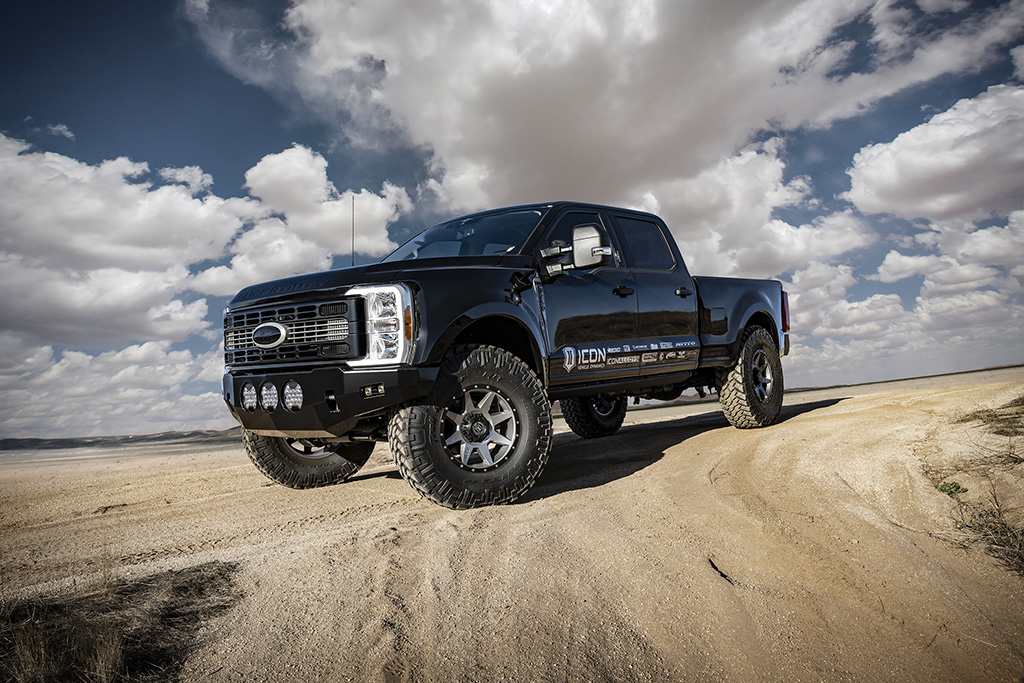

5” coilover conversion system is a great way to lift your 4WD 2023 Ford F-250/F-350 Super Duty while drastically improving ride quality and performance and allowing fitment of larger, more aggressive wheel and tire combinations.
This Stage 7 system is perfect for on-road and towing use, as well as job site duty, washboard gravel roads, and more aggressive off-road adventures.
ICON's 4-5.
5” Lift Stage 7 Coilover Conversion System features 2.
5 Series CDCV remote reservoir coilovers that provide superb on-road comfort and off-road performance while at the same time allowing for end-user ride height adjustability.
Their remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade.
To take advantage of the coilover's option to mount secondary shocks in the stock location, 2.
5 Aluminum Series CDCV remote reservoir secondary front shocks are included, effectively doubling shock damping ability on the front of the vehicle.
Fabricated radius arms offer significantly more strength over the OE units and feature built in caster cams for on-vehicle caster adjustment, maintenance free bushings, and improved tire clearance at full steering lock, all while eliminating the need for drop brackets and thus raising ground clearance under the chassis.
The fabricated track bar drop bracket allows the axle to be properly centered under the frame and reduces road feedback throughout the steering system with improved on- and off-road manners thanks to the elimination of bump steer.
An adjustable track bar allows for on-vehicle adjustment to fine tune track alignment as well as eliminating the deflective OE track bar bushings for an overall more rigid unit to improve the vehicles handling characteristics.
ICON’s Centerline steering stabilizer kit features a 2.
5 Aluminum Series shock absorber with a piggyback reservoir for improved steering damping compared to ICON dual 2.
0 steering stabilizers, better controlling undesirable steering feedback caused by larger tires while also improving ground clearance.
Heavy-duty fabricated 5" rear blocks and U-bolt kit lift the rear of the vehicle and are designed to withstand heavy towing/hauling duty as well as the stresses of aggressive off-road use.
ICON 2.
5 Aluminum Series CDCV piggyback reservoir rear shocks feature a vehicle specific tune for improved vehicle handling and excellent ride quality on- and off-road with improved performance compared to 2.
0 Aluminum Series shocks.
The included ICON CDC Valves are externally adjustable valves that restrict oil flow into the reservoir which creates 10 levels of compression damping force ranges.
The included box kit includes fabricated front sway bar drop brackets to prevent bind, heavy-duty aluminum bump stop spacers, and high quality stainless steel extended brake lines.
This suspension system features high quality CNC machined, laser cut, and brake formed components and with the endless hours ICON has spent testing and tuning our suspension components and shock absorbers as a complete system, you can rest assured you have the best suspension solution on the market.
Fits 2023 F-250 / F-350 4WD applications
Bolt-in system fits in OE coil bucket location
Ride height adjustable ICON 2.
5 Series coilovers provide 4-5.
5" of front lift
Vehicle-specific shock valving provides unparalleled ride quality and control
ICON 2.
5 Aluminum Series remote reservoir secondary front shocks for increased damping ability and off-road performance
ICON 2.
5 Aluminum Series piggyback reservoir rear shocks
Front, front-secondary, and rear shocks are all ICON CDCV equipped for 10 settings of external compression damping adjustment
Increased wheel travel and ride quality over stock
Fabricated radius a…
