Ford Suspension Lift Kit - ICON Vehicle Dynamics - K63165RL

SUSPENSION SYSTEM
K63165RL
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 5” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.
25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.
25” Backspace / 6mm Offset
Recommended Aftermarket Tires: 35" x 12.
50" (37" x 12.
50" tires may fit but fender trimming and modifications will be required.
)
PPLICATION NOTE #55: Shocks are fully serviceable.
Lift heights indicated are for a stock equipped vehicle.
APPLICATION NOTE #88: Removal of the coil centering cup in factory coil bucket required for installation.
APPLICATION NOTE #151: Fits single rear wheel models only
APPLICATION NOTE #161: If equipped with OnBoard Scales also requires sensor bracket part number 66203
TECH NOTE: Will not fit 2024 models
TECH NOTE: Diesel models without Tremor package will have front lift height range of 2.
5-3" over stock
TECH NOTE: Diesel models equipped with Tremor package will have front lift height range of 1.
5-2" over stock
TECH NOTE: Gas models without Tremor package will have front lift height range of 3-3.
5" over stock
TECH NOTE: Gas models equipped with Tremor package will have front lift height range of 2-2.
5" over stock
TECH NOTE: Reduction in rear spring rate may reduce accuracy of OnBoard Scales, if equipped
TECH NOTE: Not compatible with F-350 Cab and Chassis models
TECH NOTE: Brake line kit (Part # 61111) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
TECH NOTE: ICON track bar bracket part # 64039 is also recommended to correct bump steer geometry
TECH NOTE: Replaces OE rear blocks for.
5" of rear lift over stock on F-250.
Lowers F-350 rear ride height by.
5" compared to stock.
TECH NOTE: Due to tight clearances and varying placement of vehicle’s wiring harness in the upper front-passenger wheel well area, installer must ensure adequate clearance between the harness, coilover reservoir, and other components to prevent chafing/damage to wire harness.
If adequate clearance cannot be achieved, please contact ICON Customer Service.
23 FORD F250/F350 2.
5-3" STAGE 5 C/O CONV SYS W/ RADIUS ARMS/EXPANSION PACKS
ICON coilover conversion systems lift your Super Duty while improving ride quality and performance.
With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.
This ICON Vehicle Dynamics 2.
5-3” coilover system is a great way to lift your 4WD 2023 Ford F-250/F-350 Super Duty while drastically improving ride quality and performance.
The Stage 5 system is perfect for on-road and off-road use including towing, job site duty and general off-road adventure.
The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment.
The 2.
5" Remote Reservoir Coilover featured in these kits is based off ICON’s 2.
5 VS Series shock line - meaning that features like ICON engineered coil springs, FK Rod End bearings, and vehicle-specific valving come standard.
ICON's Stage 5 System is comprised of ICON 2.
5 Series CDCV remote reservoir coilovers with adjustable ride height, 2.
5 Aluminum Series CDCV front secondary shocks for increased damping, dual steering stabilizer kit with ICON 2.
0 Aluminum Series stabilizers, on vehicle adjustable track bar, fabricated radius arms, rear leaf spring expansion packs with blocks and U-bolts for a more compliant ride and reduced axle wrap, and ICON 2.
5 Aluminum Series CDCV piggyback reservoir rear shocks, for those desiring an easy way to tune the ride externally with 10 settings, from soft to hard.

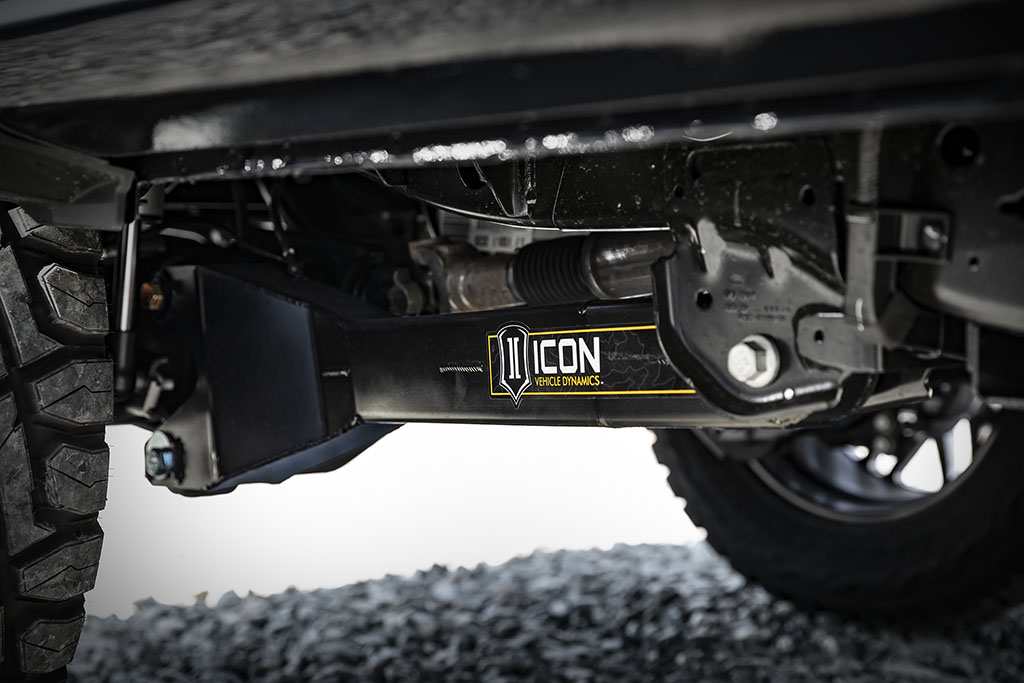

This stage sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty Radius Arm System that feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation.
Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm.
With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.
Bolt-in system fits in OE coil bucket location
Ride height adjustable coilovers provide 2.
5-3" of lift
Decreased body roll and improved on and off-road ride dynamics
Vehicle-specific shock valving provides unparalleled ride quality and control
Front coilover, front secondary, and rear shocks equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
Shocks are fully rebuildable and revalveable
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
2.
5 Aluminum Series front secondary and rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
Adjustable track bar ensures proper axle placement and improves handling
Fabricated radius arms offer on vehicle caster adjustment, increased strength, and improved tire clearance at steering lock
Dual steering stabilizer kit for smooth wheel control while driving
Leaf spring expansion packs and blocks for more compliant ride quality and reduced axle wrap
ICON engineered coil and leaf springs guaranteed for life against sagging or breakage
FK Rod End bearings for extended longevity and minimal deflection
ICON 2023 Ford F-250/F-350 Super Duty 4WD, 2.
5-3" Lift, Stage 5 Coilover Conversion System with Radius Arms and Expansion Packs, K63165RL
ICON 2023 Ford F-250/F-350 Super Duty 4WD, 2.
5-3" Lift, Stage 5 Coilover Conversion System with Radius Arms and Expansion Packs
ICON 23 FORD F250/F350 2.
5-3" STAGE 5 C…
