Ford (4WD) Suspension Lift Kit - Front and Rear - ICON Vehicle Dynamics - K63156R

SUSPENSION SYSTEM
17-22 FSD 4-5.
5" STG 6 CO CONV RADIUS
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 5.
00” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.
25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.
25” Backspace / 6mm Offset
Recommended Aftermarket Tires: 37" x 12.
50" (Larger tires may fit but fender trimming and modifications will be required.
)
APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
APPLICATION NOTE #8: This System May Require A Carrier Bearing Drop Bracket Kit (33700)
APPLICATION NOTE #55: Shocks Are Fully Serviceable.
Coilover Heights Indicated Are For A Stock Equipped Vehicle
APPLICATION NOTE #88: Removal Of The Coil Centering Cup In Factory Coil Bucket Required For Installation.
TECH NOTE: 2017-2019 Super Duty models will have front lift height range of 4-5.
5 over stock
TECH NOTE: 2020-2022 Super Duty models without Tremor package will have front lift height range of 4.
75-6.
25" over stock
TECH NOTE: 2020-2022 Super Duty models equipped with Tremor package will have front lift height range of 3.
75-5.
25" over stock
TECH NOTE: Brake line kit (Part # 61110) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
TECH NOTE: Track bar bracket part number 64039 is optional, but recommended to correct steering geometry.
Ships in multiple boxes
17-22 FORD F250/F350 4-5.
5" STAGE 6 COILOVER CONVERSION SYSTEM W RADIUS ARM
2017-2022 FORD F-250/F-350 SUPER DUTY 4-5.
5" LIFT STAGE 6 COILOVER CONVERSION SYSTEM WITH RADIUS ARM

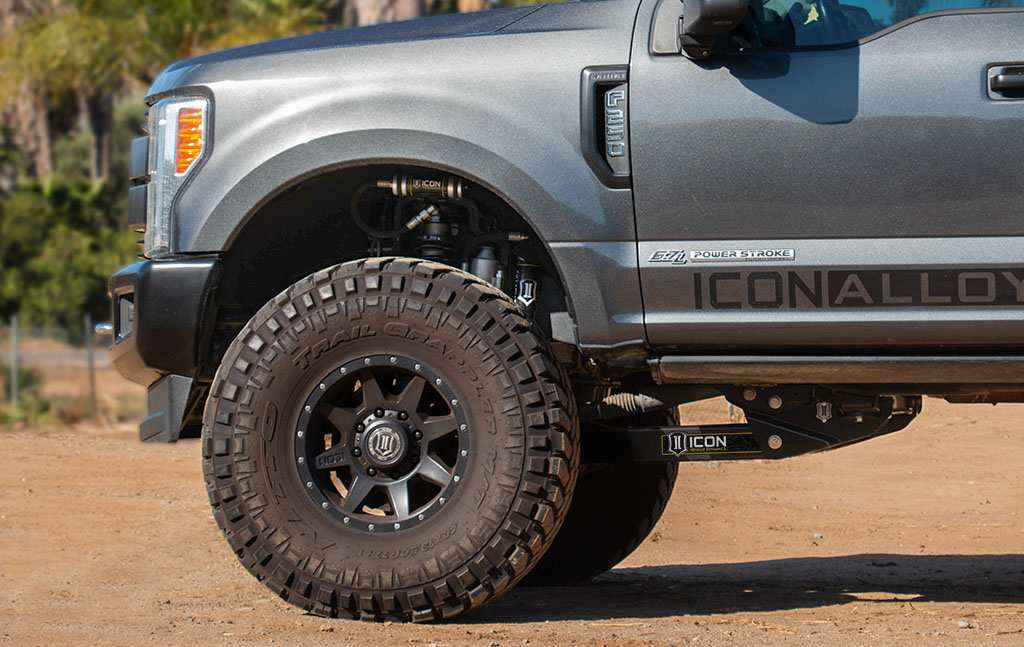

Designed to provide a height-adjustable option to the extremely popular ICON Vehicle Dynamics 4.
5” Ford Super Duty Suspension Systems, these coilover conversions provide excellent on-road ride quality and off-road performance while at the same time allowing for end-user ride height adjustability.
This Stage 6 system sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty Radius Arm System that feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation.
Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm.
Bolt-in system fits in OE coil bucket location
Corrosion resistant anodized aluminum shock bodies with 7/8" shafts (2.
5 Aluminum Series shocks)
Eibach coil springs guaranteed for life against sagging or breakage
FK Rod End bearings for extended longevity and minimal deflection
Ride height adjustable coilovers provide 4-5.
5" or 4.
75-6.
25" of lift, depending on year model of truck
Increased wheel travel and ride quality over stock
Decreased body roll and improved on and off-road ride dynamics
Vehicle-specific shock valving provides unparalleled ride quality and control
Shocks are fully rebuildable and revalveable
Coilover conversion allows for addition of secondary shock
Corrosion resistant CAD plated coilover shock body with 7/8" shaft
Fabricated radius arms offer on vehicle caster adjustment, increased strength, and improved tire clearance at steering lock
ICON 2017-2022 Ford F250/F350, 4-5.
5" Lift, Stage 6 Suspension System, w/Radius Arm, K63156R
ICON 17-22 Ford F250/F350, 4-5.
5" Lift Stage 6 Suspension System, w/Radius Arm.

Detailed Fitment Results
Year Make Model Submodel Fitment Notes 2017 Ford F-250 Super Duty XL Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.00” Backspace / 6mm Offset
Use with Extended Brake Line Kit Part Number 61110 2017 Ford F-250 Super Duty XLT Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.00” Backspace / 6mm Offset
Use with Extended Brake Line Kit Part Number 61110 2017 Ford F-250 Super Duty Lariat Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.00” Backspace / 6mm Offset
Use with Extended Brake Line Kit Part Number 61110 2017 Ford F-250 Super Duty King Ranch Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.00” Backspace / 6mm Offset
Use with Extended Brake Line Kit Part Number 61110 2017 Ford F-250 Super Duty Platinum Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.00” Backspace / 6mm Offset
Use with Extended Brake Line Kit Part Number 61110 2017 Ford F-350 Super Duty XL Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.00” Backspace / 6mm Offset
Use with Extended Brake Line Kit Part Number 61110 2017 Ford F-350 Super Duty XLT Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.00” Backspace / 6mm Offset
Use with Extended Brake Line Kit Part Number 61110 2017 Ford F-350 Super Duty Lariat Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.00” Backspace / 6mm Offset
Use with Extended Brake Line Kit Part Number 61110 2017 Ford F-350 Super Duty King Ranch Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.00” Backspace / 6mm Offset
Use with Extended Brake Line Kit Part Number 61110 2017 Ford F-350 Super Duty Platinum Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.00” Backspace / 6mm Offset
Use with Extended Brake Line Kit Part Number 61110 2018 Ford F-250 Super Duty XL Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.00” Backspace / 6mm Offset
Use with Extended Brake Line Kit Part Number 61110 2018 Ford F-250 Super Duty XLT Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.00” Backspace / 6mm Offset
Use with Extended Brake Line Kit Part Number 61110 2018 Ford F-250 Super Duty Lariat Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.00” Backspace / 6mm Offset
Use with Extended Brake Line Kit Part Number 61110 2018 Ford F-250 Super Duty King Ranch Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.00” Backspace / 6mm Offset
Use with Extended Brake Line Kit Part Number 61110 2018 Ford F-250 Super Duty Platinum Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.00” Ba…
