Ford (4WD) Suspension Lift Kit - Front and Rear - ICON Vehicle Dynamics - K63152

SUSPENSION SYSTEM
17-22 FSD 4-5.
5" STG 2 CO CONV SYSTEM
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 5.
00” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.
25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.
25” Backspace / 6mm Offset
Recommended Aftermarket Tires: 37" x 12.
50" (Larger tires may fit but fender trimming and modifications will be required.
)
APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
APPLICATION NOTE #8: This System May Require A Carrier Bearing Drop Bracket Kit (33700)
APPLICATION NOTE #55: Shocks Are Fully Serviceable.
Coilover Heights Indicated Are For A Stock Equipped Vehicle
APPLICATION NOTE #88: Removal Of The Coil Centering Cup In Factory Coil Bucket Required For Installation.
APPLICATION NOTE #120: Secondary Shock Options Available, Contact ICON For More Details
TECH NOTE: 2017-2019 Super Duty models will have front lift height range of 4-5.
5 over stock
TECH NOTE: 2020-2022 Super Duty models without Tremor package will have front lift height range of 4.
75-6.
25" over stock
TECH NOTE: 2020-2022 Super Duty models equipped with Tremor package will have front lift height range of 3.
75-5.
25" over stock
TECH NOTE: Brake line kit (Part # 61110) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
TECH NOTE: Track bar bracket part number 64039 is optional, but recommended to correct steering geometry.
Ships in multiple boxes

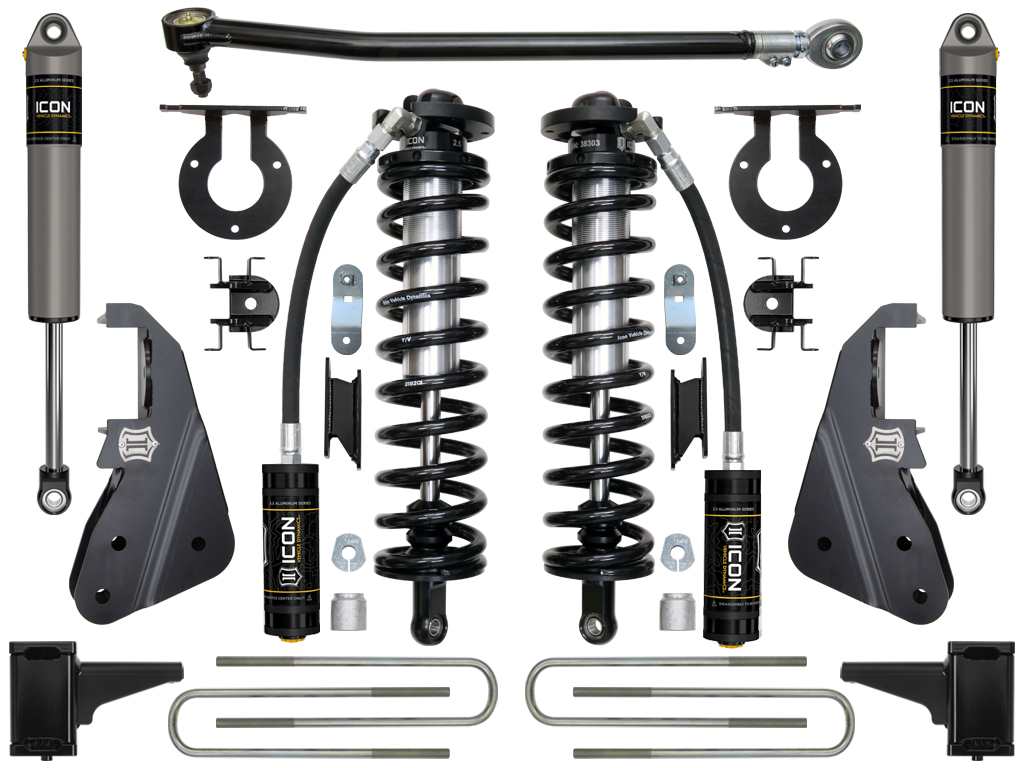

17-22 FORD F-250/F-350 4-5.
5" STAGE 2 COILOVER CONVERSION SYSTEM
2017-2022 FORD F-250/F-350 4-5.
5" LIFT STAGE 2 COILOVER CONVERSION SYSTEM
Designed to provide a height-adjustable option to the extremely popular ICON Vehicle Dynamics 4.
5” Ford Super Duty Suspension Systems, these coilover conversions provide excellent on-road ride quality and off-road performance while at the same time allowing for end-user ride height adjustability.
Bolt-in system fits in OE coil bucket location
Ride height adjustable coilovers provide 4-5.
5" or 4.
75-6.
25" of lift, depending on year model of truck
Increased wheel travel and ride quality over stock
Decreased body roll and improved on and off-road ride dynamics
Vehicle-specific shock valving provides unparalleled ride quality and control
Shocks are fully rebuildable and revalveable
Coilover conversion allows for addition of secondary shock
2.
5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
Eibach coil springs guaranteed for life against sagging or breakage
FK Rod End bearings for extended longevity and minimal deflection
ICON 2017-2022 Ford F250/F350, 4-5.
5" Lift, Stage 6 Suspension System, K63152
ICON 2017-2022 Ford F250/F350, 4-5.
5" Lift, Stage 2 Suspension System.

Detailed Fitment Results
Year Make Model Submodel Fitment Notes 2017 Ford F-250 Super Duty XL Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.00” Backspace / 6mm Offset
Use with Extended Brake Line Kit Part Number 61110 2017 Ford F-250 Super Duty XLT Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.00” Backspace / 6mm Offset
Use with Extended Brake Line Kit Part Number 61110 2017 Ford F-250 Super Duty Lariat Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.00” Backspace / 6mm Offset
Use with Extended Brake Line Kit Part Number 61110 2017 Ford F-250 Super Duty King Ranch Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.00” Backspace / 6mm Offset
Use with Extended Brake Line Kit Part Number 61110 2017 Ford F-250 Super Duty Platinum Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.00” Backspace / 6mm Offset
Use with Extended Brake Line Kit Part Number 61110 2017 Ford F-350 Super Duty XL Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.00” Backspace / 6mm Offset
Use with Extended Brake Line Kit Part Number 61110 2017 Ford F-350 Super Duty XLT Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.00” Backspace / 6mm Offset
Use with Extended Brake Line Kit Part Number 61110 2017 Ford F-350 Super Duty Lariat Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.00” Backspace / 6mm Offset
Use with Extended Brake Line Kit Part Number 61110 2017 Ford F-350 Super Duty King Ranch Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.00” Backspace / 6mm Offset
Use with Extended Brake Line Kit Part Number 61110 2017 Ford F-350 Super Duty Platinum Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.00” Backspace / 6mm Offset
Use with Extended Brake Line Kit Part Number 61110 2018 Ford F-250 Super Duty XL Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.00” Backspace / 6mm Offset
Use with Extended Brake Line Kit Part Number 61110 2018 Ford F-250 Super Duty XLT Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.00” Backspace / 6mm Offset
Use with Extended Brake Line Kit Part Number 61110 2018 Ford F-250 Super Duty Lariat Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.00” Backspace / 6mm Offset
Use with Extended Brake Line Kit Part Number 61110 2018 Ford F-250 Super Duty King Ranch Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.00” Backspace / 6mm Offset
Use with Extended Brake Line Kit Part Number 61110 2018 Ford F-250 Super Duty Platinum Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.00” Backspace / 6mm Offset
Use with Extended Brake Line Kit Part Number 61110 2018 Ford F-250 Super Duty Limited Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.00” Backspace / 6mm Offset
Use with Extended Brake Line Kit Part Number 61110 2018 Ford F-350 Super Duty XL Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.00” Backspace / 6mm Offset
Use with Extended Brake Line Kit Part Number 61110 2018 Ford F-350 Super Duty XLT Recommended Aftermarket Wheel Size: 17x8.5 inch w…
