Ford (4WD) Suspension Lift Kit - Front and Rear - ICON Vehicle Dynamics - K63135R

SUSPENSION SYSTEM
11-16 FSD 4-5.
5" STG 5 CO CONV RADIUS
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 5.
00” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.
25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.
25” Backspace / 6mm Offset
Recommended Aftermarket Tires: 35" x 12.
50" (Larger tires may fit but fender trimming and modifications will be required.
)
APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
APPLICATION NOTE #8: This System May Require A Carrier Bearing Drop Bracket Kit (33700)
APPLICATION NOTE #55: Shocks Are Fully Serviceable.
Coilover Heights Indicated Are For A Stock Equipped Vehicle
APPLICATION NOTE #88: Removal Of The Coil Centering Cup In Factory Coil Bucket Required For Installation.
APPLICATION NOTE #94: Wide Steer Equipped Trucks Require Stabilizer Part Number 66515 Qty 2
APPLICATION NOTE #120: Secondary Shock Options Available, Contact ICON For More Details
Ships in multiple boxes
11-16 FORD F250/F350 4-5.
5" STAGE 5 COILOVER CONVERSION SYSTEM W RADIUS ARM
2011-2016 FORD F-250/F-350 SUPER DUTY 4-5.
5" LIFT STAGE 5 COILOVER CONVERSION SYSTEM WITH RADIUS
Designed to provide a height-adjustable option to the extremely popular ICON Vehicle Dynamics 4.
5” Ford Super Duty Suspension Systems, these coilover conversions provide excellent on-road ride quality and off-road performance while at the same time allowing for end-user ride height adjustability.

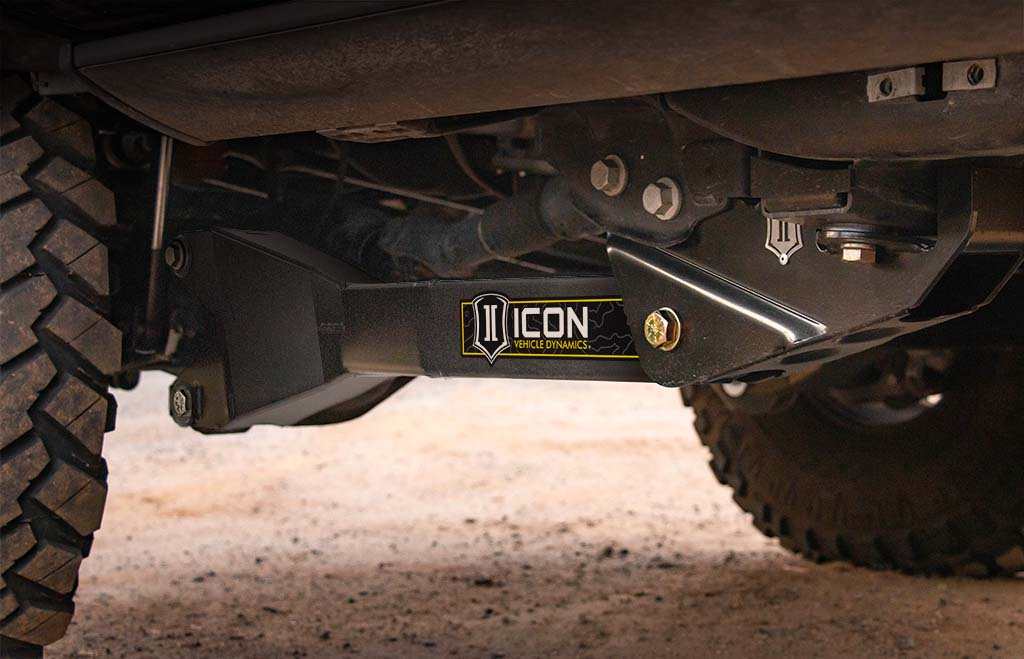

This Stage 5 system sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty Radius Arm System that feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation.
Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm.
Eibach coil springs guaranteed for life against sagging or breakage
Corrosion resistant CAD plated coilover shock body with 7/8" shaft
Rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
FK Rod End bearings for extended longevity and minimal deflection
Bolt-in system fits in OE coil bucket location
Ride height adjustable coilovers (4-5.
5" of lift over stock)
Increased wheel travel and ride quality over stock
Decreased body roll and improved on and off-road ride dynamics
Vehicle-specific shock valving provides unparalleled ride quality and control
Shocks are fully rebuildable and revalveable
Coilover conversion allows for addition of secondary shock
Fabricated radius arms with drop brackets offer on vehicle caster adjustment, increased strength, and improved tire clearance at steering lock
ICON 2011-16 Ford F250/F350 4-5.
5" Lift Stage 5 Coilover Conversion w/Radius Arm, K63135R
ICON 2011-16 Ford F250/F350 4-5.
5" Lift Stage 5 Coilover Conversion w/Radius Arm.

Detailed Fitment Results
Year Make Model 2011 Ford F-250 Super Duty 2011 Ford F-350 Super Duty 2012 Ford F-250 Super Duty 2012 Ford F-350 Super Duty 2013 Ford F-250 Super Duty 2013 Ford F-350 Super Duty 2014 Ford F-250 Super Duty 2014 Ford F-350 Super Duty 2015 Ford F-250 Super Duty 2015 Ford F-350 Super Duty 2016 Ford F-250 Super Duty 2016 Ford F-350 Super Duty
