Ford Suspension Lift Kit - Front and Rear - ICON Vehicle Dynamics - K62594L

SUSPENSION SYSTEM
K62594L
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Tires: 35" x 12.
50" (37" x 12.
50" tires may fit but fender trimming and modifications will be required.
)
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 5” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.
25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.
25” Backspace / 6mm Offset
APPLICATION NOTE #119: Rare Cases Require A 2.
6 Degree Alignment Cam On One Side Of Vehicle For Proper Caster Split
APPLICATION NOTE #151: Fits Single Rear Wheel Models Only
APPLICATION NOTE #156: Springs Are Rated For Gasoline Engines
APPLICATION NOTE #157: Lift Heights Based On 4WD Crew Cab Gas
TECH NOTE: Will not fit 2024 models
TECH NOTE: Replaces OE rear blocks for.
5" of rear lift over stock on F-250.
Lowers F-350 rear ride height by.
5" compared to stock.
TECH NOTE: Compatible with 4WD models only
TECH NOTE: Trucks equipped with Tremor package with have front lift height of 1.
5" over stock
TECH NOTE: Reduction in rear spring rate may reduce accuracy of OnBoard Scales, if equipped
TECH NOTE: Not compatible with F-350 Cab and Chassis models
TECH NOTE: Brake line kit (Part # 61111) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
TECH NOTE: ICON track bar bracket part # 64039 is also recommended to correct bump steer geometry
23 FORD F250/F350 GAS 2.
5" STAGE 4 SUSPENSION SYSTEM W/ EXPANSION PACK
ICON 2.
5” suspension systems lift your Ford Super Duty while improving ride quality and performance.
With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.
The ICON 2.
5” suspension system is a great way to lift your 4WD 2023 Ford F-250/F-350 Super Duty while improving ride quality and performance.
This upgraded Stage 4 system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel.
Also included in this stage is ICON's CDC Valve front and rear shocks, for those desiring an easy way to tune the ride externally with 10 settings, from soft to hard.

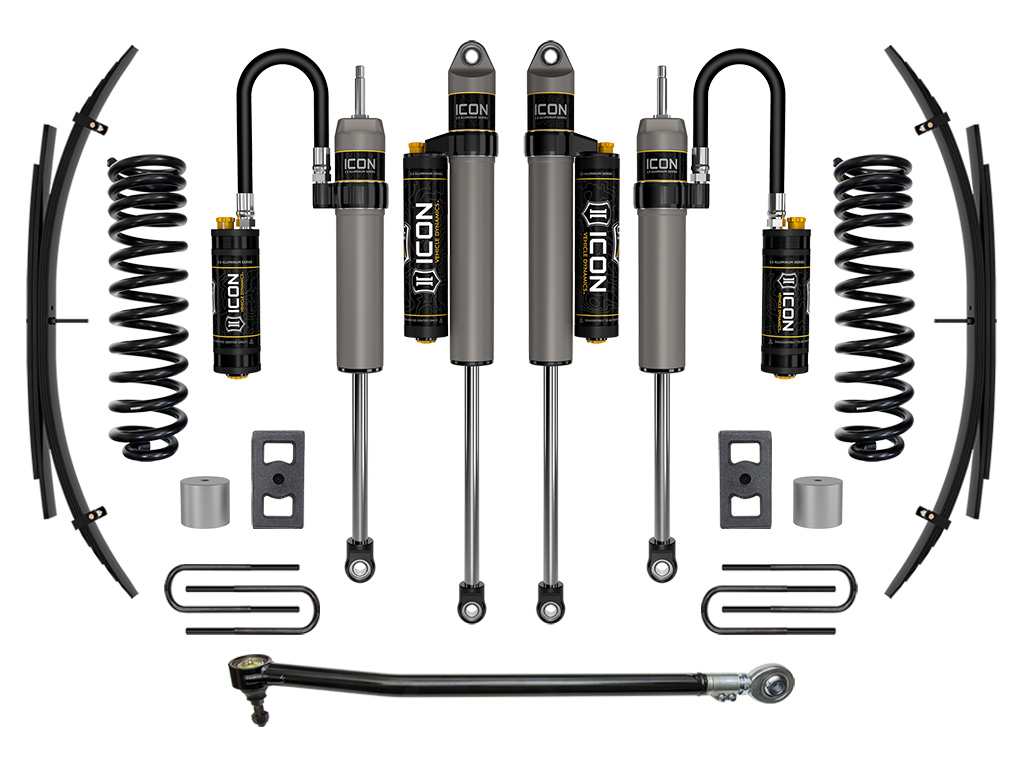

ICON's Stage 4 System is comprised of dual rate coil springs optimized for trucks equipped with gasoline engines, 2.
5 Aluminum Series CDCV remote reservoir front and CDCV piggyback reservoir rear shocks, adjustable front track bar with massive FK rod end, alignment cams for adding caster, and rear leaf spring expansion packs with blocks and U-bolts for a more compliant ride and reduced axle wrap.
ICON 2.
5" remote reservoir and piggyback reservoir shocks ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use.
With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.
ICON engineered dual rate coil springs provide 2.
5” of front lift over stock
Vehicle specific tuned remote reservoir front and piggyback reservoir rear 2.
5 Aluminum Series shocks
Front and rear shocks equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
On-vehicle adjustable track bar for optimum front axle centering and minimal deflection
Application specific alignment cams ensure proper caster alignment
Leaf spring expansion packs and blocks for more compliant ride quality and reduced axle wrap
Increased wheel travel and improved ride quality over stock with no change in towing capacity
Less body-roll than stock
Lifetime guarantee that springs won’t sag or break
No drive shaft modifications required
Shocks are fully rebuildable and re-tunable
100% Bolt-on system - no drilling, cutting or welding necessary for install
ICON 2023 Ford F-250/F-350 Super Duty 4WD Gas, 2.
5" Lift, Stage 4 Suspension System w/ Expansion Packs, K62594L
ICON 2023 Ford F-250/F-350 Super Duty 4WD Gas, 2.
5" Lift, Stage 4 Suspension System w/ Expansion Packs
ICON 23 FORD F250/F350 GAS 2.
5" STAGE 4 SUSPENSION SYSTEM W/ EXPANSION PACK.

Detailed Fitment Results
Year Make Model Submodel Fitment Notes 2023 Ford F-250 Super Duty XL Use with Extended Brake Line Kit Part Number 61111 2023 Ford F-250 Super Duty XLT Use with Extended Brake Line Kit Part Number 61111 2023 Ford F-250 Super Duty Lariat Use with Extended Brake Line Kit Part Number 61111 2023 Ford F-250 Super Duty King Ranch Use with Extended Brake Line Kit Part Number 61111 2023 Ford F-250 Super Duty Platinum Use with Extended Brake Line Kit Part Number 61111 2023 Ford F-350 Super Duty XL Lowers Rear .5 in
Use with Extended Brake Line Kit Part Number 61111 2023 Ford F-350 Super Duty XLT Lowers Rear .5 in
Use with Extended Brake Line Kit Part Number 61111 2023 Ford F-350 Super Duty Lariat Lowers Rear .5 in
Use with Extended Brake Line Kit Part Number 61111 2023 Ford F-350 Super Duty King Ranch Lowers Rear .5 in
Use with Extended Brake Line Kit Part Number 61111 2023 Ford F-350 Super Duty Platinum Lowers Rear .5 in
Use with Extended Brake Line Kit Part Number 61111
