Ford Suspension Lift Kit - ICON Vehicle Dynamics - K62575

SUSPENSION SYSTEM
K62575
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 5.
00” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.
25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.
25” Backspace / 6mm Offset
Recommended Aftermarket Tires: 35" x 12.
50" (Larger tires may fit but fender trimming and modifications will be required.
)
APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
APPLICATION NOTE #55: Shocks Are Fully Serviceable.
Coilover Heights Indicated Are For A Stock Equipped Vehicle
APPLICATION NOTE #151: Fits Single Rear Wheel Models Only
TECH NOTE: Replaces OE rear blocks for.
5" of rear lift over stock on F-250.
Lowers F-350 rear ride height by.
5" compared to stock.
TECH NOTE: Not compatible with F-350 Cab and Chassis models
TECH NOTE: ICON track bar bracket part # 64039 is also recommended to correct bump steer geometry
08-10 FORD F250/F350 2.
5" STAGE 5 SUSPENSION SYSTEM W EXPANSION PACK
ICON 2.
5” suspension systems lift your Ford Super Duty while improving ride quality and performance.
With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.
The ICON 2.
5” suspension system is a great way to lift your 4WD 2008-2010 Ford F-250/F-350 Super Duty while improving ride quality and performance.
This upgraded Stage 5 system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel.
Also included in this stage is ICON's CDC Valve front and rear shocks, for those desiring an easy way to tune the ride externally with 10 settings, from soft to hard.

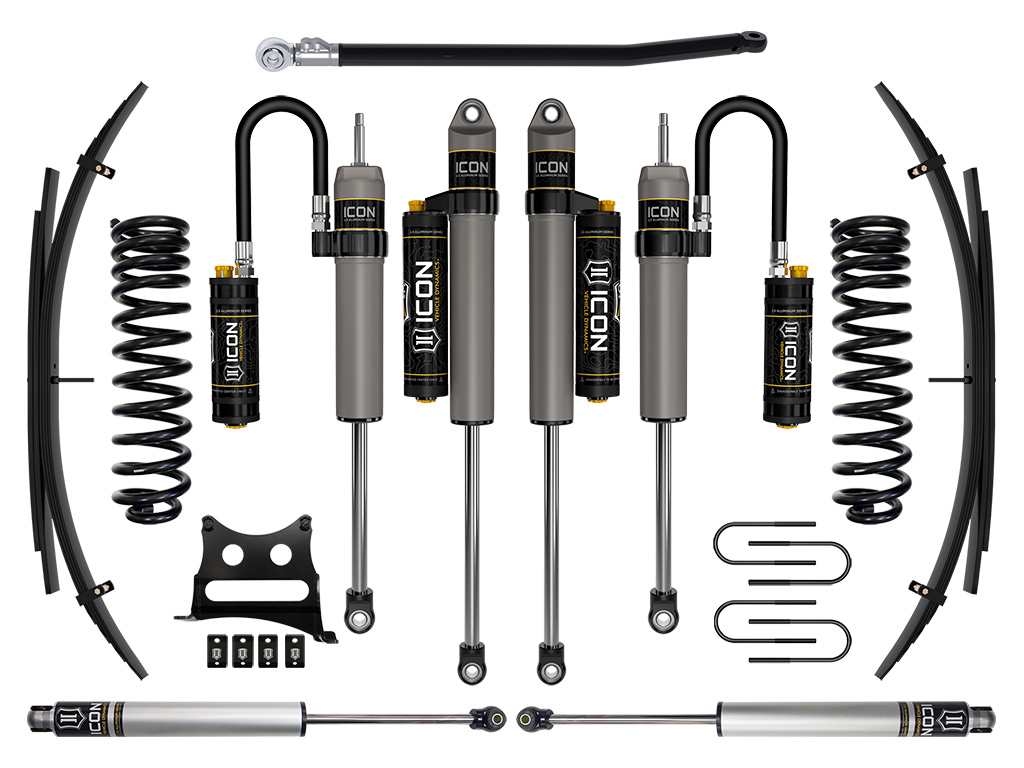

ICON's Stage 5 System is comprised of dual rate coil springs, 2.
5 Aluminum Series CDCV remote reservoir front and CDCV piggyback reservoir rear shocks, adjustable front track bar with massive FK rod end, alignment cams for adding caster, dual steering stabilizer kit with ICON 2.
0 Aluminum Series stabilizers, and rear leaf spring expansion packs with blocks and U-bolts for a more compliant ride and reduced axle wrap.
ICON 2.
5" remote reservoir and piggyback reservoir shocks ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use.
With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.
ICON engineered dual rate coil springs provide 2.
5” of front lift over stock
Match tuned remote reservoir front and piggyback reservoir rear 2.
5 Aluminum Series shocks
Front and rear equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
Application specific alignment Cams ensure proper caster alignment
On-vehicle adjustable track bar for optimum front axle centering and minimal deflection
Dual steering stabilizer kit for smooth wheel control while driving
Leaf spring expansion packs and blocks for more compliant ride quality and reduced axle wrap
Increased wheel travel and ride quality over stock with no change in towing capacity
Less body-roll than stock
Lifetime guarantee that springs won’t sag or break
No drive shaft modifications required
100% Bolt-on system - no drilling, cutting or welding necessary for install
ICON 2008-2010 Ford F-250/F-350 Super Duty 4WD Diesel, 2.
5" Lift, Stage 5 Suspension System w/ Expansion Packs, K62575
ICON 2008-2010 Ford F-250/F-350 Super Duty 4WD Diesel, 2.
5" Lift, Stage 5 Suspension System w/ Expansion Packs
ICON 08-10 FORD F250/F350 2.
5" STAGE 5 SUSPENSION SYSTEM W EXPANSION PACK.

Detailed Fitment Results
Year Make Model Fitment Notes 2008 Ford F-250 Super Duty 2008 Ford F-350 Super Duty Lowers Rear .5 in 2009 Ford F-250 Super Duty 2009 Ford F-350 Super Duty Lowers Rear .5 in 2010 Ford F-250 Super Duty 2010 Ford F-350 Super Duty Lowers Rear .5 in
