Ford Suspension Lift Kit - Front and Rear - ICON Vehicle Dynamics - K62571

SUSPENSION SYSTEM
K62571
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 5.
00” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.
25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.
25” Backspace / 6mm Offset
Recommended Aftermarket Tires: 35" x 12.
50" (Larger tires may fit but fender trimming and modifications will be required.
)
APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
APPLICATION NOTE #30: An Adjustable Track Bar May Be Needed To Realign The Axle From Left To Right, Or To Add Additional Strength
APPLICATION NOTE #55: Shocks Are Fully Serviceable.
Coilover Heights Indicated Are For A Stock Equipped Vehicle
APPLICATION NOTE #151: Fits Single Rear Wheel Models Only
TECH NOTE: Replaces OE rear blocks for.
5" of rear lift over stock on F-250.
Lowers F-350 rear ride height by.
5" compared to stock.
TECH NOTE: ICON track bar bracket part # 64039 is also recommended to correct bump steer geometry
TECH NOTE: Not compatible with F-350 Cab and Chassis models
08-10 FORD F250/F350 2.
5" STAGE 1 SUSPENSION SYSTEM W EXPANSION PACK
ICON 2.
5” suspension systems lift your Ford Super Duty while improving ride quality and performance.
With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.
The ICON 2.
5” suspension system is a great way to lift your 4WD 2008-2010 Ford F-250/F-350 Super Duty while improving ride quality and performance.
This entry level system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel.

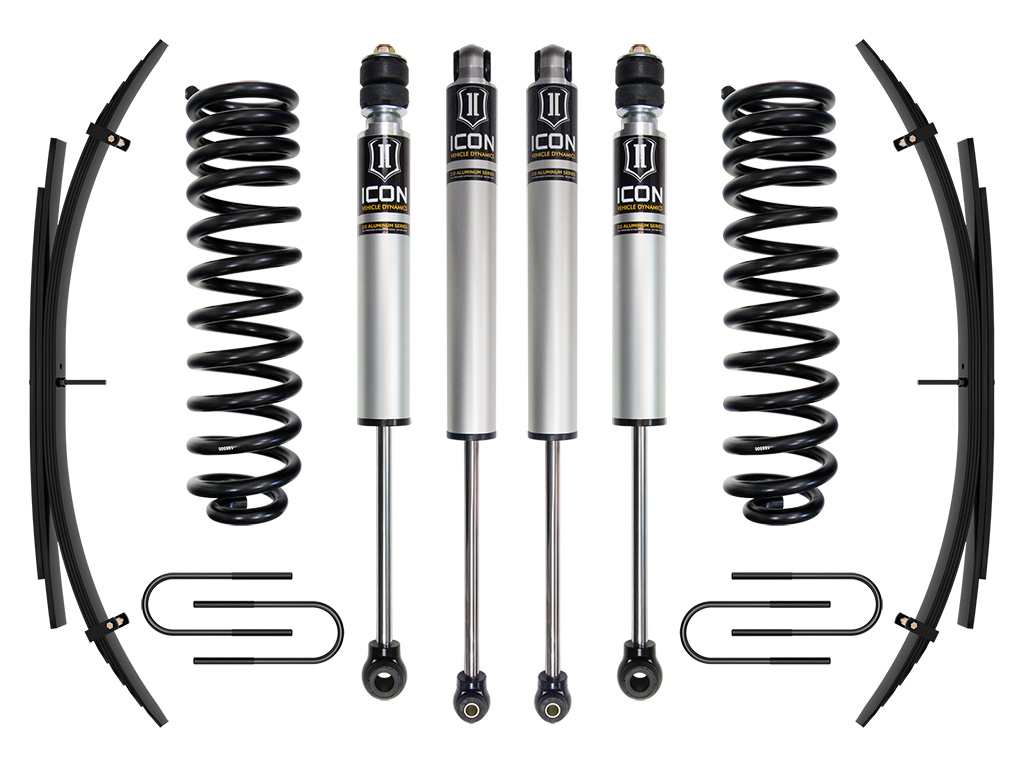

ICON's Stage 1 System is comprised of dual rate coil springs, alignment cams for adding caster, rear leaf spring expansion packs with blocks and U-bolts for a more compliant ride and reduced axle wrap, and ICON 2.
0 Aluminum Series internal reservoir shocks front and rear.
With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.
ICON engineered dual rate coil springs provide 2.
5” of front lift over stock
Match tuned internal reservoir 2.
0 Aluminum Series shocks
Application specific alignment Cams ensure proper caster alignment
Leaf spring expansion packs and blocks for more compliant ride quality and reduced axle wrap
Increased wheel travel and ride quality over stock with no change in towing capacity
Less body-roll than stock
Lifetime guarantee that springs won’t sag or break
No drive shaft modifications required
100% Bolt-on system - no drilling, cutting or welding necessary for install
ICON 2008-2010 Ford F-250/F-350 Super Duty 4WD Diesel, 2.
5" Lift, Stage 1 Suspension System w/ Expansion Packs, K62571
ICON 2008-2010 Ford F-250/F-350 Super Duty 4WD Diesel, 2.
5" Lift, Stage 1 Suspension System w/ Expansion Packs
ICON 08-10 FORD F250/F350 2.
5" STAGE 1 SUSPENSION SYSTEM W EXPANSION PACK.

Detailed Fitment Results
Year Make Model Fitment Notes 2008 Ford F-250 Super Duty 2008 Ford F-350 Super Duty Lowers Rear .5 in 2009 Ford F-250 Super Duty 2009 Ford F-350 Super Duty Lowers Rear .5 in 2010 Ford F-250 Super Duty 2010 Ford F-350 Super Duty Lowers Rear .5 in
