Ford Suspension Lift Kit - ICON Vehicle Dynamics - K62565L

SUSPENSION SYSTEM
K62565L
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 5” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.
25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.
25” Backspace / 6mm Offset
Recommended Aftermarket Tires: 35" x 12.
50" (37" x 12.
50" tires may fit but fender trimming and modifications will be required.
)
APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
APPLICATION NOTE #115: Lift Heights Based On 4WD Crew Cab Diesel
APPLICATION NOTE #119: Rare Cases Require A 2.
6 Degree Alignment Cam On One Side Of Vehicle For Proper Caster Split.
APPLICATION NOTE #151: Fits Single Rear Wheel Models Only
TECH NOTE: Will not fit 2024 models
TECH NOTE: Trucks equipped with Tremor package with have front lift height of 1.
5" over stock
TECH NOTE: Reduction in rear spring rate may reduce accuracy of OnBoard Scales, if equipped
TECH NOTE: Not compatible with F-350 Cab and Chassis models
TECH NOTE: Brake line kit (Part # 61111) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
TECH NOTE: ICON track bar bracket part # 64039 is also recommended to correct bump steer geometry
TECH NOTE: Replaces OE rear blocks for.
5" of rear lift over stock on F-250.
Lowers F-350 rear ride height by.
5" compared to stock.
23 FORD F250/F350 DIESEL 2.
5" STAGE 5 SUSPENSION SYSTEM W/ EXPANSION PACKS
ICON 2.
5” suspension systems lift your Ford Super Duty while improving ride quality and performance.
With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.
This ICON Vehicle Dynamics 2.
5” suspension system is a great way to lift your 4WD 2023 Ford F-250/F-350 Super Duty while drastically improving ride quality and performance.
The Stage 5 system is perfect for on-road and off-road use including towing, job site duty and general off-road adventure.

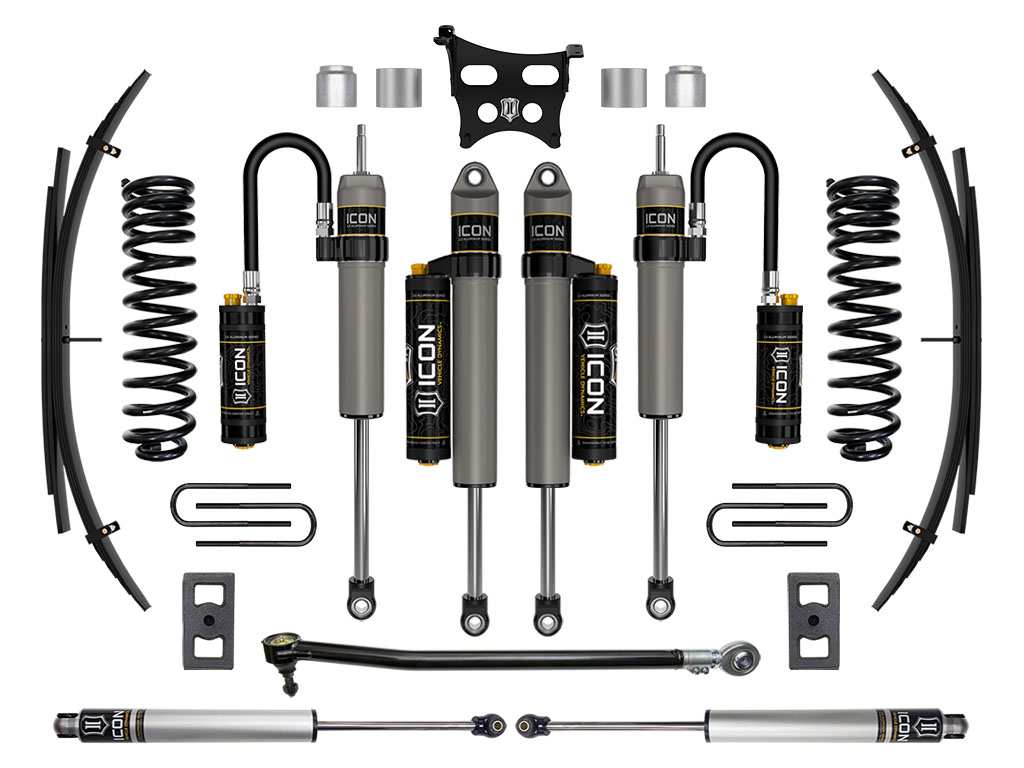

ICON's Stage 5 System is comprised of dual rate coil springs optimized for trucks equipped with diesel engines, dual steering stabilizer kit with ICON 2.
0 Aluminum Series stabilizers, on-vehicle adjustable front track bar, rear leaf spring expansion packs with blocks and U-bolts for a more compliant ride and reduced axle wrap, and ICON 2.
5 Aluminum Series CDCV remote reservoir front and CDCV piggyback reservoir rear shocks, for those desiring an easy way to tune the ride externally with 10 settings, from soft to hard.
With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.
ICON engineered dual rate coil springs provide 2.
5” of front lift over stock
Vehicle specific tuned piggyback reservoir 2.
5 Aluminum Series shocks
Front and rear shocks equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
Dual steering stabilizer kit for smooth wheel control while driving
Leaf spring expansion packs and blocks for more compliant ride quality and reduced axle wrap
Increased wheel travel and improved ride quality over stock with no change in towing capacity
Adjustable track bar ensures proper axle placement and improves handling
Less body-roll than stock
Lifetime guarantee that springs won’t sag or break
No drive shaft modifications required
Shocks are fully rebuildable and re-tunable
100% Bolt-on system - no drilling, cutting or welding necessary for install
ICON 2023 Ford F-250/F-350 Super Duty 4WD Diesel, 2.
5" Lift, Stage 5 Suspension System w/ Expansion Packs, K62565L
ICON 2023 Ford F-250/F-350 Super Duty 4WD Diesel, 2.
5" Lift, Stage 5 Suspension System w/ Expansion Packs
ICON 23 FORD F250/F350 DIESEL 2.
5" STAGE 5 SUSPENSION SYSTEM W/ EXPANSION PACKS.

Detailed Fitment Results
Year Make Model Submodel Fitment Notes 2023 Ford F-250 Super Duty XL Use with Extended Brake Line Kit Part Number 61111 2023 Ford F-250 Super Duty XLT Use with Extended Brake Line Kit Part Number 61111 2023 Ford F-250 Super Duty Lariat Use with Extended Brake Line Kit Part Number 61111 2023 Ford F-250 Super Duty King Ranch Use with Extended Brake Line Kit Part Number 61111 2023 Ford F-250 Super Duty Limited Use with Extended Brake Line Kit Part Number 61111 2023 Ford F-250 Super Duty Platinum Use with Extended Brake Line Kit Part Number 61111 2023 Ford F-350 Super Duty XL Lowers Rear .5 in
Use with Extended Brake Line Kit Part Number 61111 2023 Ford F-350 Super Duty XLT Lowers Rear .5 in
Use with Extended Brake Line Kit Part Number 61111 2023 Ford F-350 Super Duty Lariat Lowers Rear .5 in
Use with Extended Brake Line Kit Part Number 61111 2023 Ford F-350 Super Duty King Ranch Lowers Rear .5 in
Use with Extended Brake Line Kit Part Number 61111 2023 Ford F-350 Super Duty Limited Lowers Rear .5 in
Use with Extended Brake Line Kit Part Number 61111 2023 Ford F-350 Super Duty Platinum Lowers Rear .5 in
Use with Extended Brake Line Kit Part Number 61111
