Ford Suspension Lift Kit - Front and Rear - ICON Vehicle Dynamics - K62525

SUSPENSION SYSTEM
K62525
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 5” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.
25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.
25” Backspace / 6mm Offset
Recommended Aftermarket Tires: 35" x 12.
50" (Larger tires may fit but fender trimming and modifications will be required.
)
APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
APPLICATION NOTE #115: Lift Heights Based On 4WD Crew Cab Diesel
APPLICATION NOTE #119: Rare Cases Require A 2.
6 Degree Alignment Cam On One Side Of Vehicle For Proper Caster Split
TECH NOTE: Trucks equipped with Tremor package with have front lift height of 1.
5" over stock
TECH NOTE: Not compatible with F-350 Cab and Chassis models
TECH NOTE: Brake line kit (Part # 61111) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
TECH NOTE: ICON track bar bracket part # 64039 is also recommended to correct bump steer geometry
TECH NOTE: Included rear shocks are compatible with 0-3" of rear lift over stock
20-22 FORD F250/F350 2.
5" STAGE 5 SUSPENSION SYSTEM
2020-2022 FORD SUPER DUTY 2.
5" LIFT STAGE 5 SUSPENSION SYSTEM
The 2020-2022 Ford Super Duty trucks sit at a lower ride height than 2017-2019 models, and although many of the 2017-2019 components will physically fit 2020-2022 models, the resulting ride height is often taller than desired.
So, engineers at ICON designed new progressive rate coil springs that achieve the correct advertised lift heights while still retaining the great ride quality, predictability, and performance that our Super Duty systems are known for.
This ICON Vehicle Dynamics 2.
5” suspension system is the best way to level your 4WD 2020-2022 Ford F-250/F-350 Super Duty while drastically improving ride quality and performance.
The Stage 5 system is perfect for on-road and off-road use including towing, job site duty, and hardcore off-road adventure.
This Stage 5 System combines dual rate coil springs optimized for trucks equipped with diesel engines, alignment cams, CDC Valve 2.
5 Aluminum Series front remote reservoir and rear piggyback reservoir shocks, an all-new adjustable track bar designed specifically for the 2017-2022 Super Duty, and ICON's dual opposing 2.
0 Aluminum Series steering stabilizer kit for the ultimate in on-road comfort and off-road performance.
With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can be rest assured you have the best suspension solution on the market.
Fits 2020-2022 F-250 / F-350 4WD diesel applications
Lifetime guarantee against coil spring breakage or sag
Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
Approximately 25% increased front wheel travel over stock
ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
ICON shocks feature vehicle specific tune for superior performance and ride quality
ICON CDC Valve allows quick and easy end user compression adjustability
Shocks are fully rebuildable and revalvable
Hard anodized, corrosion resistant, one-piece impact extruded aluminum shock bodies with 7/8" shafts (2.
5 Aluminum Series Shocks)
FK Rod End bearings provide extended longevity and minimal deflection

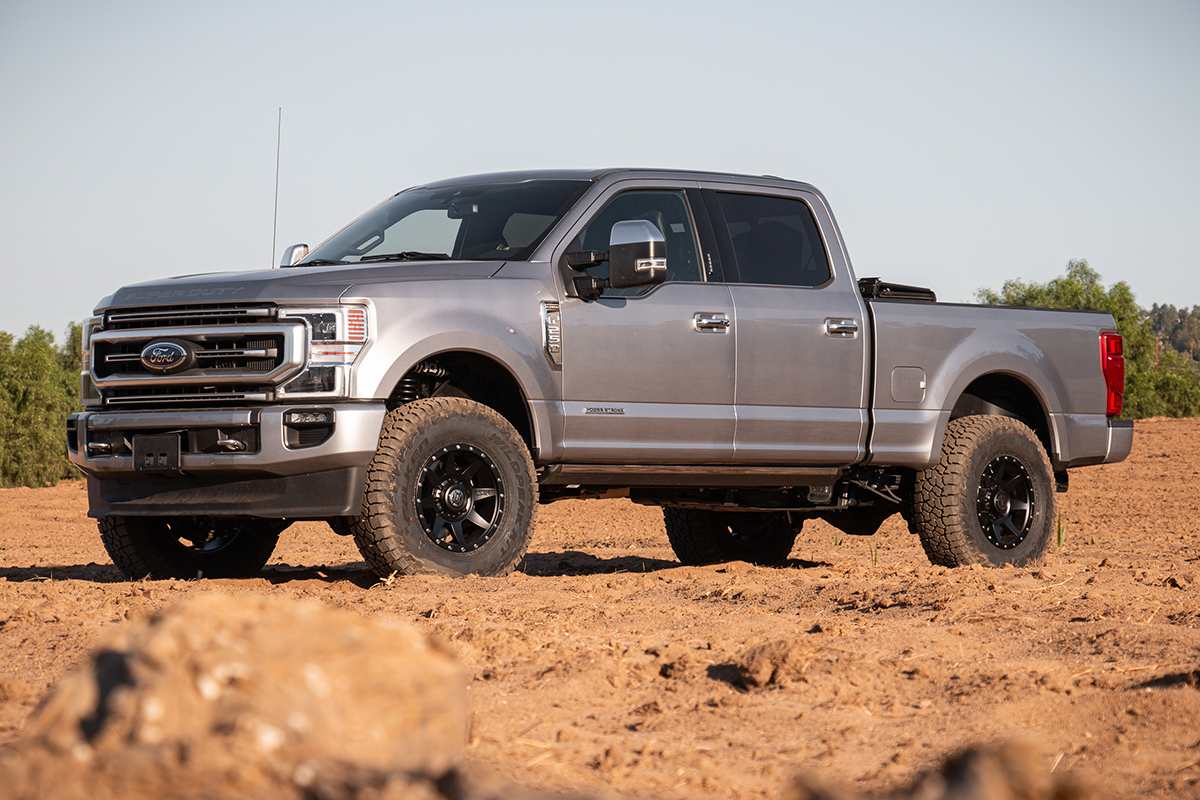

ICON 2020-2022 Ford F-250/F-350 Super Duty 4WD Diesel, 2.
5" Lift, Stage 5 Suspension System, K62525
ICON 2020-2022 Ford F-250/F-350 Super Duty 4WD Diesel, 2.
5" Lift, Stage 5 Suspension System
ICON 20-22 FORD F250/F350 2.
5" STAGE 5 SUSPENSION SYSTEM.

Detailed Fitment Results
Year Make Model Submodel Fitment Notes 2020 Ford F-250 Super Duty XL Use with Extended Brake Line Kit Part Number 61111 2020 Ford F-250 Super Duty Lariat Use with Extended Brake Line Kit Part Number 61111 2020 Ford F-250 Super Duty Limited Use with Extended Brake Line Kit Part Number 61111 2020 Ford F-250 Super Duty King Ranch Use with Extended Brake Line Kit Part Number 61111 2020 Ford F-250 Super Duty Platinum Use with Extended Brake Line Kit Part Number 61111 2020 Ford F-250 Super Duty XLT Use with Extended Brake Line Kit Part Number 61111 2020 Ford F-350 Super Duty XL Use with Extended Brake Line Kit Part Number 61111 2020 Ford F-350 Super Duty Lariat Use with Extended Brake Line Kit Part Number 61111 2020 Ford F-350 Super Duty Limited Use with Extended Brake Line Kit Part Number 61111 2020 Ford F-350 Super Duty King Ranch Use with Extended Brake Line Kit Part Number 61111 2020 Ford F-350 Super Duty Platinum Use with Extended Brake Line Kit Part Number 61111 2020 Ford F-350 Super Duty XLT Use with Extended Brake Line Kit Part Number 61111 2021 Ford F-250 Super Duty XL Use with Extended Brake Line Kit Part Number 61111 2021 Ford F-250 Super Duty Lariat Use with Extended Brake Line Kit Part Number 61111 2021 Ford F-250 Super Duty Limited Use with Extended Brake Line Kit Part Number 61111 2021 Ford F-250 Super Duty King Ranch Use with Extended Brake Line Kit Part Number 61111 2021 Ford F-250 Super Duty Platinum Use with Extended Brake Line Kit Part Number 61111 2021 Ford F-250 Super Duty XLT Use with Extended Brake Line Kit Part Number 61111 2021 Ford F-350 Super Duty XL Use with Extended Brake Line Kit Part Number 61111 2021 Ford F-350 Super Duty Lariat Use with Extended Brake Line Kit Part Number 61111 2021 Ford F-350 Super Duty Limited Use with Extended Brake Line Kit Part Number 61111 2021 Ford F-350 Super Duty King Ranch Use with Extended Brake Line Kit Part Number 61111 2021 Ford F-350 Super Duty Platinum Use with Extended Brake Line Kit Part Number 61111 2021 Ford F-350 Super Duty XLT Use with Extended Brake Line Kit Part Number 61111 2022 Ford F-250 Super Duty XL Use with Extended Brake Line Kit Part Number 61111 2022 Ford F-250 Super Duty Lariat Use with Extended Brake Line Kit P…
