Ford Suspension Lift Kit - Front and Rear - ICON Vehicle Dynamics - K62522L

SUSPENSION SYSTEM
K62522L
OEM Wheels and Tires Fitment: Not compatible with all available OE wheel/tire combinations.
Aftermarket wheels with lower offset/less backspace recommended.
Recommended Aftermarket Tires: 35" x 12.
50" (37" x 12.
50" tires may fit but fender trimming and modifications will be required.
)
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 5” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.
25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.
25” Backspace / 6mm Offset
APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
APPLICATION NOTE #30: An Adjustable Track Bar May Be Needed To Realign The Axle From Left To Right, Or To Add Additional Strength
APPLICATION NOTE #115: Lift Heights Based On 4WD Crew Cab Diesel
APPLICATION NOTE #119: Rare Cases Require A 2.
6 Degree Alignment Cam On One Side Of Vehicle For Proper Caster Split
APPLICATION NOTE #151: Fits Single Rear Wheel Models Only
TECH NOTE: Replaces OE rear blocks for.
5" of rear lift over stock on F-250.
Lowers F-350 rear ride height by.
5" compared to stock.
TECH NOTE: Compatible with 4WD models only
TECH NOTE: Trucks equipped with Tremor package with have front lift height of 1.
5" over stock
TECH NOTE: Not compatible with F-350 Cab and Chassis models
TECH NOTE: Brake line kit (Part # 61111) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
TECH NOTE: ICON track bar bracket part # 64039 is also recommended to correct bump steer geometry
20-22 FORD F250/F350 2.
5" STAGE 2 SUSPENSION SYSTEM W EXPANSION PACK
ICON 2.
5” suspension systems lift your Ford Super Duty while improving ride quality and performance.
With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.
The 2020-2022 Ford Super Duty trucks sit at a lower ride height than 2017-2019 models, and although many of the 2017-2019 components will physically fit 2020-2022 models, the resulting ride height is often taller than desired.
So, engineers at ICON designed new progressive rate coil springs that achieve the correct advertised lift heights while still retaining the great ride quality, predictability, and performance that our Super Duty systems are known for.
The ICON 2.
5” suspension system is a great way to lift your 4WD 2020-2022 Ford F-250/F-350 Super Duty while improving ride quality and performance.
This upgraded Stage 2 system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel.
ICON's Stage 2 System is comprised of dual rate coil springs optimized for trucks equipped with diesel engines, 2.
5 Aluminum Series piggyback reservoir front and rear shocks, alignment cams for adding caster, and rear leaf spring expansion packs with blocks and U-bolts for a more compliant ride and reduced axle wrap.
ICON 2.
5" piggyback reservoir shocks ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use.
With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.
ICON engineered dual rate coil springs provide 2.
5” of front lift over stock
Vehicle specific tuned piggyback reservoir 2.
5 Aluminum Series shocks
Application specific alignment cams ensure proper caster alignment
Leaf spring expansion packs and blocks for more compliant ride quality and reduced axle wrap
Increased wheel travel and improved ride quality over stock with no change in towing capacity
Less body-roll than stock
Lifetime guarantee that springs won’t sag or break
No drive shaft modifications required
Shocks are fully rebuildable and re-tunable
100% Bolt-on system - no drilling, cutting or welding necessary for install

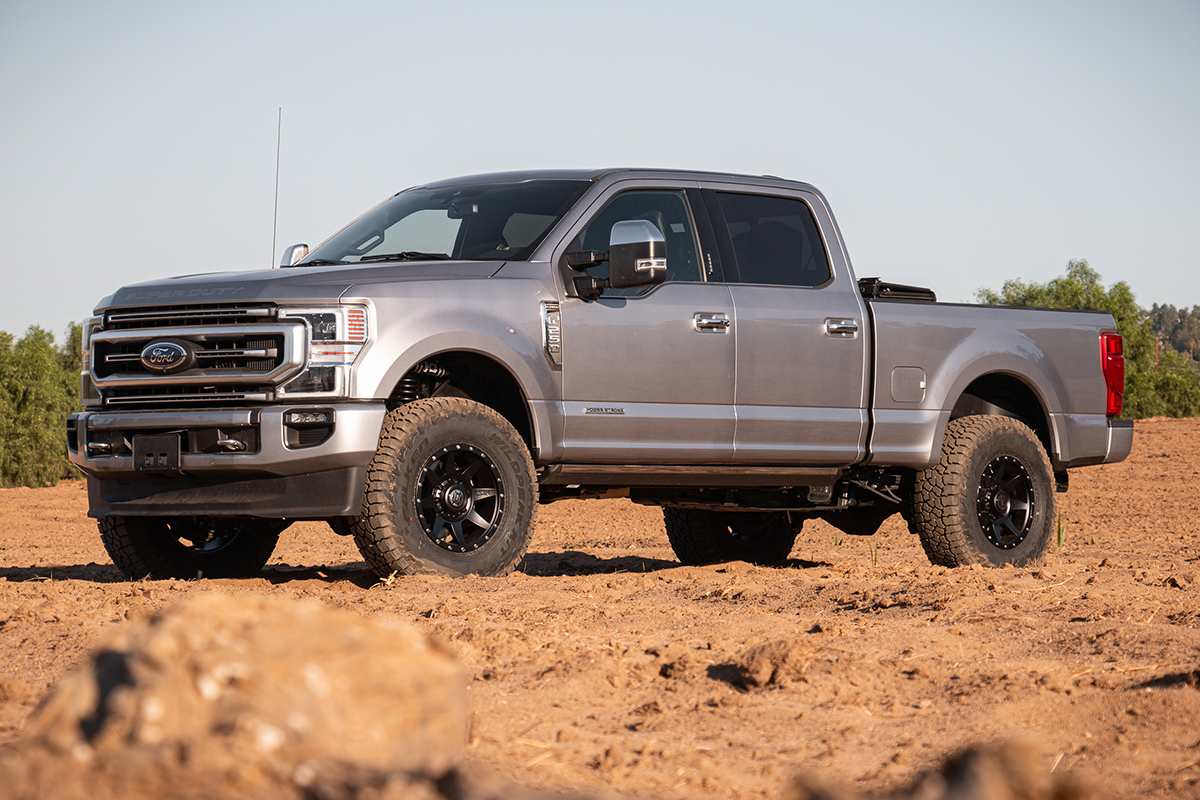

ICON 2020-2023 Ford F-250/F-350 Super Duty 4WD Diesel, 2.
5" Lift, Stage 2 Suspension System w/ Expansion Packs, K62522L
ICON 2020-2023 Ford F-250/F-350 Super Duty 4WD Diesel, 2.
5" Lift, Stage 2 Suspension System w/ Expansion Packs
ICON 20-22 FORD F250/F350 2.
5" STAGE 2 SUSPENSION SYSTEM W EXPANSION PACK.

Detailed Fitment Results
Year Make Model Submodel Fitment Notes 2020 Ford F-250 Super Duty XL Use with Extended Brake Line Kit Part Number 61111 2020 Ford F-250 Super Duty Lariat Use with Extended Brake Line Kit Part Number 61111 2020 Ford F-250 Super Duty King Ranch Use with Extended Brake Line Kit Part Number 61111 2020 Ford F-250 Super Duty Limited Use with Extended Brake Line Kit Part Number 61111 2020 Ford F-250 Super Duty Platinum Use with Extended Brake Line Kit Part Number 61111 2020 Ford F-250 Super Duty XLT Use with Extended Brake Line Kit Part Number 61111 2020 Ford F-350 Super Duty XL Lowers Rear .5 in
Use with Extended Brake Line Kit Part Number 61111 2020 Ford F-350 Super Duty Lariat Lowers Rear .5 in
Use with Extended Brake Line Kit Part Number 61111 2020 Ford F-350 Super Duty King Ranch Lowers Rear .5 in
Use with Extended Brake Line Kit Part Number 61111 2020 Ford F-350 Super Duty Limited Lowers Rear .5 in
Use with Extended Brake Line Kit Part Number 61111 2020 Ford F-350 Super Duty Platinum Lowers Rear .5 in
Use with Extended Brake Line Kit Part Number 61111 2020 Ford F-350 Super Duty XLT Lowers Rear .5 in
Use with Extended Brake Line Kit Part Number 61111 2021 Ford F-250 Super Duty XL Use with Extended Brake Line Kit Part Number 61111 2021 Ford F-250 Super Duty Lariat Use with Extended Brake Line Kit Part Number 61111 2021 Ford F-250 Super Duty King Ranch Use with Extended Brake Line Kit Part Number 61111 2021 Ford F-250 Super Duty Limited Use with Extended Brake Line Kit Part Number 61111 2021 Ford F-250 Super Duty Platinum Use with Extended Brake Lin…
