Ford Suspension Lift Kit - Front and Rear - ICON Vehicle Dynamics - K62522

SUSPENSION SYSTEM
K62522
OEM Wheels and Tires Fitment: Not compatible with all available OE wheel/tire combinations.
Aftermarket wheels with lower offset/less backspace recommended.
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 5” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.
25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.
25” Backspace / 6mm Offset
Recommended Aftermarket Tires: 35" x 12.
50" (Larger tires may fit but fender trimming and modifications will be required.
)
APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
APPLICATION NOTE #30: An Adjustable Track Bar May Be Needed To Realign The Axle From Left To Right, Or To Add Additional Strength
APPLICATION NOTE #115: Lift Heights Based On 4WD Crew Cab Diesel
APPLICATION NOTE #119: Rare Cases Require A 2.
6 Degree Alignment Cam On One Side Of Vehicle For Proper Caster Split
TECH NOTE: Trucks equipped with Tremor package with have front lift height of 1.
5" over stock
TECH NOTE: Not compatible with F-350 Cab and Chassis models
TECH NOTE: ICON track bar bracket part # 64039 is also recommended to correct bump steer geometry
TECH NOTE: Brake line kit (Part # 61111) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
TECH NOTE: Included rear shocks are compatible with 0-3" of rear lift over stock

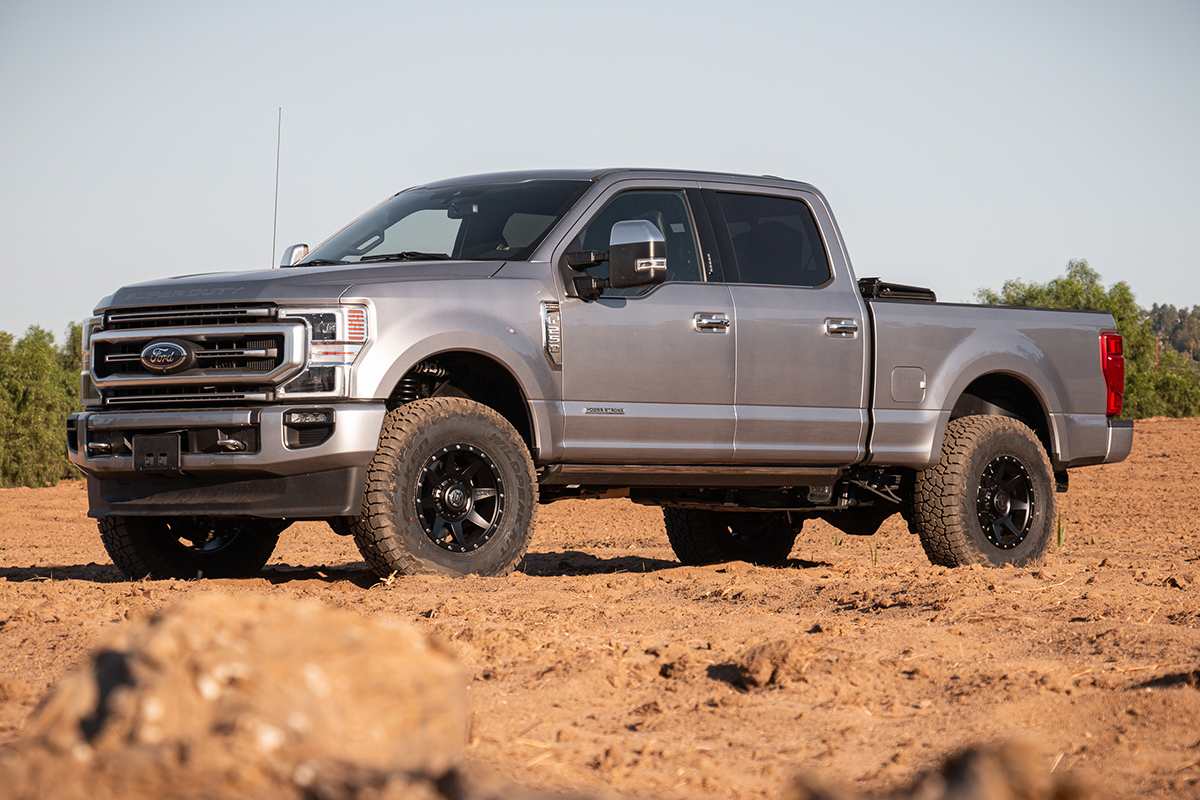

20-22 FORD FORD F250/F350 2.
5" STAGE 2 SUSPENSION SYSTEM
ICON 2.
5” suspension systems lift your Ford Super Duty while improving ride quality and performance.
With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.
The 2020-2022 Ford Super Duty trucks sit at a lower ride height than 2017-2019 models, and although many of the 2017-2019 components will physically fit 2020-2022 models, the resulting ride height is often taller than desired.
So, engineers at ICON designed new progressive rate coil springs that achieve the correct advertised lift heights while still retaining the great ride quality, predictability, and performance that our Super Duty systems are known for.
This ICON Vehicle Dynamics 2.
5” suspension system is a great way to level your 4WD 2020-2022 Ford F-250/F-350 Super Duty while drastically improving ride quality and performance.
The Stage 2 system is perfect for on-road and off-road use including towing, job site duty and general off-road adventure.
ICON's Stage 2 System is comprised of dual rate coil springs, alignment cams, and ICON 2.
5 Aluminum Series front and rear piggyback reservoir shocks.
With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.
Fits 2020-2022 F-250 / F-350 4WD diesel applications
Approximately 25% increased front wheel travel over stock
ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
ICON shocks feature vehicle specific tune for superior performance and ride quality
Shocks are fully rebuildable and revalvable
Hard anodized, corrosion resistant, one-piece impact extruded aluminum shock bodies with 7/8" shafts
FK Rod End bearings provide extended longevity and minimal deflection
Lifetime guarantee against coil spring breakage or sag
ICON 2020-2022 Ford F-250/F-350 Super Duty 4WD Diesel, 2.
5" Lift, Stage 2 Suspension System, K62522
ICON 2020-2022 Ford F-250/F-350 Super Duty 4WD Diesel, 2.
5" Lift, Stage 2 Suspension System
ICON 20-22 FORD FORD F250/F350 2.
5" STAGE 2 SUSPENSION SYSTEM.

Detailed Fitment Results
Year Make Model Submodel Fitment Notes 2020 Ford F-250 Super Duty XL Use with Extended Brake Line Kit Part Number 61111 2020 Ford F-250 Super Duty Lariat Use with Extended Brake Line Kit Part Number 61111 2020 Ford F-250 Super Duty King Ranch Use with Extended Brake Line Kit Part Number 61111 2020 Ford F-250 Super Duty Limited Use with Extended Brake Line Kit Part Number 61111 2020 Ford F-250 Super Duty Platinum Use with Extended Brake Line Kit Part Number 61111 2020 Ford F-250 Super Duty XLT Use with Extended Brake Line Kit Part Number 61111 2020 Ford F-350 Super Duty XL Use with Extended Brake Line Kit Part Number 61111 2020 Ford F-350 Super Duty Lariat Use with Extended Brake Line Kit Part Number 61111 2020 Ford F-350 Super Duty King Ranch Use with Extended Brake Line Kit Part Number 61111 2020 Ford F-350 Super Duty Limited Use with Extended Brake Line Kit Part Number 61111 2020 Ford F-350 Super Duty Platinum Use with Extended Brake Line Kit Part Number 61111 2020 Ford F-350 Super Duty XLT Use with Extended Brake Line Kit Part Number 61111 2021 Ford F-250 Super Duty XL Use with Extended Brake Line Kit Part Number 61111 2021 Ford F-250 Super Duty Lariat Use with Extended Brake Line Kit Part Number 61111 2021 Ford F-250 Super Duty King Ranch Use with Extended Brake Line Kit Part Number 61111 2021 Ford F-250 Super Duty Limited Use with Extended Brake Line Kit Part Number 61111 2021 Ford F-250 Super Duty Platinum Use with Extended Brake Line Kit Part Number 61111 2021 Ford F-250 Super Duty XLT Use with Extended Brake Line Kit Part Number 61111 2021 Ford F-350 Super Duty XL Use with Extended Brake Line Kit Part Number 61111 2021 Ford F-350 Super Duty Lariat Use with Extended Brake Line Kit Part Number 61111 2021 Ford F-350 Super Duty King Ranch Use with Extended Brake Line Kit Part Number 61111 2021 Ford F-350 Super Duty Limited Use with Extended Brake Line Kit Part Number 61111 2021 Ford F-350 Super Duty Platinum Use with Extended Brake Line Kit Part Number 61111 2021 Ford F-350 Super Duty XLT Use with Extended Brake Line Kit Part Number 61111 2022 Ford F-250 Super Duty XL Use with Extended Brake Line Kit Part Number 61111 2022 Ford F-250 Super Duty Lariat Use with Extended Brake Line Kit Part Number 61111 2022 Ford…
