Ford Suspension Lift Kit - Front and Rear - ICON Vehicle Dynamics - K62502

SUSPENSION SYSTEM
K62502
OEM Wheels and Tires Fitment: Not compatible with all available OE wheel/tire combinations.
Aftermarket wheels with lower offset/less backspace recommended.
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 5.
00” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.
25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.
25” Backspace / 6mm Offset
Recommended Aftermarket Tires: 35" x 12.
50" (Larger tires may fit but fender trimming and modifications will be required.
)
APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
APPLICATION NOTE #30: An Adjustable Track Bar May Be Needed To Realign The Axle From Left To Right, Or To Add Additional Strength
APPLICATION NOTE #55: Shocks Are Fully Serviceable.
Coilover Heights Indicated Are For A Stock Equipped Vehicle
TECH NOTE: Compatible with 4WD models only
TECH NOTE: 2005-2016 F-250s require 4” rear blocks with 15” U-bolt kit to sit level with 2.
5” lifted front.
ICON block kit part # 194275 and U-bolt kit part # 37003 (2005-2010 models) or part # 67003 (2011-2016 models) are recommended.
TECH NOTE: Not compatible with F-350 Cab and Chassis models
TECH NOTE: ICON track bar bracket part # 64039 is also recommended to correct bump steer geometry on 2008-2016 models
TECH NOTE: Included rear shocks are compatible with 0-3" of rear lift over stock
05-16 FORD F250/F350 2.
5" STAGE 3 SUSPENSION SYSTEM
ICON 2.
5” suspension systems lift your Ford Super Duty while improving ride quality and performance.
With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.
The ICON 2.
5” suspension system is a great way to level your 4WD 2005-2016 Ford F250/350 Super Duty while improving ride quality and performance.
This Stage 3 system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel.

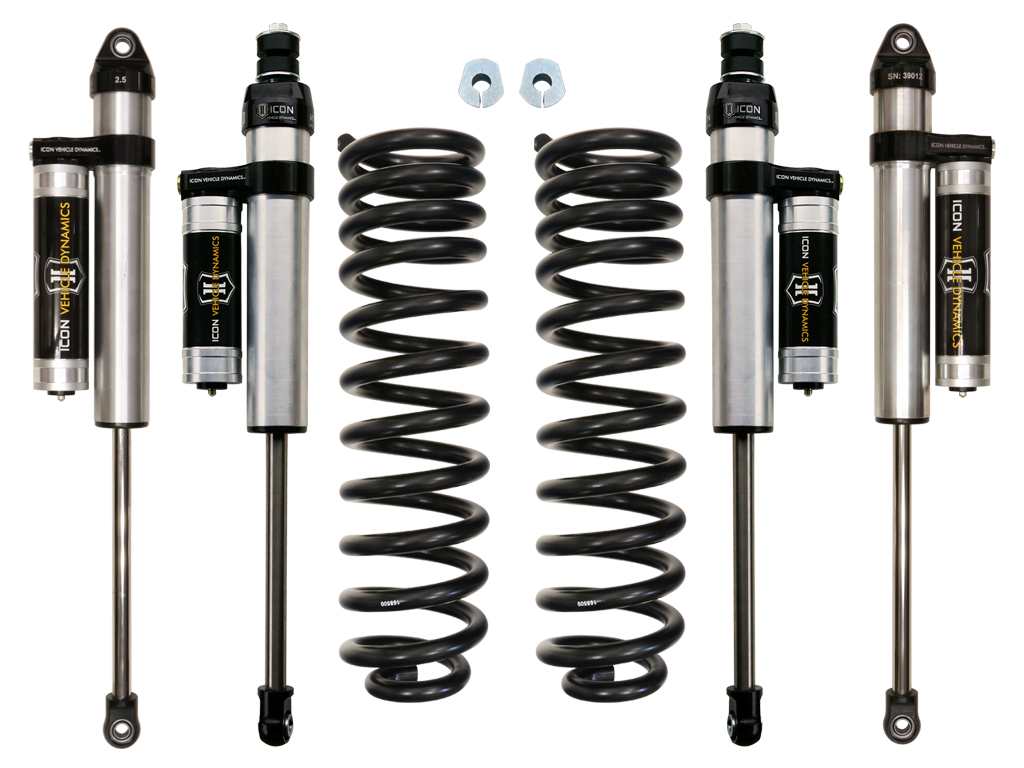

ICON's Stage 3 System is comprised of dual rate coil springs, alignment cams for adding caster, and ICON 2.
5 Aluminum Series piggyback reservoir shocks front and rear.
ICON 2.
5" reservoir shocks ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use.
With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.
For F-250 applications, a 4" block can be used in place of your factory 2" block, in turn leveling the truck from front to rear, allowing use of ICON Rear Shocks.
ICON engineered dual rate coil springs with match tuned performance shocks
Application Specific Alignment Cams ensure proper Caster alignment
Corrosion resistant, one-piece impact extruded aluminum shock bodies with 7/8" shafts
Increased wheel travel and ride quality over stock with no change in towing capacity
Less body-roll than stock
Lifetime guarantee that coil springs won’t sag
No drive shaft modifications required
100% Bolt-on system - no drilling, cutting or welding necessary for install
ICON 2005-2016 Ford F-250/F-350 Super Duty 4WD Diesel, 2.
5" Lift, Stage 3 Suspension System, K62502
ICON 2005-2016 Ford F-250/F-350 Super Duty 4WD Diesel, 2.
5" Lift, Stage 3 Suspension System
ICON 05-16 FORD F250/F350 2.
5" STAGE 3 SUSPENSION SYSTEM.

Detailed Fitment Results
Year Make Model 2005 Ford F-250 Super Duty 2005 Ford F-350 Super Duty 2006 Ford F-250 Super Duty 2006 Ford F-350 Super Duty 2007 Ford F-250 Super Duty 2007 Ford F-350 Super Duty 2008 Ford F-250 Super Duty 2008 Ford F-350 Super Duty 2009 Ford F-250 Super Duty 2009 Ford F-350 Super Duty 2010 Ford F-250 Super Duty 2010 Ford F-350 Super Duty 2011 Ford F-250 Super Duty 2011 Ford F-350 Super Duty 2012 Ford F-250 Super Duty 2012 Ford F-350 Super Duty 2013 Ford F-250 Super Duty 2013 Ford F-350 Super Duty 2014 Ford F-250 Super Duty 2014 Ford F-350 Super Duty 2015 Ford F-250 Super Duty 2015 Ford F-350 Super Duty 2016 Ford F-250 Super Duty 2016 Ford F-350 Super Duty
