23-24 Toyota Sequoia TRD Pro Suspension Lift Kit - ICON Vehicle Dynamics - K53397T

SUSPENSION SYSTEM
K53397T
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 5.
75” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6” Backspace / 25mm Offset
Recommended Aftermarket Tires: 35" x 12.
50" (Minor fender trimming and modifications may be required)
APPLICATION NOTE #55: Shocks are fully serviceable.
Lift heights indicated are for a stock equipped vehicle.
APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle.
Increasing weight of vehicle due to accessories will alter lift range.
APPLICATION NOTE #189: For Sequoia TRD Pro ICON diff drop (part# 55156) is recommended but not required.
If installing ICON diff drop, ICON skid plate spacer kit (part# 55164) is also required.
APPLICATION NOTE #190: Designed for use with stock billet TRD front upper control arms
23-24 SEQUOIA TRD PRO 2.
5" STAGE 7 SUSPENSION SYSTEM TUBULAR

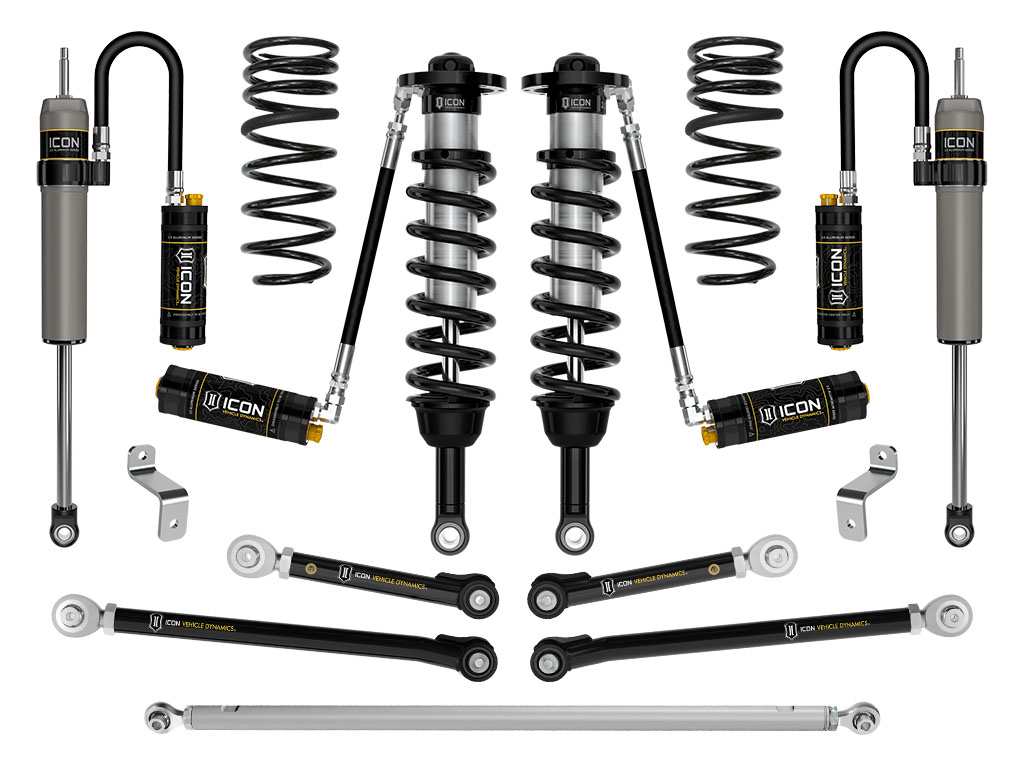

The ICON Stage 7 suspension system for the Sequoia TRD Pro is a full coilover performance suspension system, providing improved performance as well as front/rear-end lift and leveling for a proper stance and fitment of up to 35" tires.
The ICON Vehicle Dynamics Stage 7 complete suspension system for the 2023-2024 Toyota Sequoia TRD Pro is specifically designed to retain the stock billet aluminum front upper control arms found on Sequoia TRD Pro while providing improved on- and off-road performance as well as front-end lift and leveling for a proper stance and fitment of up to 35" tires.
This system features 2.
5 Series remote reservoir coilover shocks with CDCV for the front of the truck along with dual rate coil springs, tubular rear upper and lower links, adjustable billet rear track bar, and our proven 2.
5 Aluminum Series shocks with remote reservoirs and CDCV for the rear.
This Stage 7 system features the 2023-2024 Toyota Sequoia VS 2.
5 Series CDCV remote reservoir front coilovers with a vehicle specific shock length to allow compatibility with the stock front upper control arms found on the Sequoia TRD Pro.
These adjustable coilovers allow up to 1-2.
5” of front lift height adjustability over stock, allowing the use of larger, more aggressive wheel and tire combinations.
ICON’s Vehicle-specific shock length and valving along with the larger 2.
5” shock body and increased piston area over stock components yield the maximum travel possible with the OE front upper control arms along with superior ride quality and suspension performance both on- and off-road.
Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade.
The included ICON CDC Valves are externally adjustable valves that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.
The dual-rate rear coil design provides a softer ride height spring rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance.
Designed for taller rear ride heights, these coil springs yield 2" of rear lift over stock on a Sequoia TRD Pro, allowing for level a stance front to rear.
ICON tubular steel adjustable rear upper and lower links are made from 1-3/4 x.
313 wall DOM tubing and a multi-stage black powder coat finish for corrosion resistance.
These rear link arm kits feature PTFE-lined FK rod ends for increased suspension articulation, reduced deflection, and link arm length adjustability.
Additionally, multi durometer bushings are installed that allow for noise free operation and maximum angularity without the need for periodic greasing and/or other maintenance.
The ICON Billet Rear Adjustable Track Bar helps center the axle of your lifted 2023-2024 Sequoia.
Double adjuster rod end threads allow easy “on-vehicle” fine adjustment of track bar length without requiring removal or disassembly of the track bar.
The track bar is CNC machined from solid 6061 aluminum bar, and anodized to match the look of ICON's billet upper and lower links.
Rounding out the Stage 7 suspension system are 2.
5 Aluminum Series rear remote reservoir shocks specially tailored for the 2023-2024 Toyota Sequoia.
The 2.
5 Aluminum Series shocks’ larger diameter offers outstanding performance off-road and a smooth ride on the street.
Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use.
They also feature a unique internal Bump Zone that when used creates an additional 20% of damping force to help better control hard bottom outs.
Also equipped with CDC Valves, these offer 10 settings of compression damping adjustment from soft to hard.
Their pairing with the ICON V.
S.
2.
5 Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Sequoia.
Vehicle specific design for 2023-2024 Toyota Sequoia TRD Pro
2.
5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
Adjustable front ride heights from 1-2.
5” of front lift over stock
Application specific coilover length allows use with stock Sequoia TRD Pro UCAs
Allows for increased wheel travel without overstressing OE components
All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
Tubular rear upper and lower links improve rear end articulation and allow for pinion angle adjustment
On-vehicle adjustable rear track bar properly centers rear axle while also improving rear suspension performance
2.
5 Aluminum Series rear remote reservoir shocks provide increased performance and balanced tune with coilovers
