23-24 Toyota Sequoia TRD Pro Suspension Lift Kit - ICON Vehicle Dynamics - K53394

SUSPENSION SYSTEM
K53394
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 5.
75” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6” Backspace / 25mm Offset
Recommended Aftermarket Tires: 35" x 12.
50" (Minor fender trimming and modifications may be required)
APPLICATION NOTE #55: Shocks are fully serviceable.
Lift heights indicated are for a stock equipped vehicle.
APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle.
Increasing weight of vehicle due to accessories will alter lift range.
APPLICATION NOTE #189: For Sequoia TRD Pro ICON diff drop (part# 55156) is recommended but not required.
If installing ICON diff drop, ICON skid plate spacer kit (part# 55164) is also required.
APPLICATION NOTE #190: Designed for use with stock billet TRD front upper control arms
23-24 SEQUOIA TRD PRO 2.
5" STAGE 4 SUSPENSION SYSTEM BILLET

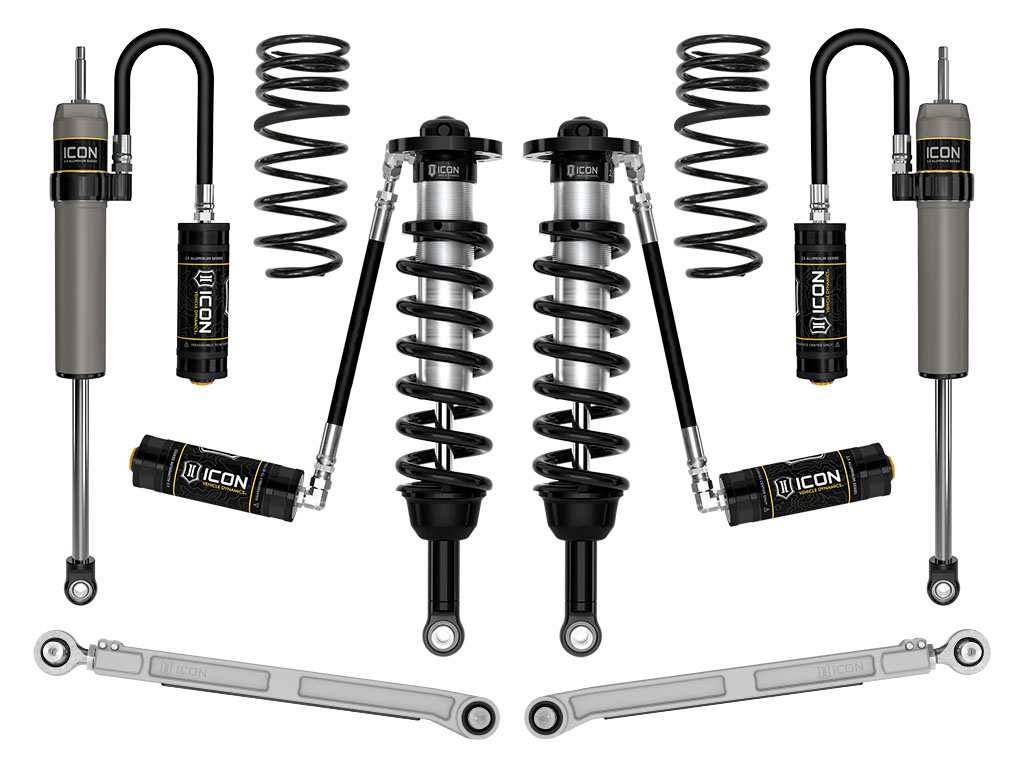

The ICON Stage 4 suspension system for the Sequoia TRD Pro is a full coilover performance suspension system, providing improved performance as well as front/rear-end lift and leveling for a proper stance and fitment of up to 35" tires.
The ICON Vehicle Dynamics Stage 4 complete suspension system for the 2023-2024 Toyota Sequoia TRD Pro is specifically designed to retain the stock billet aluminum front upper control arms found on Sequoia TRD Pro while providing improved on- and off-road performance as well as front-end lift and leveling for a proper stance and fitment of up to 35" tires.
This system features 2.
5 Series remote reservoir coilover shocks for the front of the truck along with dual rate coil springs, billet aluminum rear lower links, and our proven 2.
5 Aluminum Series shocks with remote reservoirs for the rear.
This Stage 4 system features the 2023-2024 Toyota Sequoia VS 2.
5 Series remote reservoir front coilovers with a vehicle specific shock length to allow compatibility with the stock front upper control arms found on the Sequoia TRD Pro.
These adjustable coilovers allow up to 1-2.
5” of front lift height adjustability over stock, allowing the use of larger, more aggressive wheel and tire combinations.
ICON’s Vehicle-specific shock length and valving along with the larger 2.
5” shock body and increased piston area over stock components yield the maximum travel possible with the OE front upper control arms along with superior ride quality and suspension performance both on- and off-road.
Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade.
The dual-rate rear coil design provides a softer ride height spring rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance.
Designed for taller rear ride heights, these coil springs yield 2" of rear lift over stock on a Sequoia TRD Pro, allowing for level a stance front to rear.
ICON billet aluminum adjustable rear lower links are made from CNC machined 6061 aluminum and anodized for corrosion resistance.
This rear lower link arm kit features PTFE-lined FK rod ends for increased suspension articulation, reduced deflection, and on-vehicle link arm length adjustability using ICON’s double adjuster system.
Additionally, multi durometer bushings are installed that allow for noise free operation and maximum angularity without the need for periodic greasing and/or other maintenance.
Rounding out the Stage 4 suspension system are 2.
5 Aluminum Series rear remote reservoir shocks specially tailored for the 2023-2024 Toyota Sequoia.
The 2.
5 Aluminum Series shocks’ larger diameter offers outstanding performance off-road and a smooth ride on the street.
Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use.
They also feature a unique internal Bump Zone that when used creates an additional 20% of damping force to help better control hard bottom outs.
Their pairing with the ICON V.
S.
2.
5 Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Sequoia.
Vehicle specific design for 2023-2024 Toyota Sequoia TRD Pro
2.
5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
Adjustable front ride heights from 1-2.
5” of front lift over stock
Application specific coilover length allows use with stock Sequoia TRD Pro UCAs
Allows for increased wheel travel without overstressing OE components
Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
Billet rear lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
2.
5 Aluminum Series rear remote reservoir shocks provide increased performance and balanced tune with coilovers
All ICON shock absorbers are fully rebuildable and re-tunable
ICON 2023-2024 Toyota Sequoia TRD Pro, 1-2.
5" Lift, Stage 4 2.
5 Suspension System, Billet, K53394
ICON 2023-2024 Toyota Sequoia TRD Pro, 1-2.
5" Lift, Stage 4 2.
5 Suspension System, Billet
ICON 23-24 SEQUOIA TRD PRO 2.
5" STAGE 4 SUSPENSION SYSTEM BILLET.

Detailed Fitment Results
Year Make Model Submodel 2023 Toyota Sequoia TRD Pro 2024 Toyota Sequoia TRD Pro
