23-24 Toyota Sequoia TRD Pro Suspension Lift Kit - ICON Vehicle Dynamics - K53391

SUSPENSION SYSTEM
K53391
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 5.
75” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6” Backspace / 25mm Offset
Recommended Aftermarket Tires: 35" x 12.
50" (Minor fender trimming and modifications may be required)
APPLICATION NOTE #55: Shocks are fully serviceable.
Lift heights indicated are for a stock equipped vehicle.
APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle.
Increasing weight of vehicle due to accessories will alter lift range.
APPLICATION NOTE #189: For Sequoia TRD Pro ICON diff drop (part# 55156) is recommended but not required.
If installing ICON diff drop, ICON skid plate spacer kit (part# 55164) is also required.
APPLICATION NOTE #190: Designed for use with stock billet TRD front upper control arms
23-24 SEQUOIA TRD PRO 2.
5" STAGE 1 SUSPENSION SYSTEM

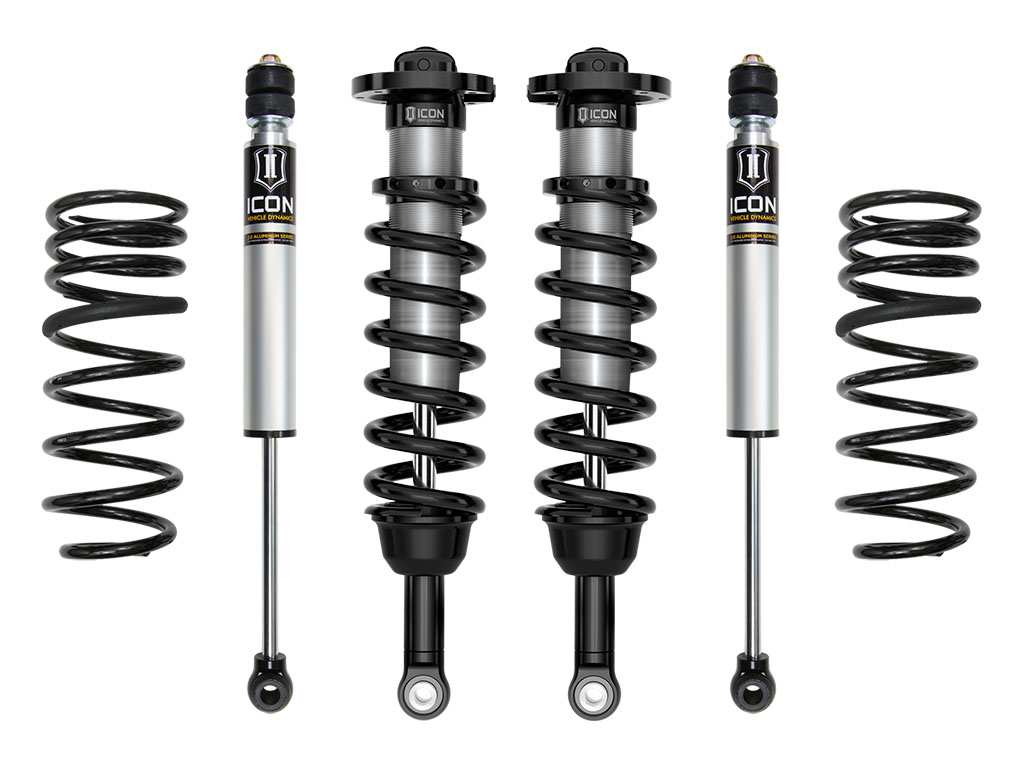

The ICON Stage 1 suspension system for the Sequoia TRD Pro is a full coilover performance suspension system, providing improved performance as well as front/rear-end lift and leveling for a proper stance and fitment of up to 35" tires.
The ICON Vehicle Dynamics Stage 1 complete suspension system for the 2023-2024 Toyota Sequoia TRD Pro is specifically designed to retain the stock billet aluminum front upper control arms found on Sequoia TRD Pro while providing improved on- and off-road performance as well as front-end lift and leveling for a proper stance and fitment of up to 35" tires.
This system features 2.
5 Series coilover shocks for the front of the truck along with dual rate coil springs and our proven 2.
0 nitrogen charged monotube shocks with internal reservoirs for the rear.
This Stage 1 system features the 2023-2024 Toyota Sequoia VS 2.
5 Series internal reservoir front coilovers with a vehicle specific shock length to allow compatibility with the stock front upper control arms found on the Sequoia TRD Pro.
These adjustable coilovers allow up to 1-2.
5” of front lift height adjustability over stock, allowing the use of larger, more aggressive wheel and tire combinations.
ICON’s Vehicle-specific shock length and valving along with the larger 2.
5” shock body and increased piston area over stock components yield the maximum travel possible with the OE front upper control arms along with superior ride quality and suspension performance both on- and off-road.
The dual-rate rear coil design provides a softer ride height spring rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance.
Designed for taller rear ride heights, these coil springs yield 2" of rear lift over stock on a Sequoia TRD Pro, allowing for level a stance front to rear.
Rounding out the Stage 1 suspension system are V.
S.
2.
0 Aluminum Series rear shocks specially tailored for the 2023-2024 Sequoia.
The 2.
0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance.
Their pairing with the ICON 2.
5 Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Sequoia TRD Pro.
Vehicle specific design for 2023-2024 Toyota Sequoia TRD Pro
2.
5 Series front coilovers with internal reservoirs for superior damping and vehicle control
Adjustable front ride heights from 1-2.
5” of front lift over stock
Application specific coilover length allows use with stock Sequoia TRD Pro UCAs
Allows for increased wheel travel without overstressing OE components
Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
2.
0 Aluminum Series rear shocks provide balanced tune with coilovers and increased performance
All ICON shock absorbers are fully rebuildable and re-tunable
ICON 2023-2024 Toyota Sequoia TRD Pro, 1-2.
5" Lift, Stage 1 2.
5 Suspension System, K53391
ICON 2023-2024 Toyota Sequoia TRD Pro, 1-2.
5" Lift, Stage 1 2.
5 Suspension System
ICON 23-24 SEQUOIA TRD PRO 2.
5" STAGE 1 SUSPENSION SYSTEM.

Detailed Fitment Results
Year Make Model Submodel 2023 Toyota Sequoia TRD Pro 2024 Toyota Sequoia TRD Pro
