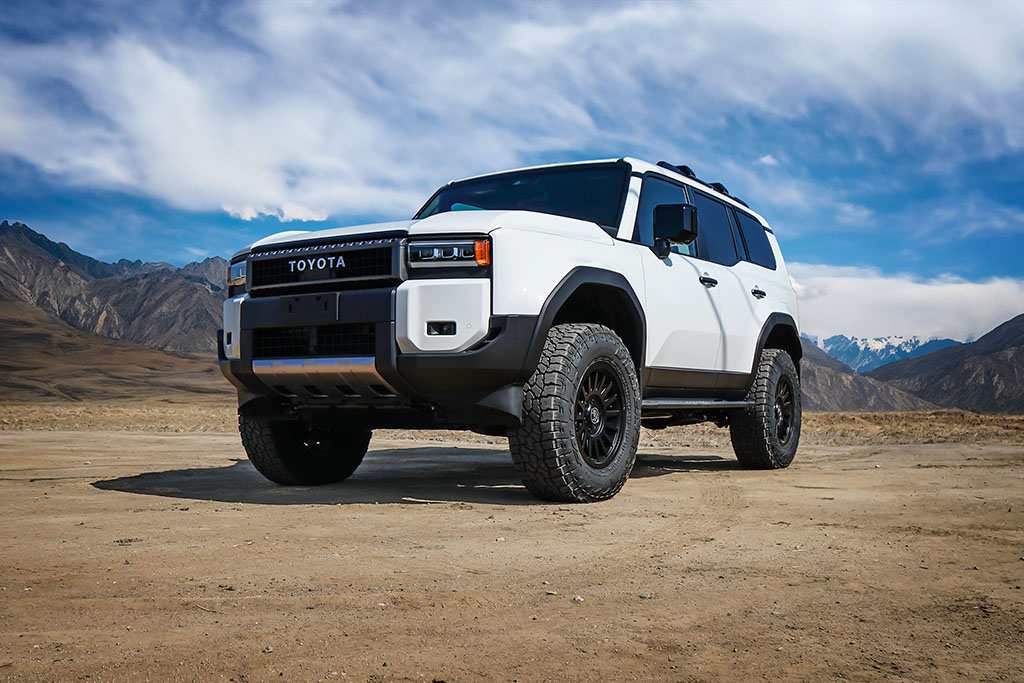

2024 Toyota Land Cruiser Suspension Lift Kit - ICON Vehicle Dynamics - K53365

SUSPENSION SYSTEM
K53365
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: 17x8.
5 with 6.
32” Backspace / 40mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 6.
6” Backspace / 40mm Offset
Recommended Aftermarket Tires: 33" x 11.
50" (Larger tires may fit but fender trimming and modifications will be required.
)
APPLICATION NOTE #55: Shocks are fully serviceable.
Lift heights indicated are for a stock equipped vehicle.
APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle.
Increasing weight of vehicle due to accessories will alter lift range.
24 LAND CRUISER 250 SERIES 1.
25-3" LIFT STAGE 5 SUSPENSION SYSTEM BILLET
ICON LC250 suspension systems are designed with maximum performance and the serious driver in mind.
ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road.
ICON Vehicle Dynamics 2024 Toyota Land Cruiser 250 Series suspension systems are designed with maximum performance and the serious driver in mind.
ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road.
The Stage 5 system includes vehicle-specific tuned 2.
5 Series coilover shocks featuring remote reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel.
These coilovers are height adjustable from 1.
25-3” of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations.
Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade.
The combination of front differential drop brackets and ICON’s specifically designed coilover lengths maximizes the available front suspension travel and prevent CV bind.
Additionally, polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load.
The included ICON billet aluminum upper control arm kit is designed to improve the overall performance of the Toyota Land Cruiser with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance.
Additionally, replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind.
The dual-rate rear coil design provides a softer ride height spring rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance.
2” of rear lift height over stock allows a for level stance front to rear.
ICON 2.
5 Aluminum Series remote reservoir rear shocks with integrated bump zones provide improved shock damping ability and utilize a vehicle-specific valving that balances the performance of the truck from front to rear.
The ICON Vehicle Dynamics 2024 Toyota Land Cruiser 250 Series Stage 5 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
2.
5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
Increased wheel travel and improved ride quality over stock
Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
Adjustable coilovers provide 1.
25-3" front lift height over stock
Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
UCAs feature the patented (U.
S.
Pat.
10,731,700) Delta Joint Pro with 90 degrees of total articulation
6061 aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
FK Rod End bearings for extended longevity and minimal deflection
2.
5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers
ICON 2024 Toyota Land Cruiser 250 Series, 1.
25-3" Lift, Stage 5 Suspension System, Billet, K53365
ICON 2024 Toyota Land Cruiser 250 Series, 1.
25-3" Lift, Stage 5 Suspension System, Billet
ICON 24 LAND CRUISER 250 SERIES 1.
25-3" LIFT STAGE 5 SUSPENSION SYSTEM BILLET.

Detailed Fitment Results
Year Make Model Submodel 2024 Toyota Land Cruiser 1958 2024 Toyota Land Cruiser Base 2024 Toyota Land Cruiser First Edition
