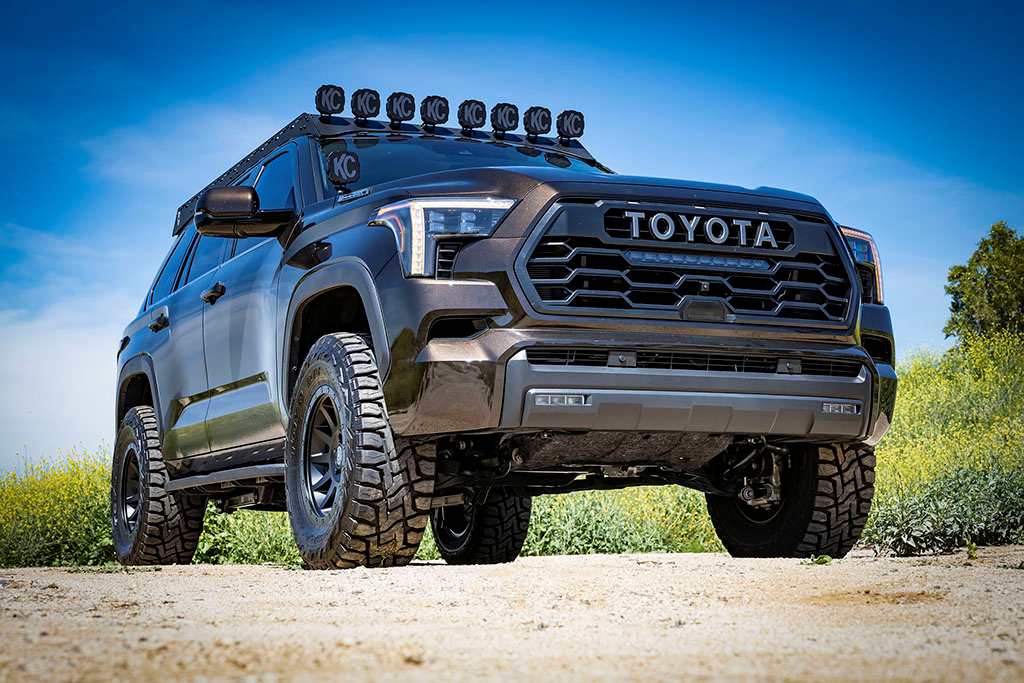

23-24 Toyota Sequoia (4WD/RWD - Coil) Suspension Lift Kit - ICON Vehicle Dynamics - K53251

SUSPENSION SYSTEM
K53251
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 5.
75” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6” Backspace / 25mm Offset
Recommended Aftermarket Tires: 35" x 12.
50" (Minor fender trimming and modifications may be required)
APPLICATION NOTE #55: Shocks are fully serviceable.
Lift heights indicated are for a stock equipped vehicle.
APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle.
Increasing weight of vehicle due to accessories will alter lift range.
APPLICATION NOTE #142: Not compatible with vehicles equipped with Load-Leveling Rear Height Control Air Suspension.
APPLICATION NOTE #149: For 4WD models without TRD Off-Road package ICON recommends using ICON Diff Drop (Part# 55156) or using Toyota TRD axles (Part# 434200C020 Driver / 434100C020 Pass).
Failure to do so could result in front axle damage.
Not required for TRD Pro.
APPLICATION NOTE #171: If equipped with TRD aluminum skid plate part # 55164 is also required
TECH NOTE: Sequoias equipped with automatic leveling headlights also require part number 55153
TECH NOTE: Most Sequoia submodels will have front lift height range of 3-4.
25” over stock and 2" of rear lift over stock.
Submodels equipped with TRD Off-Road Package and TRD Pro will have a front lift height range of 1-2.
25" over stock and remain at stock height in the rear.
If taller rear ride heights are desired, consider kit part number K53251S.
23-24 SEQUOIA 3-4.
25" STAGE 1 3.
0 SUSPENSION SYSTEM BILLET
Stage 1 includes 3.
0 Series CDCV coilovers for 3-4.
25” of front lift, greater performance, and 35” tire fitment.
UCAs, rear links and track bar provide alignment correction and rear coils with 2.
5 Series CDCV rear shocks balance the tuning.
The ICON Vehicle Dynamics Stage 1 3.
0 complete suspension system for the 2023-2024 Toyota Sequoia builds upon the Stage 10 2.
5 suspension system with the upgrade to 3.
0 Series front coilovers.
This system offers improved on- and off-road performance with adjustable compression damping, as well as improved alignment specs and increased front and rear-end lift height range for a proper stance and fitment of up to 35" tires.
To compliment the 3.
0 Series coilover shocks, 2.
5 Aluminum Series CDCV rear remote reservoir shocks are included along with billet front upper control arms, a billet rear upper/lower link combo, a front sway bar drop kit, adjustable rear track bar, and dual rate rear coil springs.
This Stage 1 system features the 2023-2024 Toyota Sequoia VS 3.
0 Series remote reservoir front coilovers equipped with CDC Valves.
These adjustable coilovers allow up to 3-4.
25” of lift height adjustability over stock when using the ICON billet front upper control arms, allowing the use of larger, more aggressive wheel and tire combinations.
The larger 3.
0 Series shocks offer 50% more piston surface area in the ride zone of the shock's travel, and 100% in the “Bump Zone”, compared to 2.
5 Series shocks.
The multi-stage hydraulic Bump Zone exponentially increases bottom-out resistance as the shock travels through the last 40% of travel, keeping vehicle dynamics in check during those hard hits or unexpected obstacles.
The included ICON CDC Valves are externally adjustable valves that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.
Additionally, ICON’s Vehicle-specific shock length yields the maximum travel possible (up to 40% increase over stock), all translating into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions.
The included ICON billet aluminum upper control arm kit is designed to improve the overall performance of the 2023-2024 Toyota Sequoia with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance.
Additionally, replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind.
The included sway bar drop brackets help minimize sway bar link bind through the suspension travel range.
This helps the suspension move more freely and allows for the full range of wheel travel without overstressing any OE components.
ICON billet aluminum adjustable rear upper and lower links are made from CNC machined 6061 aluminum and anodized for corrosion resistance.
These link arm kits feature PTFE-lined FK rod ends for increased suspension articulation, reduced deflection, and on-vehicle link arm length adjustability using ICON’s double adjuster system.
Additionally, multi durometer bushings are installed that allow for noise free operation and maximum angularity without the need for periodic greasing and/or other maintenance.
The dual-rate rear coil design provides a softer ride height spring rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance.
Designed for shorter rear ride heights, these coil springs yield 2" of rear lift over stock on a non-TRD Sequoia or 0” of rear lift height on a Sequoia equipped with the TRD Off-Road package, allowing for level a stance front to rear.
The ICON Billet Rear Adjustable Track Bar helps center the axle of your lifted 2023-2024 Sequoia.
Double adjuster rod end threads allow easy “on-vehicle” fine adjustment of track bar length without requiring removal or disassembly of the track bar.
The track bar is CNC machined from solid 6061 aluminum bar, and anodized to match the look of ICON's billet upper and lower links.
Rounding out the Stage 1 suspension system are 2.
5 Aluminum Series rear remote reservoir shocks specially tailored for the 2023-2024 Toyota Sequoia.
The 2.
5 Aluminum Series shocks’ …
