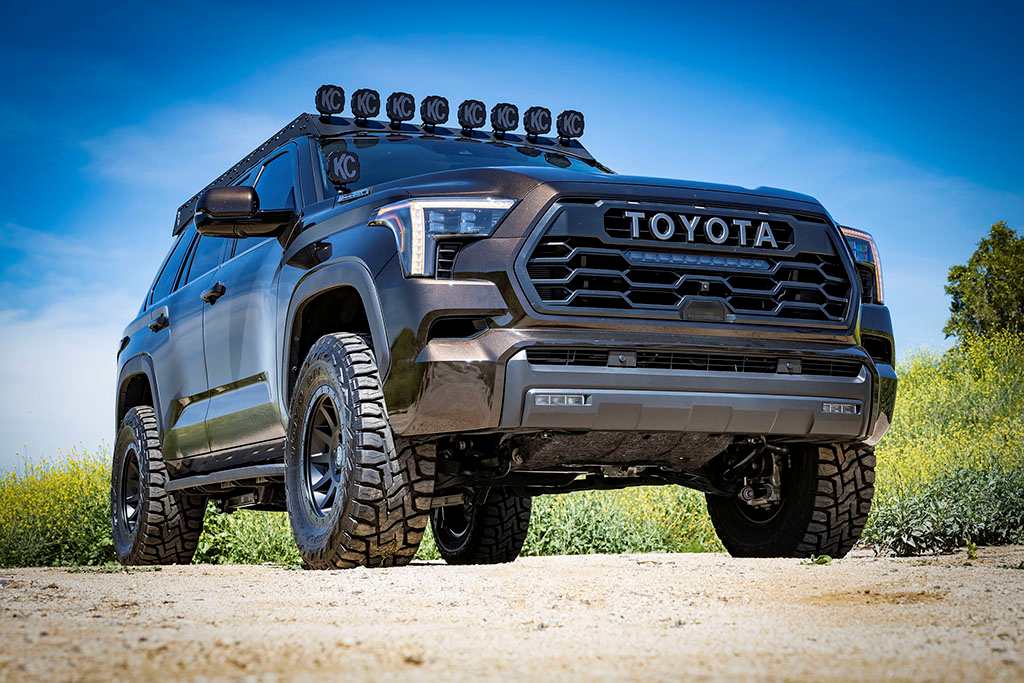

2023-2025 Toyota Sequoia 3-4.5 Inch Lift Stage 9 Suspension System Tubular CDXS Trd - ICON Vehicle Dynamics - K53239TDS

The ICON Vehicle Dynamics Stage 9 complete suspension system for the 2023-2025 Toyota Sequoia upgrades front and rear shock absorbers to include Compression Damping Dual Speed (CDXS) for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow crawling through the rocks or mobbing across the desert at full throttle.

This system offers improved on- and off-road performance with adjustable compression damping, as well as improved alignment specs and increased front-end lift height range for a proper stance and fitment of up to 35 Inch tires. To compliment the CDXS equipped 2.5 Series coilovers and rear shocks, a tubular steel front upper control arm kit is included along with a front sway bar drop kit and dual rate rear coil springs.

Features and Benefits:


This Stage 9 system features the 2023-2025 Toyota Sequoia VS 2.5 Series remote reservoir front coilovers equipped with CDXS. These adjustable coilovers allow up to 3-4.5 Inch of lift height adjustability over stock when using the ICON billet front upper control arms, allowing the use of larger, more aggressive wheel and tire combinations. ICON's Vehicle-specific shock length and valving along with the larger 2.5 Inch shock body and increased piston area over stock components yield the maximum travel possible (up to 40 Percent increase over stock) along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. These coilovers also feature ICON's exclusive Compression Damping Dual Speed (CDXS) valves for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness.

The included ICON tubular upper control arm kit is designed to improve the overall performance of the new 2023-2025 Toyota Sequoia with corrected front-end geometry, built in additional caster, and improved suspension component clearance. Additionally, replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind.

The included sway bar drop brackets help minimize sway bar link bind through the suspension travel range. This helps the suspension move more freely and allows for the full range of wheel travel without overstressing any OE components.

The dual-rate rear coil design provides a softer ride height spring rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. Designed for taller rear ride heights, these coil springs yield 4 Inch of rear lift over stock on a non-TRD Sequoia or 2 Inch of rear lift height on a Sequoia equipped with the TRD Off-Road package or Sequoia TRD Pro, allowing for level a stance front to rear.

Rounding out the Stage 9 suspension system are 2.5 Aluminum Series rear remote reservoir shocks specially tailored for the 2023-2025 Toyota Sequoia. The 2.5 Aluminum Series shocks' larger diameter offers outstanding performance off-road and a smooth ride on the street. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. They also feature a unique internal Bump Zone that when used creates an additional 20 Percent of damping force to help better control hard bottom outs. Also equipped with CDXS, these offer 10 settings of low and high speed compression damping adjustment from soft to hard. Their pairing with the ICON V.S. 2.5 Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Sequoia.

Vehicle specific design for 2023-2025 Toyota Sequoia

2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling

Adjustable front ride heights from 3-4.5 Inch of front lift over stock

All shock absorbers equipped with ICON CDXS for independent adjustability of high speed and low speed compression force for handling response and aggressiveness

Tubular UCAs for added strength, durability, and alignment correction for better drivability

UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation

Included sway bar drop brackets reduce bind in OE sway bar links

Allows for full wheel travel without overstressing OE components

Dual rate rear coil springs improve performance and ride quality while providing 2 inch or 4 Inch of rear lift, depending on the vehicle's stock suspension package

2.5 Aluminum Series rear remote reservoir shocks provide increased performance and balanced tune with coilovers

All ICON shock absorbers are fully rebuildable and re-tunable


Details


Active Or Passive Suspension: Passive

Adjustable Compression: Yes

Adjustable Control Arm: No

Adjustable Damping: Yes

Adjustable Rebound: No

Bushings Included: Yes

Coil Quantity Front: 2.0

Coils Quantity Front: 2.0

Coils Quantity Rear: 2.0

Damping Adjustment Type: Dual Speed Manual

Front Reservoir Style: Remote

Front Shock Body Diameter: 2.5

Front Spring Rate Type: Linear

Grade Type: Performance

Maximum Lift: 4.5 Inch

Maximum Lift Front: 4.5 Inch

Maximum Lift Rear: 4.0 Inch

Minimum Lift Front: 3.0 Inch

Minimum Lift Rear: 2.0 Inch

Mounting Hardware Included: Yes

Oem Wheels & Tires Fitment: Yes

Rear Reservoir Style: Remote

Rear Shock Body Diameter: 2.5

Rear Sp…
