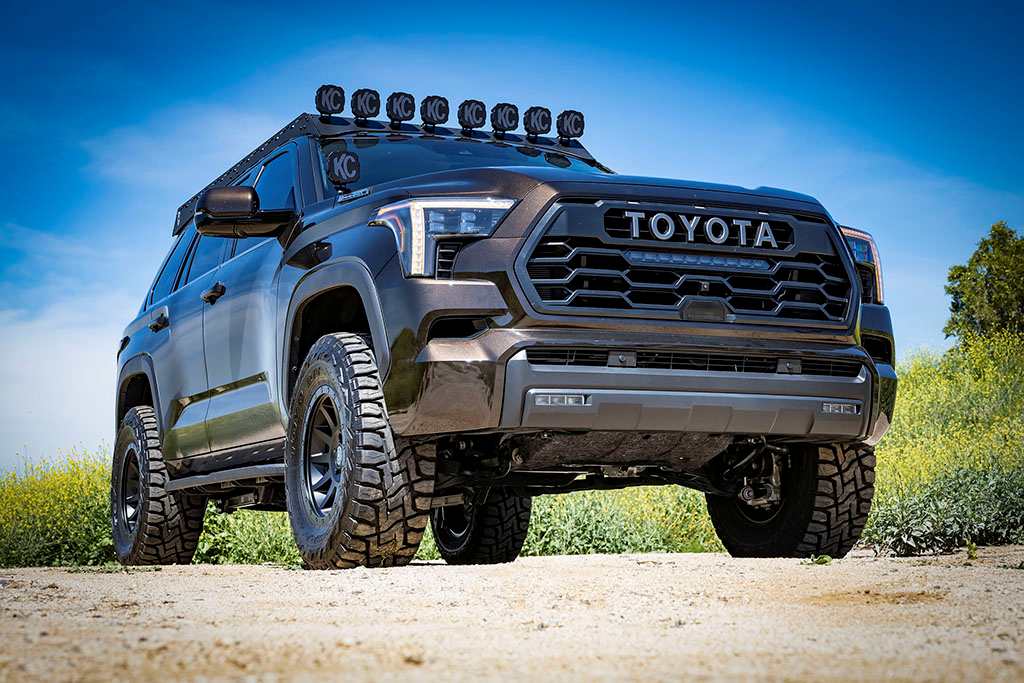

23-25 Toyota Sequoia (4WD/RWD - Coil) Suspension Lift Kit - ICON Vehicle Dynamics - K53235T

SUSPENSION SYSTEM
K53235T
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 5.
75” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6” Backspace / 25mm Offset
Recommended Aftermarket Tires: 35" x 12.
50" (Minor fender trimming and modifications may be required)
APPLICATION NOTE #55: Shocks are fully serviceable.
Lift heights indicated are for a stock equipped vehicle.
APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle.
Increasing weight of vehicle due to accessories will alter lift range.
APPLICATION NOTE #142: Not compatible with vehicles equipped with Load-Leveling Rear Height Control Air Suspension.
APPLICATION NOTE #149: For 4WD models without TRD Off-Road package ICON recommends using ICON Diff Drop (Part# 55156) or using Toyota TRD axles (Part# 434200C020 Driver / 434100C020 Pass).
Failure to do so could result in front axle damage.
Not required for TRD Pro.
APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles
APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
APPLICATION NOTE #171: If equipped with TRD aluminum skid plate part # 55164 is also required
TECH NOTE: Most Sequoia submodels will have front lift height range of 3-4.
5” over stock and 2" of rear lift over stock.
Submodels equipped with TRD Off-Road Package and TRD Pro will have a front lift height range of 1-2.
5" over stock and remain at stock height in the rear.
If taller rear ride heights are desired, consider kit part number K53235TS.
23-25 SEQUOIA 3-4.
5" STAGE 5 SUSPENSION SYSTEM TUBULAR
Stage 5 includes 2.
5 Series coilovers for 3-4.
5” of front lift, greater performance, and 35” tire fitment.
Tubular UCAs provide alignment correction and rear coils with 2.
0 Series rear shocks balance the tuning from front to rear.
The ICON Vehicle Dynamics Stage 5 complete suspension system for the 2023-2025 Toyota Sequoia builds upon the Stage 4 system with the upgrade of the 2.
0 Aluminum Series rear shocks to remote reservoir versions.
This system offers improved on- and off-road performance, with greater rear shock heat dissipation, as well as improved alignment specs and increased front-end lift height range for a proper stance and fitment of up to 35" tires.
To compliment the 2.
0 remote reservoir rear shocks, dual rate rear coils, a 2.
5 Series internal reservoir front coilover shock and tubular front upper control arm combo is included along with a front sway bar drop kit.
This Stage 5 system features the 2023-2025 Toyota Sequoia VS 2.
5 Series internal reservoir front coilovers.
These adjustable coilovers allow up to 3-4.
5” of lift height adjustability over stock when using the ICON billet aluminum front upper control arms, allowing the use of larger, more aggressive wheel and tire combinations.
ICON’s Vehicle-specific shock length and valving along with the larger 2.
5” shock body and increased piston area over stock components yield the maximum travel possible (up to 40% increase over stock) along with superior ride quality and suspension performance both on- and off-road.
The included ICON tubular upper control arm kit is designed to improve the overall performance of the new 2023-2025 Toyota Sequoia with corrected front-end geometry, built in additional caster, and improved suspension component clearance.
Additionally, replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind.
The included sway bar drop brackets help minimize sway bar link bind through the suspension travel range.
This helps the suspension move more freely and allows for the full range of wheel travel without overstressing any OE components.
The dual-rate rear coil design provides a softer ride height spring rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance.
Designed for shorter rear ride heights, these coil springs yield 2" of rear lift over stock on a non-TRD Sequoia or 0” of rear lift height on a Sequoia equipped with the TRD Off-Road package, allowing for level a stance front to rear.
Rounding out the Stage 5 suspension system are V.
S.
2.
0 Aluminum Series rear remote reservoir shocks specially tailored for the 2023-2025 Sequoia.
The 2.
0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance.
Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use.
Their pairing with the ICON 2.
5 Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Sequoia.
Vehicle specific design for 2023-2025 Toyota Sequoia
2.
5 Series front coilovers with internal reservoirs for superior damping and vehicle control
Adjustable front ride heights from 3-4.
5” of front lift over stock
Tubular UCAs for added strength, durability, and alignment correction for better drivability
UCAs feature the patented (U.
S.
Pat.
10,731,700) Delta Joint Pro with 90 degrees of total articulation
Included sway bar drop brackets reduce bind in OE sway bar links
Allows for full wheel travel without overstressing OE components
Dual rate rear coil springs improve performance and ride quality while providing 0" or 2" of rear lift, depending on the vehicle's stock suspension package
2.
0 Aluminum Series remote reservoir rear shocks provide balanced tune with coilovers and increased performance
All ICON shock absorbers are fully rebuildable and re-tunable
ICON 2023-2025 Toyota Sequoia, 3-4.
5" Lift, Stage 5 Suspension System, Tubular, …
