07-21 Toyota Tundra Suspension Lift Kit - Front and Rear - ICON Vehicle Dynamics - K53228

SUSPENSION SYSTEM
07-21 TUNDRA STAGE 3 EXP SUSP SYS
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5 with 5.
75” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 6.
00” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5.
625” Backspace / 16mm Offset
Recommended Aftermarket Tires: 35" x 12.
50" (Minor fender trimming may be required)
APPLICATION NOTE #55: Shocks Are Fully Serviceable.
Lift Heights Indicated Are For A Stock Equipped Vehicle.
APPLICATION NOTE #110: Trimming Required For Recommended Tire Size
APPLICATION NOTE #122: Not Compatible With Rear Trd Sway Bar Kit
APPLICATION NOTE #144: Not Compatible With Trd Pro
07-21 TUNDRA 0-2.
25" STAGE 3 EXP SUSPENSION SYSTEM
2007-2021 TOYOTA TUNDRA 0-2.
25" LIFT STAGE 3 EXP SUSPENSION SYSTEM

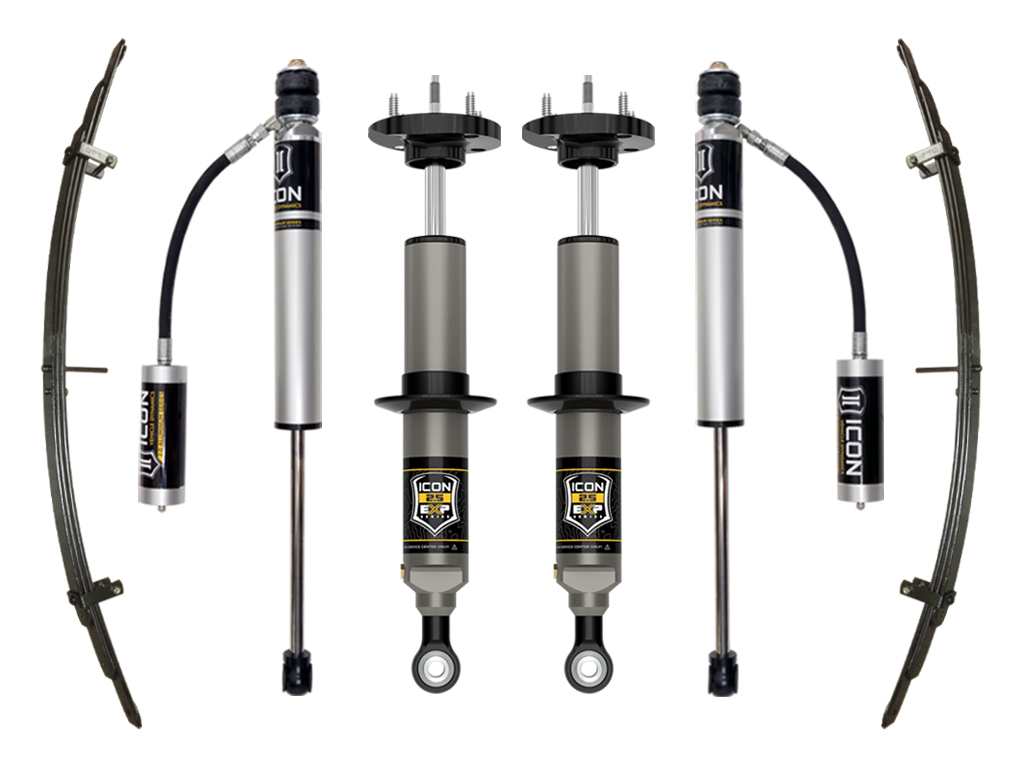

The ICON Vehicle Dynamics Stage 3 EXP suspension system for the 2007-2021 Toyota Tundra provides improved on- and off-road performance as well as front and rear-end lift and fitment of up to 35" tires.
This system features the innovative new 2.
5 EXP series coilover shocks along with our proven 2.
0 Aluminum Series nitrogen charged remote reservoir shocks for the rear.
This Stage 3 system features the 2007-2021 Toyota Tundra EXP Series front shock absorbers that combine the performance of a fully rebuildable 2.
5-inch diameter premium shock absorber with the convenience and cost-benefits of re-using the Tacoma’s factory coil spring and other components.
EXP bridges the gap between spacer lifts and threaded bodied coilovers providing 0-2.
25” of front suspension lift, custom-tuned performance and maximum travel all in an economical package.
The included rear leaf spring expansion pack replaces all the factory secondary leaves while only retaining the factory main and overload springs.
This allows us to soften the spring rate to increase ride comfort while also increasing ride height by 1.
5”, maintaining load and towing capacities, and increasing wheel travel when paired with ICON shock absorbers.
Rounding out the Stage 3 EXP suspension system are V.
S.
2.
0 Aluminum Series remote reservoir rear shocks specially tailored for the 2007-2021 Toyota Tundra.
The 2.
0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance.
Remote reservoirs improve heat dissipation and ensure consistent performance during prolonged periods of spirited off-road driving.
Their pairing with the ICON 2.
5 EXP Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Tundra.
Vehicle specific design for 2007-2021 Toyota Tundra
2.
5 EXP Series front shocks with internal reservoirs utilize factory coil and coil hardware
Adjustable front ride heights from 0-2.
25” of front lift over stock with the use of snap ring
Vehicle specific tuned for superior shock damping and control
Rear leaf spring expansion pack provides 1.
5” of rear lift and improved ride quality
2.
0 Aluminum Series remote reservoir rear shocks provide balanced tune with coilovers and increased performance
All ICON shock absorbers are fully rebuildable and re-tunable
ICON 2007-2021 Toyota Tundra 0-2.
25" Lift Stage 3, EXP Suspension System, K53228
ICON 07-21 Toyota Tundra 0-2.
25" Lift Stage 3, EXP Suspension System.

Detailed Fitment Results
Year Make Model Submodel 2007 Toyota Tundra Limited 2007 Toyota Tundra SR5 2007 Toyota Tundra Base 2008 Toyota Tundra Limited 2008 Toyota Tundra SR5 2008 Toyota Tundra Base 2009 Toyota Tundra Limited 2009 Toyota Tundra SR5 2009 Toyota Tundra Base 2010 Toyota Tundra Limited 2010 Toyota Tundra SR5 2010 Toyota Tundra Base 2010 Toyota Tundra Platinum 2011 Toyota Tundra Limited 2011 Toyota Tundra SR5 2011 Toyota Tundra Base 2012 Toyota Tundra Limited 2012 Toyota Tundra SR5 2012 Toyota Tundra Base 2013 Toyota Tundra Limited 2013 Toyota Tundra SR5 2013 Toyota Tundra Base 2013 Toyota Tundra Platinum 2014 Toyota Tundra Limited 2014 Toyota Tundra SR5 2014 Toyota Tundra Platinum 2014 Toyota Tundra 1794 Edition 2014 Toyota Tundra SR 2015 Toyota Tundra Limited 2015 Toyota Tundra SR5 2015 Toyota Tundra Platinum 2015 Toyota Tundra 1794 Edition 2015 Toyota Tundra SR 2016 Toyota Tundra Limited 2016 Toyota Tundra SR5 2016 Toyota Tundra Platinum 2016 Toyota Tundra 1794 Edition 2016 Toyota Tundra SR 2017 Toyota Tundra Limited 2017 Toyota Tundra SR5 2017 Toyota Tundra Platinum 2017 Toyota Tundra 1794 Edition 2017 Toyota Tundra SR 2018 Toyota Tundra Limited 2018 Toyota Tundra SR5 2018 Toyota Tundra Platinum 2018 Toyota Tundra 1794 Edition 2018 Toyota Tundra SR 2018 Toyota Tundra 1794 2019 Toyota Tundra Limited 2019 Toyota Tundra SR5 2019 Toyota Tundra Platinum 2019 Toyota Tundra 1794 Edition 2019 Toyota Tundra SR 2019 Toyota Tundra 1794 2020 Toyota Tundra Limited 2020 Toyota Tundra SR5 2020 Toyota Tundra Base 2020 Toyota Tundra Platinum 2020 Toyota Tundra 1794 Edition 2020 Toyota Tundra SR 2020 Toyota Tundra 1794 2020 Toyota Tundra TRD Off-Road 2020 Toyota Tundra TRD Sport 2021 Toyota Tundra Limited 2021 Toyota Tundra SR5 2021 Toyota Tundra Base 2021 Toyota Tundra Platinum 2021 Toyota Tundra 1794 Edition 2021 Toyota Tundra SR 2021 Toyota Tundra 1794 2021 Toyota Tundra TRD Off-Road 2021 Toyota Tundra Nightshade 2021 Toyota Tundra TRD Off-Road Premium 2021 Toyota Tundra TRD Sport Premium 2021 Toyota Tundra Trail
