05-23 Toyota Tacoma (4WD) Suspension Lift Kit - Front and Rear - ICON Vehicle Dynamics - K53221

SUSPENSION SYSTEM
K53221
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5 with 4.
75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5.
00” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5.
00” Backspace / 0mm Offset
Recommended Aftermarket Tires: 33" x 11.
50" (Minor fender trimming may be required)
APPLICATION NOTE #55: Shocks are fully serviceable.
Lift heights indicated are for a stock equipped vehicle.
APPLICATION NOTE #110: Trimming required for recommended tire size
APPLICATION NOTE #144: Not compatible with TRD Pro
TECH NOTE: Not compatible with 2005-2015 rear wheel drive Tacomas with 5 wheel lug studs
05-23 TACOMA 0-2" STAGE 2 EXP SUSPENSION SYSTEM
The ICON EXP suspension system for the Toyota Tacoma represents our entry level performance suspension system providing improved on- and off-road performance as well as front-end lift for a proper stance and fitment of up to 33" tires.
The ICON Vehicle Dynamics Stage 2 EXP suspension system for the 2005-2023 Toyota Tacoma provides improved on- and off-road performance as well as front and rear-end lift and fitment of up to 33" tires.

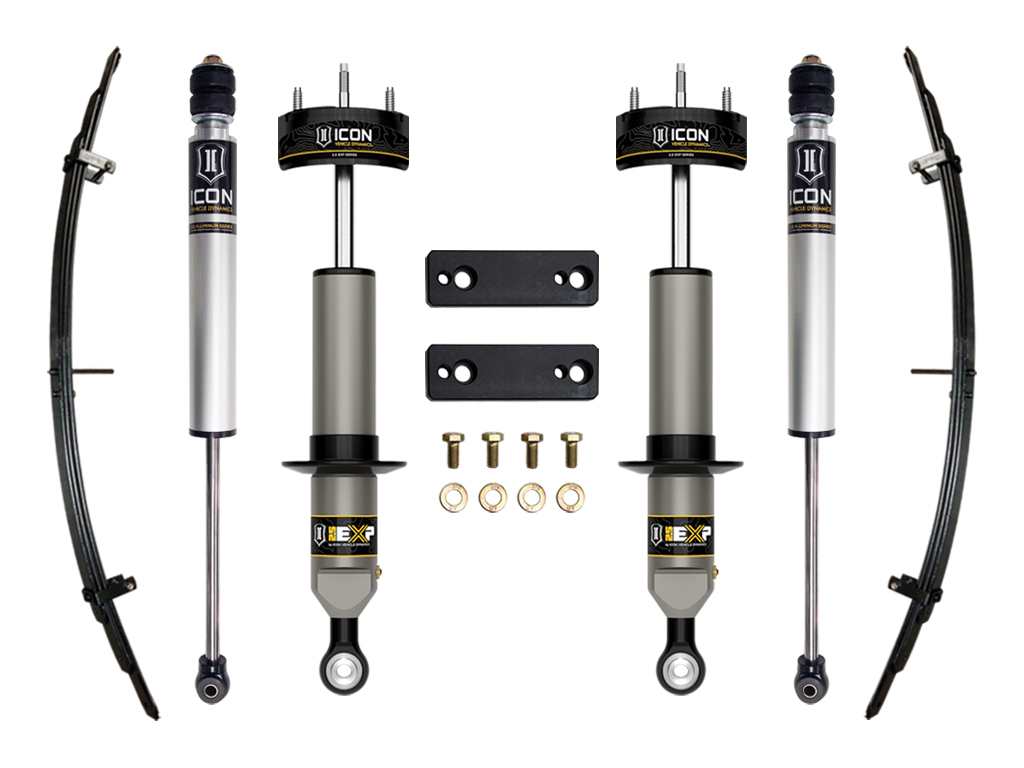

This system features the innovative new 2.
5 EXP series coilover shocks, sway bar relocation brackets, rear add-a-leaf, and our proven 2.
0 Aluminum Series nitrogen charged monotube shocks for the rear.
This Stage 2 system features the 2005-2023 Toyota Tacoma EXP Series front shock absorbers that combine the performance of a fully rebuildable 2.
5-inch diameter premium shock absorber with the convenience and cost-benefits of re-using the Tacoma’s factory coil spring and other components.
EXP bridges the gap between spacer lifts and threaded bodied coilovers providing 0-2” of suspension lift, custom-tuned performance and maximum travel all in an economical package.
The included sway bar relocation brackets help minimize sway bar link bind through the suspension travel range and offer’s sway bar clearance from the EXP coilovers.
This helps the suspension move more freely and allows for the full range of wheel travel without overstressing any OE components.
The rear leaf spring Add-a-Leaf kit improves ride quality by softening the rear spring rate compared to stock.
This 3-leaf spring installs in place of the OE overload leaf and eliminates the aggressive ramp up in spring rate provided by the OE overload.
This equates to improved ride quality and suspension performance, on and off-road, while also lifting the rear of the truck 1.
5” over stock.
Rounding out the Stage 2 EXP suspension system are V.
S.
2.
0 Aluminum Series rear shocks specially tailored for the 2005-2023 Tacoma.
The 2.
0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance.
Their pairing with the ICON 2.
5 EXP Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Tacoma.
Vehicle specific design for 2005-2023 Toyota Tacoma
2.
5 EXP Series front shocks with internal reservoirs utilize factory coil and coil hardware
Adjustable front ride heights from 0-2” of front lift over stock with the use of snap ring
Included sway bar relocation brackets reduce ensure sway bar clearance from EXP coilovers
Allows for full wheel travel without overstressing OE components
Rear Add-a-Leaf softens spring rate for improved ride quality while providing 1.
5” of rear lift
2.
0 Aluminum Series rear shocks provide balanced tune with coilovers and increased performance
All ICON shock absorbers are fully rebuildable and re-tunable
ICON 2005-2023 Toyota Tacoma, 0-2" Lift, Stage 2 EXP Suspension System, K53221
ICON 2005-2023 Toyota Tacoma, 0-2" Lift, Stage 2 EXP Suspension System
ICON 05-23 TACOMA 0-2" STAGE 2 EXP SUSPENSION SYSTEM.

Detailed Fitment Results
Year Make Model Submodel 2005 Toyota Tacoma Base 2005 Toyota Tacoma Pre Runner 2006 Toyota Tacoma Base 2006 Toyota Tacoma Pre Runner 2006 Toyota Tacoma SR5 Prerunner 2006 Toyota Tacoma TRD Sport Prerunner 2006 Toyota Tacoma Base Prerunner 2007 Toyota Tacoma Base 2007 Toyota Tacoma Pre Runner 2007 Toyota Tacoma SR5 Prerunner 2007 Toyota Tacoma TRD Sport Prerunner 2008 Toyota Tacoma Base 2008 Toyota Tacoma Pre Runner 2008 Toyota Tacoma SR5 Prerunner 2008 Toyota Tacoma TRD Sport Prerunner 2009 Toyota Tacoma Base 2009 Toyota Tacoma Pre Runner 2009 Toyota Tacoma SR5 Prerunner 2009 Toyota Tacoma TRD Sport Prerunner 2010 Toyota Tacoma Base 2010 Toyota Tacoma Pre Runner 2010 Toyota Tacoma TRD Sport 2011 Toyota Tacoma Base 2011 Toyota Tacoma Pre Runner 2011 Toyota Tacoma TRD Sport 2012 Toyota Tacoma Base 2012 Toyota Tacoma Pre Runner 2012 Toyota Tacoma TRD Sport 2013 Toyota Tacoma Base 2013 Toyota Tacoma Pre Runner 2013 Toyota Tacoma TRD Sport 2014 Toyota Tacoma Base 2014 Toyota Tacoma Pre Runner 2014 Toyota Tacoma TRD Sport 2015 Toyota Tacoma Base 2015 Toyota Tacoma Pre Runner 2015 Toyota Tacoma TRD Sport 2016 Toyota Tacoma TRD Sport 2016 Toyota Tacoma Edicion Especial 2016 Toyota Tacoma Limited 2016 Toyota Tacoma SR 2016 Toyota Tacoma SR5 2016 Toyota Tacoma TRD Off-Road 2017 Toyota Tacoma TRD Sport 2017 Toyota Tacoma Edicion Especial 2017 Toyota Tacoma Limited 2017 Toyota Tacoma SR 2017 Toyota Tacoma SR5 2017 Toyota Tacoma TRD Off-Road 2017 Toyota Tacoma Sport 2018 Toyota Tacoma TRD Sport 2018 Toyota Tacoma Edicion Especial 2018 Toyota Tacoma Limited 2018 Toyota Tacoma SR 2018 Toyota Tacoma SR5 2018 Toyota Tacoma TRD Off-Road 2018 Toyota Tacoma Sport 2019 Toyota Tacoma TRD Sport 2019 Toyota Tacoma Edicion Especial 2019 Toyota Tacoma Limited 2019 Toyota Tacoma SR 2019 Toyota Tacoma SR5 2019 Toyota Tacoma TRD Off-Road 2019 Toyota Tacoma Sport 2020 Toyota Tacoma TRD Sport 2020 Toyota Tacoma Edicion Especial 2020 Toyota Tacoma Limited 2020 Toyota Tacoma SR 2020 Toyota Tacoma SR5 2020 Toyota Tacoma TRD Off-Road 2020 Toyota…
