22-25 Toyota Tundra (4WD/RWD - Coil) Suspension Lift Kit - ICON Vehicle Dynamics - K53203T

SUSPENSION SYSTEM
K53203T
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 5.
75” Backspace / 25mm Offset
Recommended Aftermarket Tires: 35" x 12.
50" (Minor fender trimming and modifications may be required)
APPLICATION NOTE #55: Shocks are fully serviceable.
Lift heights indicated are for a stock equipped vehicle.
APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle.
Increasing weight of vehicle due to accessories will alter lift lange.
APPLICATION NOTE #141: Tundra/Sequoia equipped with automatic leveling headlights or Load-Leveling Rear Height Control Air Suspension, part # 55153 is also required
APPLICATION NOTE #142: Not compatible with vehicles equipped with Load-Leveling Rear Height Control Air Suspension.
APPLICATION NOTE #149: For 4WD models without TRD Off-Road package ICON recommends using ICON Diff Drop (Part# 55156) or using Toyota TRD axles (Part# 434200C020 Driver / 434100C020 Pass).
Failure to do so could result in front axle damage.
Not required for TRD Pro.
APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles
APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
APPLICATION NOTE #171: If equipped with TRD aluminum skid plate part # 55164 is also required
APPLICATION NOTE #198: An iOS operated device is required to run ICON Intelligent Control app
TECH NOTE: Most Tundra sub-models equipped with i-Force gasoline engine will have front lift height range of 2-3.
5" over stock
TECH NOTE: Most Tundra sub-models equipped with i-Force MAX hybrid engine will have front lift height range of 2-3" over stock
TECH NOTE: Tundra SR5 equipped with TRD Sport Suspension package will have lift height range of 3-4.
5” over stock
TECH NOTE: Tundra TRD Pro will have front lift height range of 0-1.
75" over stock
TECH NOTE: Included rear shocks are compatible with 0-1.
5" of rear lift over stock on models equipped with rear coil springs without a TRD suspension package.
Rear shocks are compatible with 0-1" of rear lift over stock on models equipped with rear coil springs with a TRD suspension package and TRD Pro.
22-25 TUNDRA 2-3.

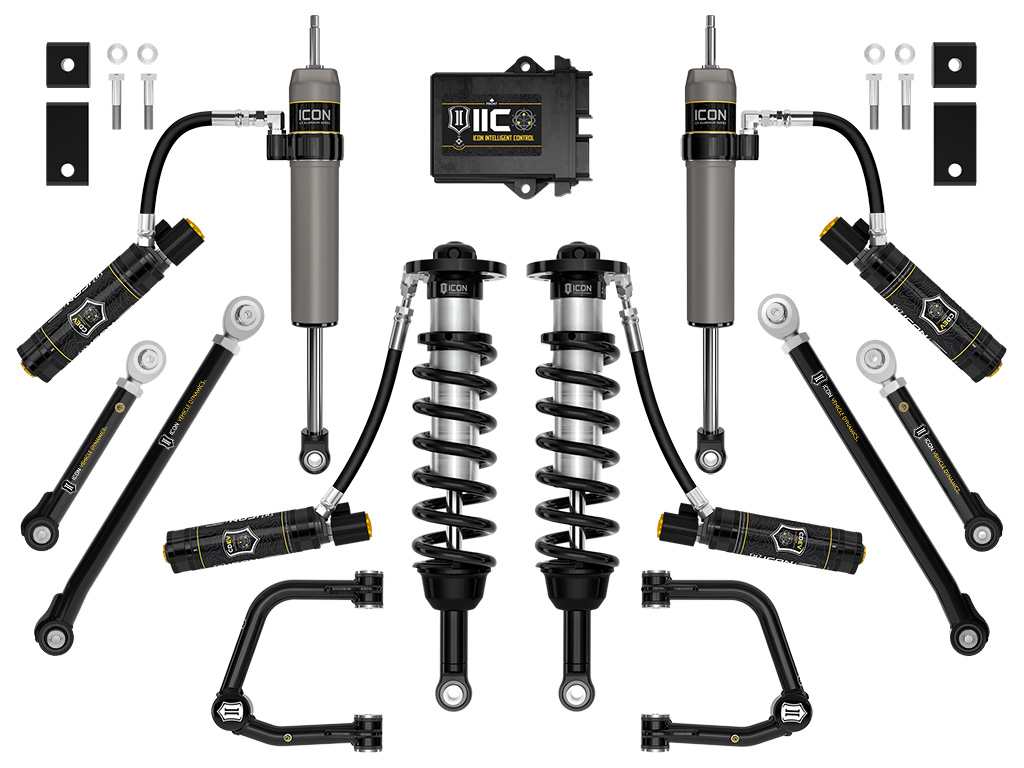

5" STAGE 13 SUSPENSION SYSTEM TUBULAR
Stage 13 includes remote reservoir coilovers for 1.
25-3.
5” of front lift, better performance and 35” tire fitment.
Tubular UCAs, links and 2.
5 Series remote reservoir shocks for balanced shock tuning.
CDEV for active damping adjustment.
The ICON Vehicle Dynamics Stage 13 complete suspension system for the 2022-2025 Toyota Tundra builds upon the Stage 12 system with the addition of billet aluminum adjustable upper and lower rear links.
This system offers improved on- and off-road performance with adjustable compression damping, as well as improved alignment specs and increased front-end lift height range for a proper stance and fitment of up to 35" tires.
To compliment the billet aluminum rear links, a 2.
5 Series CDEV remote reservoir front coilover shock and billet aluminum front upper control arm combo is included along with a front sway bar drop kit and 2.
5 Aluminum Series CDEV rear remote reservoir shocks.
This Stage 13 system features the 2022-2025 Toyota Tundra VS 2.
5 Series remote reservoir front coilovers equipped with CDE Valves.
These adjustable coilovers allow up to 2-3.
5” of lift height adjustability over stock when using the ICON tubular front upper control arms, allowing the use of larger, more aggressive wheel and tire combinations.
ICON’s Vehicle-specific shock length and valving along with the larger 2.
5” shock body and increased piston area over stock components yield the maximum travel possible (up to 40% increase over stock) along with superior ride quality and suspension performance both on- and off-road.
Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade.
Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the Compression Damping Electronic Valve (CDEV) at each individual shock.
Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input.
The included ICON tubular upper control arm kit is designed to improve the overall performance of the new 2022-2025 Toyota Tundra with corrected front-end geometry, built in additional caster, and improved suspension component clearance.
Additionally, replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind.
The included sway bar drop brackets help minimize sway bar link bind through the suspension travel range.
This helps the suspension move more freely and allows for the full range of wheel travel without overstressing any OE components.
ICON tubular steel adjustable rear upper and lower links are made from 1-3/4 x.
313 wall DOM tubing and a multi-stage black powder coat finish for corrosion resistance.
These rear link arm kits feature PTFE-lined FK rod ends for increased suspension articulation, reduced deflection, and link arm length adjustability.
Additionally, multi durometer bushings are installed that allow for noise free operation and maximum angularity without the need for periodic greasing and/or other maintenance.
Rounding out the Stage 13 suspension system are 2.
5 Aluminum Series rear remote reservoir shocks specially tailored for the 2022-2025 Tundra.
The 2.
5 Aluminum Series shocks’ larger diameter offers outstanding performance off-road and a smooth ride on the street.
Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use.
They also feature…
