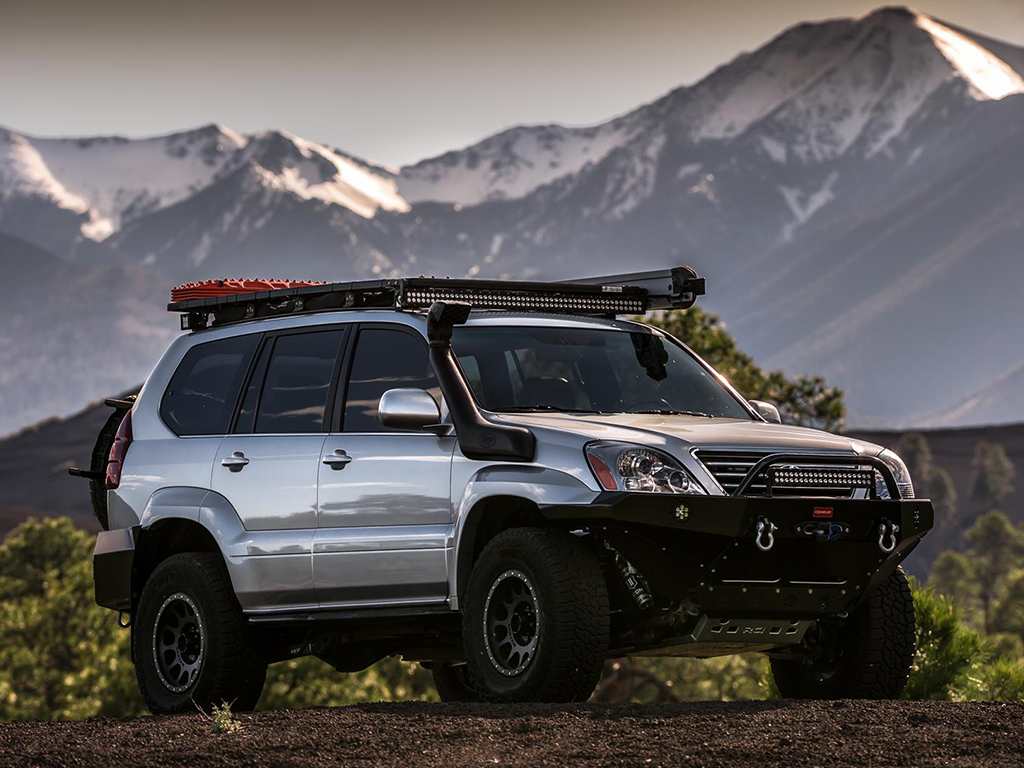

03-09 Lexus GX470 Suspension Lift Kit - Front and Rear - ICON Vehicle Dynamics - K53171

SUSPENSION SYSTEM
03-09 GX470 0-3.
5" STAGE 1 SUSP SYS
Factory Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 4.
75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.
00” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.
00” Backspace / 0mm Offset
Recommended Aftermarket Tires: 33" x 11.
50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
APPLICATION NOTE #35: Remote Reservoir Mounting Brackets May Interfere With Aftermarket Bumper Mounts / Windshield Washer Bottles.
APPLICATION NOTE #46: Suspension System Compatible With Kdss.
Front Sway Bar Relocation Brackets Not Used For Kdss Equipped Vehicles.
Certain Years Require Trimming For Front Reservoir Bracket Fitment.
APPLICATION NOTE #47: 700Lb Coil Spring Available For Heavier Equipped Vehicles.
APPLICATION NOTE #55: Shocks Are Fully Serviceable.
Coilover Heights Indicated Are For A Stock Equipped Vehicle
APPLICATION NOTE #102: Kdss Equipped Vehicles Require Rear Track Bar 54200.
Ships in multiple boxes
03-09 GX470 0-3.
5" STAGE 1 SUSPENSION SYSTEM
2003-2009 LEXUS GX470 0-3.
5" LIFT STAGE 1 SUSPENSION SYSTEM
The Stage 1 system includes vehicle-specific tuned 2.
5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel.
These coilovers are also height adjustable from 0-3.
5” of lift over stock, allowing the use of larger, more aggressive wheel and tire combinations.
ICON 2” lift rear coil springs paired with 2.
0 Aluminum Series internal reservoir rear shocks utilizing vehicle-specific valving balance the performance of the truck from front to rear.
Specifically for the GX470 platforms a rear coil spring conversion kit is included to eliminate the factory rear air bags.
The ICON Vehicle Dynamics 2003-2009 Lexus GX470 Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Increased wheel travel and ride quality over stock
Vehicle specific tuned front and rear shocks for superior shock damping and control
Adjustable coilovers provide 0-3.
5" of lift height
6061 aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock body with 7/8" shaft
FK Rod End bearings for extended longevity and minimal deflection
2.
0 Aluminum Series rear IFP shocks with 5/8" shafts
Included rear coil conversion kit eliminates factory air system
Bolt-on system means no cutting or welding necessary for install
ICON 2003-09 Lexus GX470, 0-3.
5" Lift, Stage 1 Suspension System, Billet UCA, K53171
ICON 2003-09 Lexus GX470, 0-3.
5" Lift, Stage 1 Suspension System.

Detailed Fitment Results
Year Make Model 2003 Lexus GX470 2004 Lexus GX470 2005 Lexus GX470 2006 Lexus GX470 2007 Lexus GX470 2008 Lexus GX470 2009 Lexus GX470
