05-11 Toyota Hilux Suspension Lift Kit - Front and Rear - ICON Vehicle Dynamics - K53138

SUSPENSION SYSTEM
05-11 HILUX STAGE 3 SUSP SYSTEM BILLET
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 4.
75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.
00” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.
00” Backspace / 0mm Offset
Recommended Aftermarket Tires: 33" x 11.
25" (Larger tires may fit but fender trimming and modifications will be required.
)
APPLICATION NOTE #47: 700Lb/In Expedition Coil Available For Heavier Equipped Vehicles
APPLICATION NOTE #55: Shocks Are Fully Serviceable.
Coilover Heights Indicated Are For A Stock Equipped Vehicle
APPLICATION NOTE #82: Rear Springs Can Be Added For Additional Rear Lift Height Up To 2’” To Match The Front 3” Lift Height Adjustment
Ships in multiple boxes

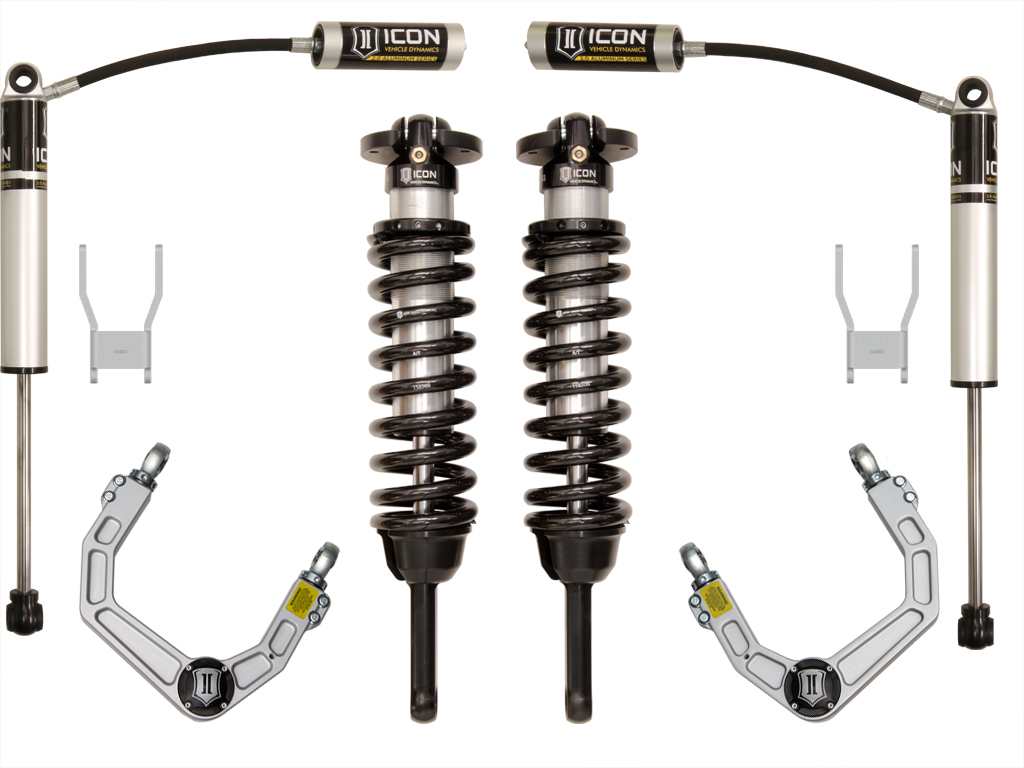

05-11 HILUX 0-3" STAGE 3 SUSPENSION SYSTEM W BILLET UCA
2005-2011 TOYOTA HILUX 0-3" LIFT STAGE 3 SUSPENSION SYSTEM WITH BILLET UCA
ICON Vehicle Dynamics’ Toyota Hilux suspension systems have been designed with maximum performance and the serious driver in mind.
The varying uses of this vehicle worldwide were acknowledged and catered to in ICON’s research and development process.
The Hilux Stage 3 system provides a level of performance that will drastically improve on and off-road vehicle ride characteristics.
ICON's Vehicle-specific tuned 2.
5” coilover shocks feature an internal reservoir for exceptional cooling properties, and ICON-engineered Eibach coil springs for superior vehicle “feel” throughout the range of travel.
These 2.
5" coilovers are height adjustable from 0-3” allowing the use of larger, more aggressive wheel and tire combinations when desired.
ICON 2.
0 Aluminum Series remote reservoir rear shocks balance performance of the truck front to rear, and ensure optimum performance by increasing the duration of consistent damping by keeping the shocks at a cooler operating temperature during extended off-road use.
ICON has taken into account the stiffer chassis of the Hilux, realizing a much more robust overall shock tune was required for sufficient damping ability across varying terrains and differing vehicle payloads.
By utilizing a shackle to lift the rear of the Hilux when the front is set to 3", factory payload rating is retained while allowing more suspension up-travel.
Billet uniball upper control arms on the Hilux not only add strength and durability, but help retain factory alignment spec range allowing on vehicle adjustability.
This attention to detail is why ICON Vehicle Dynamics performance suspension systems are the ultimate solution for the Toyota Hilux.
Increased wheel travel and ride quality over stock with no change in towing capacity
Vehicle specific tuned front and rear shocks for superior shock damping and control
Adjustable coilovers from 0-3" of lift height
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock body with 7/8” shaft
FK rod end bearings for extended longevity and minimal deflection
2.
0 aluminum body rear shock with 5/8" shaft
Uniball arms offer on vehicle adjustability
100% Bolt-on system - no drilling, cutting, or welding necessary for install
ICON 2005-11 Toyota Hilux, 0-3" Lift, Stage 3 Suspension System, Billet UCA, K53138
ICON 2005-11 Toyota Hilux, 0-3" Lift, Stage 3 Suspension System, Billet UCA.

Detailed Fitment Results
Year Make Model 2005 Toyota Hilux 2006 Toyota Hilux 2007 Toyota Hilux 2008 Toyota Hilux 2009 Toyota Hilux 2010 Toyota Hilux 2011 Toyota Hilux
