16-23 Toyota Tacoma Suspension Shock Absorber Kit - Front - ICON Vehicle Dynamics - K53125

S2 SHOCK SYSTEM
K53125
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 4.
75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.
00” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.
00” Backspace / 0mm Offset
Recommended Aftermarket Tires: 33" x 11.
50" (Larger tires may fit but fender trimming and modifications will be required.
)
APPLICATION NOTE #17: These are stand-alone kits and are not to be used in conjunction with any other aftermarket kits
APPLICATION NOTE #55: Shocks are fully serviceable.
coilover heights indicated are for a stock equipped vehicle
APPLICATION NOTE #59: Welding required - lower control arm
APPLICATION NOTE #95: Does not work with TRD Big Brake Kit
TECH NOTE: Compatible with 0-2.
75" of froint lift on most Tacoma submodels.
Compatible with 0-1.
25" of front lift on TRD Pro.
TECH NOTE: Requires OE front lower control arms.
Not compatible with other aftermarket front lower control arm kits.

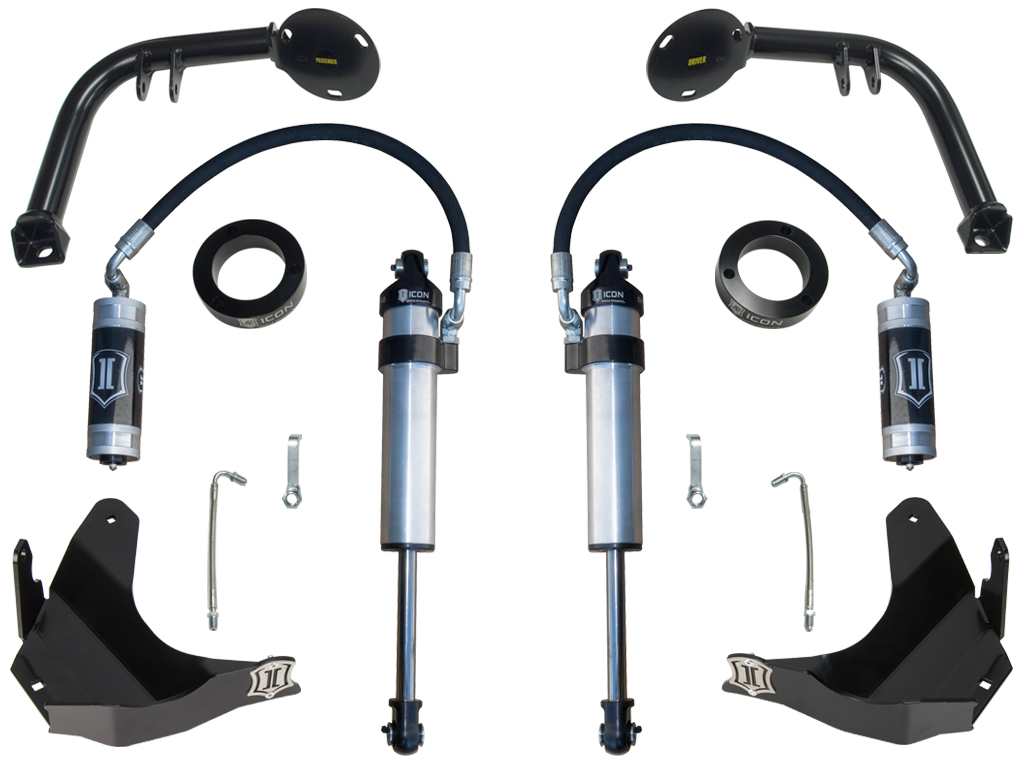

16-23 TACOMA S2 STAGE 1 UPGRADE SYSTEM
The ICON Vehicle Dynamics S2 Secondary Shock System redefines the off-road capability of the Toyota Tacoma by allowing for the installation of a secondary shock to an existing ICON coilover setup, effectively doubling shock damping ability.
The ICON Vehicle Dynamics S2 Secondary Shock System redefines the off-road capability of the 2016-2023 Toyota Tacoma by allowing for the installation of a secondary shock to an existing ICON coilover setup.
The addition of a secondary 2.
5 Aluminum Series shock means rougher terrain and larger off-road obstacles can be overcome with confidence as the damping ability of the vehicle’s suspension is effectively doubled.
As opposed to overly complicated and expensive long travel kits, the ICON S2 System is an affordable upgrade that drastically increases off-road performance, is easy to install, and has a modular design that allows 2016-2023 Toyota Tacoma owners to upgrade in steps or all at once.
The S2 Secondary Shock System utilizes the factory lower control arms and maintains OE track width while a combination of a billet aluminum shock tower adapters, fabricated shock hoops, and steel skid plates (with incorporated shock mounts) make for a straightforward install with the exceptional build quality you would expect from an ICON Vehicle Dynamics product.
The system was designed to eliminate the need for any major alteration of the vehicle’s frame or any other factory suspension components, and the components are 100% removable in case the system is to be installed on another vehicle.
The modular design of the S2 kit also allows for standalone installation of the skid plates, which provides the added benefit of protecting the factory lower control arms from potential trail damage that can be experienced while off-road.
Drastically improves vehicle damping ability off-road
Increased vehicle stability on-road
Utilizes factory lower control arms
Maintains OE track width
Vehicle-specific tuned secondary shocks provide increased damping and oil volume
2.
5 Aluminum Series Secondary shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
Shocks are fully rebuildable and revalveable
Mostly bolt-on design makes for straightforward install
ICON 2016-2023 Toyota Tacoma, Stage 1 S2 Secondary Shock Upgrade System, K53125
ICON 2016-2023 Toyota Tacoma, Stage 1 S2 Secondary Shock Upgrade System
ICON 16-23 TACOMA S2 STAGE 1 UPGRADE SYSTEM.

Detailed Fitment Results
Year Make Model Submodel 2016 Toyota Tacoma Edicion Especial 2016 Toyota Tacoma Limited 2016 Toyota Tacoma SR 2016 Toyota Tacoma SR5 2016 Toyota Tacoma TRD Off-Road 2016 Toyota Tacoma TRD Sport 2017 Toyota Tacoma Edicion Especial 2017 Toyota Tacoma Limited 2017 Toyota Tacoma SR 2017 Toyota Tacoma SR5 2017 Toyota Tacoma TRD Off-Road 2017 Toyota Tacoma TRD Sport 2017 Toyota Tacoma Sport 2017 Toyota Tacoma TRD Pro 2018 Toyota Tacoma Edicion Especial 2018 Toyota Tacoma Limited 2018 Toyota Tacoma SR 2018 Toyota Tacoma SR5 2018 Toyota Tacoma TRD Off-Road 2018 Toyota Tacoma TRD Sport 2018 Toyota Tacoma Sport 2018 Toyota Tacoma TRD Pro 2019 Toyota Tacoma Edicion Especial 2019 Toyota Tacoma Limited 2019 Toyota Tacoma SR 2019 Toyota Tacoma SR5 2019 Toyota Tacoma TRD Off-Road 2019 Toyota Tacoma TRD Sport 2019 Toyota Tacoma Sport 2019 Toyota Tacoma TRD Pro 2020 Toyota Tacoma Edicion Especial 2020 Toyota Tacoma Limited 2020 Toyota Tacoma SR 2020 Toyota Tacoma SR5 2020 Toyota Tacoma TRD Off-Road 2020 Toyota Tacoma TRD Sport 2020 Toyota Tacoma Sport 2020 Toyota Tacoma TRD Pro 2021 Toyota Tacoma Edicion Especial 2021 Toyota Tacoma Limited 2021 Toyota Tacoma SR 2021 Toyota Tacoma SR5 2021 Toyota Tacoma TRD Off-Road 2021 Toyota Tacoma TRD Sport 2021 Toyota Tacoma Sport 2021 Toyota Tacoma TRD Pro 2021 Toyota Tacoma Nightshade 2021 Toyota Tacoma Trail 2022 Toyota Tacoma Edicion Especial 2022 Toyota Tacoma Limited 2022 Toyota Tacoma SR 2022 Toyota Tacoma SR5 2022 Toyota Tacoma TRD Off-Road 2022 Toyota Tacoma TRD Sport 2022 Toyota Tacoma Sport 2022 Toyota Tacoma TRD Pro 2022 Toyota Tacoma Nightshade 2022 Toyota Tacoma Trail 2022 Toyota Tacoma Base 2023 Toyota Tacoma Edicion Especial 2023 Toyota Tacoma Limited 2023 Toyota Tacoma SR 2023 Toyota Tacoma SR5 2023 Toyota Tacoma TRD Off-Road 2023 Toyota Tacoma TRD Sport 2023 Toyota Tacoma Sport 2023 Toyota Tacoma TRD Pro 2023 Toyota Tacoma Nightshade 2023 Toyota Tacoma Base 2023 Toyota Tacoma Trail Special Edition
