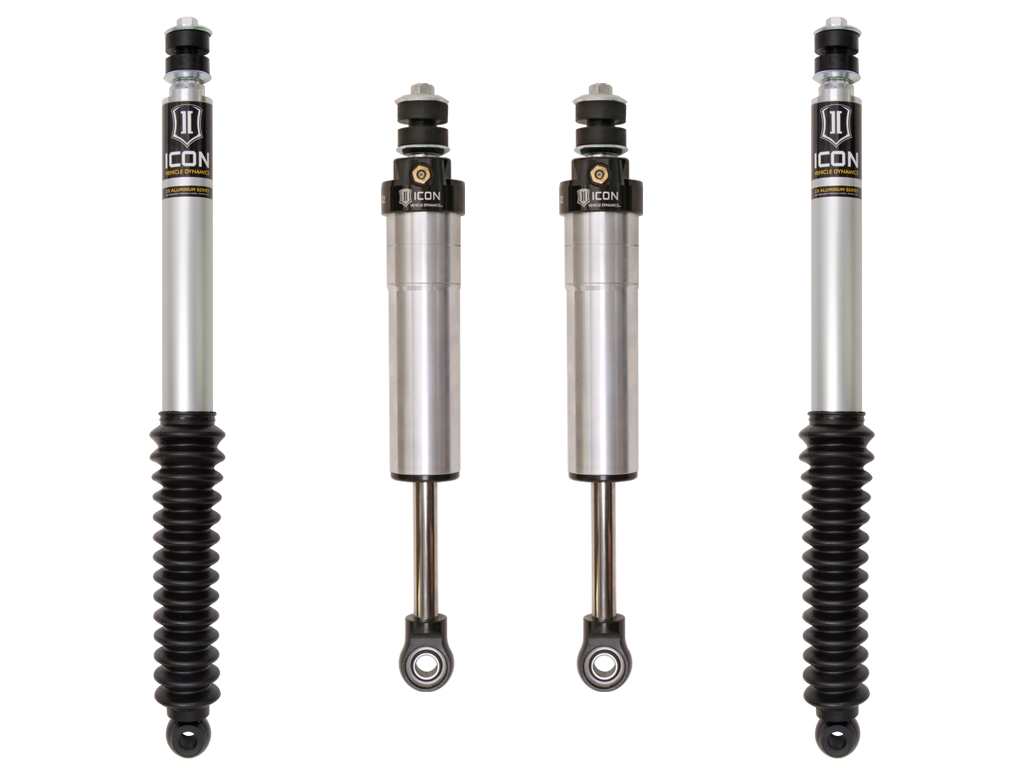

Lexus, Toyota (Coil) Suspension Shock Absorber Kit - Front and Rear - ICON Vehicle Dynamics - K53081

SHOCK ABSORBER KIT
K53081
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: 17x8.
5 with 4.
75” Backspace / 0mm Offset
Recommended Aftermarket Tires: 33" x 11.
50" (Larger tires may fit but fender trimming and modifications will be required.
)
APPLICATION NOTE #55: Shocks are fully serviceable.
Coilover heights indicated are for a stock equipped vehicle
APPLICATION NOTE #58: Kits consist of shocks only.
Additional components required to achieve desired lift height over stock.
APPLICATION NOTE #72: If alignment cams are adjusted to max inward setting (Negative Camber), arm will contact 2.
5 shock at full droop.
Aftermarket arm required.
APPLICATION NOTE #97: Not compatible with AHC equipped models
98-07 LAND CRUISER 100 / LEXUS LX470 SERIES 0-2" STAGE 1 SUSPENSION SYSTEM
ICON 2.
5” suspension systems lift your Toyota LC100 while improving ride quality and performance.
With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.
The 1998 - 2007 Toyota Land Cruiser 100 Series has a compact torsion bar IFS front suspension, and requires a lot of work to be done in a small space.
When lift is added via torsion bar adjustment there is even more spring energy that must be absorbed to adequately control the vehicle.
Understanding this, ICON engineers have developed a unique 2.
5 Aluminum Series front shock that can handle these demands.
With a lower spherical rod end bearing and heavy-duty upper stem bushings, deflection is kept to a minimum for precise control of the suspension even under high loads.
2.
0 Aluminum Series rear shocks are included in this stage to offer balanced damping front to rear.
Vehicle specific tuned front and rear shocks for superior shock damping and control
6061 Aircraft grade aluminum CNC machined components
2.
5 Aluminum Series front shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
FK rod end bearings for extended longevity and minimal deflection
2.
0 aluminum body rear IFP shock with 5/8" shaft
100% Bolt-on - no drilling, cutting or welding necessary for install
ICON 1998-2007 Toyota Land Cruiser/Lexus LX470, 0-2" Lift, Stage 1 Suspension System, K53081
ICON 1998-2007 Toyota Land Cruiser/Lexus LX470, 0-2" Lift, Stage 1 Suspension System
ICON 98-07 LAND CRUISER 100 / LEXUS LX470 SERIES 0-2" STAGE 1 SUSPENSION SYSTEM.

Detailed Fitment Results
Year Make Model 1998 Lexus LX470 1998 Toyota Land Cruiser 1999 Lexus LX470 1999 Toyota Land Cruiser 2000 Lexus LX470 2000 Toyota Land Cruiser 2001 Lexus LX470 2001 Toyota Land Cruiser 2002 Lexus LX470 2002 Toyota Land Cruiser 2003 Lexus LX470 2003 Toyota Land Cruiser 2004 Lexus LX470 2004 Toyota Land Cruiser 2005 Lexus LX470 2005 Toyota Land Cruiser 2006 Lexus LX470 2006 Toyota Land Cruiser 2007 Lexus LX470 2007 Toyota Land Cruiser
