08-21 Toyota Land Cruiser Suspension Lift Kit - Front and Rear - ICON Vehicle Dynamics - K53071

SUSPENSION SYSTEM
08-UP LC200 SERIES STAGE 1 SUSP SYSTEM
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 5.
75” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6.
00” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.
625” Backspace / 16mm Offset
Recommended Aftermarket Tires: 34" x 10.
50" (Larger tires may fit but fender trimming and modifications will be required.
)
APPLICATION NOTE #24: Factory UCA's Will Not Align Properly Past 2.
5” Of Lift.
Above 2.
5” Of Lift An Aftermarket UCA Is Recommended.
APPLICATION NOTE #55: Shocks Are Fully Serviceable.
Coilover Heights Indicated Are For A Stock Equipped Vehicle
APPLICATION NOTE #111: Bump Stop Spacer Kit Available That Can Be Installed To Increase Threads Showing Beyond Max Recommendation.
Ships in multiple boxes
08-UP LAND CRUISER 200 SERIES 1.
5-3.

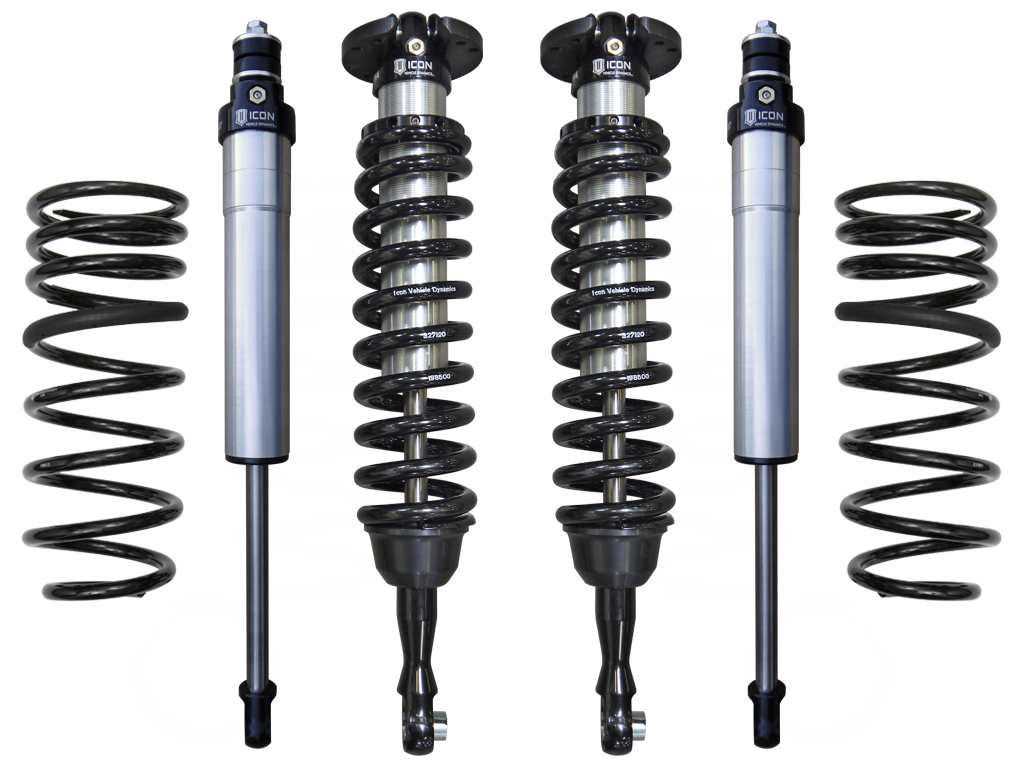

5" STAGE 1 SUSPENSION SYSTEM
2008-UP TOYOTA LAND CRUISER 200 SERIES 1.
5-3.
5" LIFT STAGE 1 SUSPENSION SYSTEM
The 200 Series Toyota Land Cruiser is a luxurious vehicle packed with “all the bells and whistles”, but underneath all of the sophistication it is still a very capable vehicle that sees heavy use both on and off-road worldwide.
While the 200 Series has exceptional ride characteristics in stock form, it is clear that the suspension is in need of a serious upgrade if the vehicle is to serve any measurable amount of time in the dirt.
ICON Vehicle Dynamics has addressed this need for a comprehensive suspension solution and is proud to re-introduce several suspension systems that drastically increase the overall ability of the 2008-UP Toyota Land Cruiser.
Bolt-on design means no cutting or welding necessary for install
Increased wheel travel and ride quality over stock
Improved vehicle dynamics and decreased body roll
Height adjustable coilovers provide 1.
5-3.
5" of lift height
ICON engineered dual rate rear coil springs
Vehicle-specific tuned front and rear shocks provide superior damping and control
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
2.
5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
Shocks are fully rebuildable and revalveable
ICON 2008-Up Toyota Land Cruiser, 1.
5-3.
5" Lift, Stage 3 Suspension System, K53071
ICON 2008-Up Toyota Land Cruiser, 1.
5-3.
5" Lift, Stage 1 Suspension System.

Detailed Fitment Results
Year Make Model 2008 Toyota Land Cruiser 2009 Toyota Land Cruiser 2010 Toyota Land Cruiser 2011 Toyota Land Cruiser 2013 Toyota Land Cruiser 2014 Toyota Land Cruiser 2015 Toyota Land Cruiser 2016 Toyota Land Cruiser 2017 Toyota Land Cruiser 2018 Toyota Land Cruiser 2019 Toyota Land Cruiser 2020 Toyota Land Cruiser 2021 Toyota Land Cruiser
