Toyota Suspension Lift Kit - Front and Rear - ICON Vehicle Dynamics - K53057

SUSPENSION SYSTEM
4RUNNER/FJ STAGE 7 SUSP SYS W BILLET UCA
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 4.
75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.
00” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.
00” Backspace / 0mm Offset
Recommended Aftermarket Tires: 33" x 11.
50" (Larger tires may fit but fender trimming and modifications will be required.
)
APPLICATION NOTE #35: Remote Reservoir Mounting Brackets May Interfere With Aftermarket Bumper Mounts / Windshield Washer Bottles
APPLICATION NOTE #47: 700Lb/In Expedition Coil Available For Heavier Equipped Vehicles
APPLICATION NOTE #55: Shocks Are Fully Serviceable.
Coilover Heights Indicated Are For A Stock Equipped Vehicle
Ships in multiple boxes
03-09 4RUNNER/FJ 0-3.
5" STAGE 7 SUSPENSION SYSTEM W BILLET UCA
03-09 4RUNNER/2007-2009 FJ CRUISER 0-3.
5" STAGE 7 SUSPENSION SYSTEM W BILLET UCA

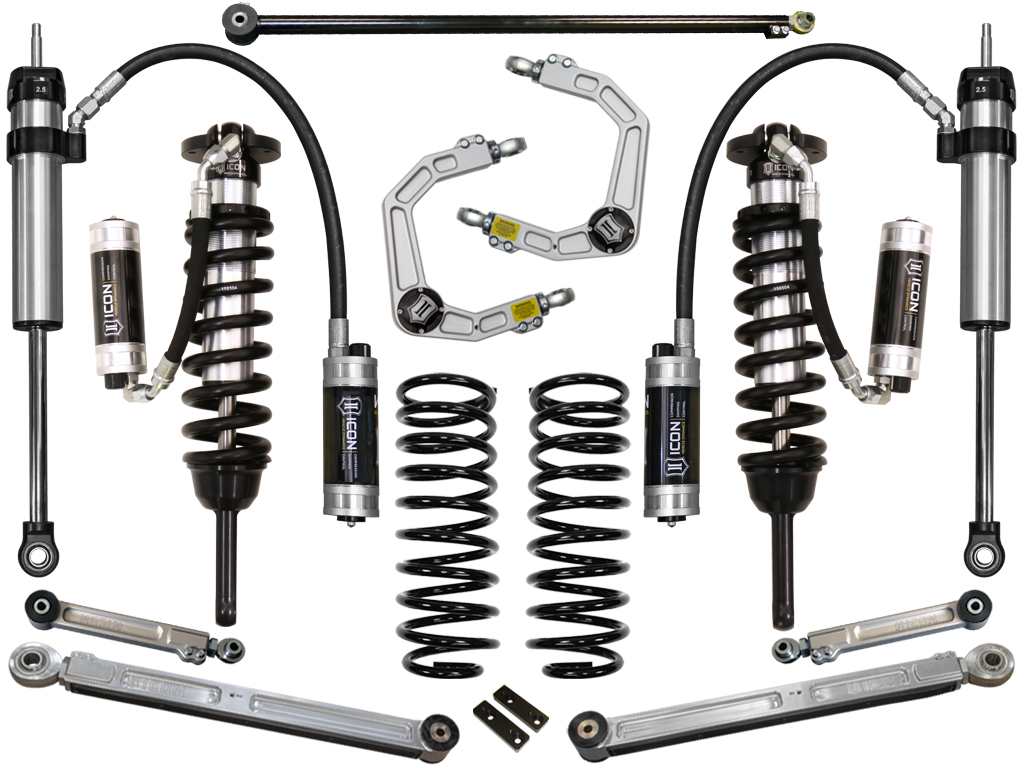

ICON’s 2003-2009 Toyota 4Runner/2007-2009 FJ Cruiser Stage 7 suspension system provides the ultimate level of on and off-road performance of the vehicle.
This system includes all of the components featured in the Stage 6 setup - ICON billet aluminum Delta Joint upper control arm kit, 2.
5 Series Remote Reservoir front coilovers and 2.
5 Aluminum Series rear shocks, 2” rear coil springs, adjustable rear track bar, and a billet aluminum rear upper and lower link arm kit - but sees the addition of ICON's Compression Damping Control Valve (CDCV) front and rear.
The easy-to-adjust CDC Valve allows for end-user compression changes to provide optimal ride quality across all types of terrain and vehicle cargo configurations.
The remote reservoir design allows for increased shock oil volume and enhanced cooling so that the rear of the vehicle can work harder for longer durations without noticeable “fade” occurring.
The 2.
5 Aluminum Series Remote Reservoir rear shocks also feature ICON’s “Bump Zone” technology which significantly increases damping ability in the last 2” of compression travel, preventing harsh bottom-out sensation and giving the vehicle a much more controlled ride quality over varying terrain.
ICON's billet aluminum links are much stronger than the OE units, feature a greaseable dual stage bushing, and can be adjusted for optimal pinion angle.
On top of it all, these links have been designed to provide correct roll steer geometry for the best possible handling on and off-road.
This system features upper control arms with ICON's patented Delta Joint.
The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball.
While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements.
The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint.
Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation.
What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
Increased wheel travel and ride quality over stock
Vehicle specific tuned front and rear shocks for superior shock damping and control
CDC Valve technology allows for quick and easy compression damping adjustment without the need for tools
Adjustable coilovers provide 0-3.
5" of front lift height
Extended Travel remote reservoir coilovers matched with ICON UCAs provide increased front droop travel
Billet Aluminum rear upper and lower links offer on vehicle pinion angle adjustment
6061 aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
FK Rod End bearings for extended longevity and minimal deflection
2.
5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
Adjustable rear track bar proper rear axle placement under vehicle
Bolt-on system means no cutting or welding necessary for install
ICON 03-09 4Runner/FJ Cruiser 0-3.
5" Lift, Stage 7 Suspension System, Billet UCA, K53057
ICON 03-09 4Runner/FJ Cruiser 0-3.
5" Lift, Stage 7 Suspension System, Billet UCA.

Detailed Fitment Results
Year Make Model 2003 Toyota 4Runner 2004 Toyota 4Runner 2005 Toyota 4Runner 2006 Toyota 4Runner 2007 Toyota 4Runner 2007 Toyota FJ Cruiser 2008 Toyota 4Runner 2008 Toyota FJ Cruiser 2009 Toyota 4Runner 2009 Toyota FJ Cruiser
