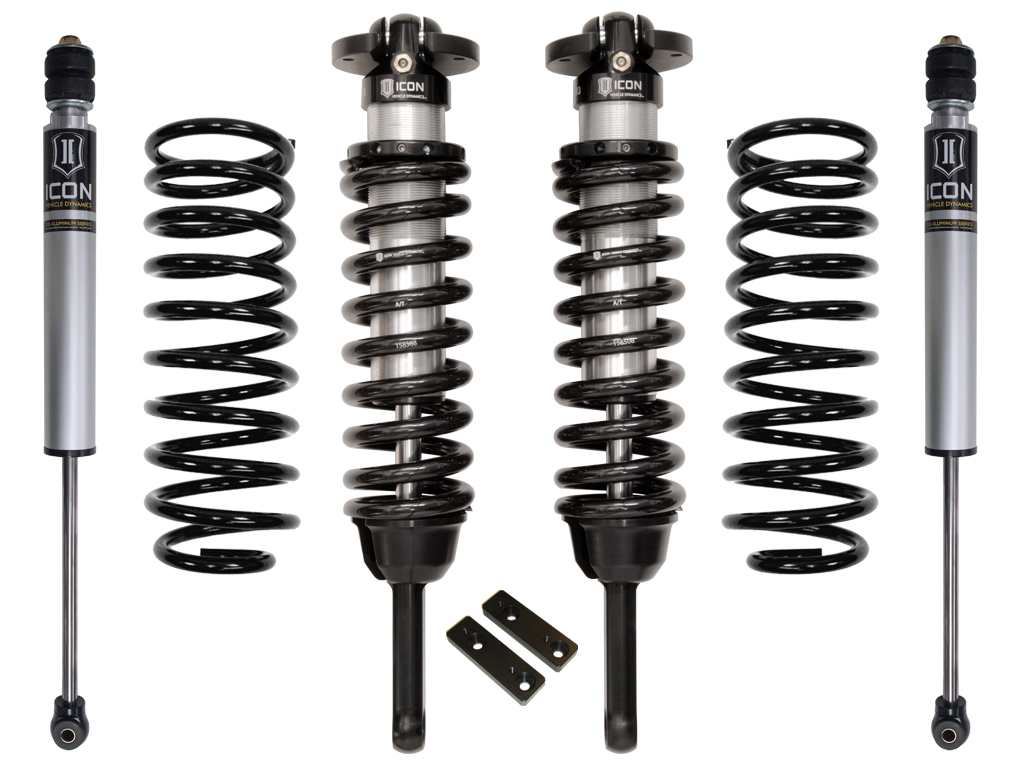

Toyota Suspension Lift Kit - Front and Rear - ICON Vehicle Dynamics - K53051

SUSPENSION SYSTEM
03-09 4RUNNER/FJ 0-3.
5" STAGE 1 SUSP SYS
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 4.
75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.
00” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.
00” Backspace / 0mm Offset
Recommended Aftermarket Tires: 33" x 11.
50" (Larger tires may fit but fender trimming and modifications will be required.
)
APPLICATION NOTE #47: 700Lb/In Expedition Coil Available For Heavier Equipped Vehicles
APPLICATION NOTE #55: Shocks Are Fully Serviceable.
Coilover Heights Indicated Are For A Stock Equipped Vehicle
Ships in multiple boxes
03-09 4RUNNER/FJ 0-3.
5" STAGE 1 SUSPENSION SYSTEM
2003-2009 4RUNNER/2007-2009 FJ CRUISER 0-3.
5" LIFT STAGE 1 SUSPENSION SYSTEM
This is our entry level suspension system for the 2003-2009 Toyota 4Runner and 2007-2009 FJ Cruiser.
The Stage 1 system works well in most on and off-road scenarios by significantly improving factory body roll and overall driving ability.
ICON 2.
5 Series front coilover shocks feature a vehicle-specific tune to give your Toyota 4Runner/FJ Cruiser great ride quality on or off-road, and they are adjustable from 0 to 3.
5" of lift.
Our rear 2.
0 Aluminum Series shocks in this system are tuned to match the front 2.
5 Series coilovers in every aspect, providing smooth and consistent damping performance front to rear.
This system is finished off with a pair of 2" lift rear coil springs that have been engineered to further improve ride quality and handling.
Increased wheel travel and ride quality over stock
Vehicle specific tuned front and rear shocks for superior shock damping and control
Adjustable coilovers provide 0-3.
5" of lift height
6061 aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock body with 7/8" shaft
FK Rod End bearings for extended longevity and minimal deflection
2.
0 Aluminum Series rear IFP shock with 5/8" shaft
Bolt-on system means no cutting or welding necessary for install
ICON 2003-09 Toyota 4Runner/FJ Cruiser 0-3.
5" Lift, Stage 1 Suspension System, K53051
ICON 2003-09 Toyota 4Runner/FJ Cruiser 0-3.
5" Lift, Stage 1 Suspension System.

Detailed Fitment Results
Year Make Model 2003 Toyota 4Runner 2004 Toyota 4Runner 2005 Toyota 4Runner 2006 Toyota 4Runner 2007 Toyota 4Runner 2007 Toyota FJ Cruiser 2008 Toyota 4Runner 2008 Toyota FJ Cruiser 2009 Toyota 4Runner 2009 Toyota FJ Cruiser
