00-06 Toyota Tundra Suspension Lift Kit - Front and Rear - ICON Vehicle Dynamics - K53031

SUSPENSION SYSTEM
K53031
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 4.
75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.
00” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.
00” Backspace / 0mm Offset
Recommended Aftermarket Tires: 33" x 11.
50" (Larger tires may fit but fender trimming and modifications will be required.
)
APPLICATION NOTE #47: 700Lb/In Expedition Coil available for heavier equipped vehicles
APPLICATION NOTE #55: Shocks are fully serviceable.
Coilover heights indicated are for a stock equipped vehicle
APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation.
00-06 TUNDRA 0-2.
5" STAGE 1 SUSPENSION SYSTEM
ICON Toyota Tundra Stage 1 suspension systems are designed with maximum performance in mind.
Their primary focus is to increase wheel travel and damping ability, translating into outstanding vehicle control and ride quality on and off-road.
ICON Vehicle Dynamics Toyota Tundra Stage 1 suspension systems are designed with maximum performance and the serious driver in mind.
ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road.

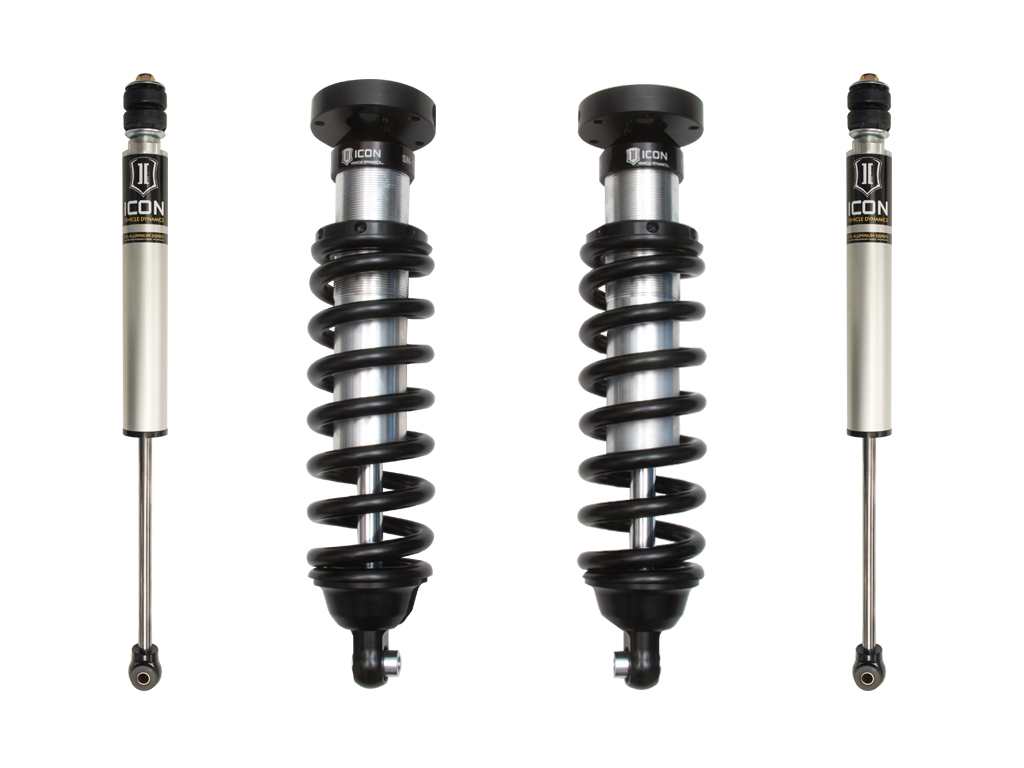

The Stage 1 system includes vehicle-specific tuned 2.
5” coilover shocks featuring an internal reservoir for exceptional cooling properties.
These coilovers are also height adjustable from 0-2.
5” allowing the use of larger, more aggressive wheel and tire combinations.
ICON 2.
0 VS Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear.
The ICON Vehicle Dynamics 2000 - 2006 Toyota Tundra Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Increased wheel travel and ride quality over stock with no change in towing capacity
Vehicle specific tuned front and rear shocks for superior shock damping and control
Adjustable coilovers from 0-2.
5" of lift height
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock body with 7/8 shaft
FK rod end bearings for extended longevity and minimal deflection
2.
0 VS Aluminum Series with 5/8" polished chrome shafts
100% Bolt-on system - no drilling, cutting, or welding necessary for install
ICON 2000-2006 Toyota Tundra, 0-2.
5" Lift, Stage 1 Suspension System, K53031
ICON 2000-2006 Toyota Tundra, 0-2.
5" Lift, Stage 1 Suspension System
ICON 00-06 TUNDRA 0-2.
5" STAGE 1 SUSPENSION SYSTEM.

Detailed Fitment Results
Year Make Model 2000 Toyota Tundra 2001 Toyota Tundra 2002 Toyota Tundra 2003 Toyota Tundra 2004 Toyota Tundra 2005 Toyota Tundra 2006 Toyota Tundra
