07-21 Toyota Tundra Suspension Lift Kit - Front and Rear - ICON Vehicle Dynamics - K53026

SUSPENSION SYSTEM
07-21 TUNDRA STG 6 SUSP SYS W BILLET UCA
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 5.
75” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6.
00” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.
625” Backspace / 16mm Offset
Recommended Aftermarket Tires: 35" x 12.
50" (Larger tires may fit but fender trimming and modifications will be required.
)
APPLICATION NOTE #55: Shocks Are Fully Serviceable.
Coilover Heights Indicated Are For A Stock Equipped Vehicle
APPLICATION NOTE #110: Trimming Required For Recommended Tire Size
APPLICATION NOTE #111: Bump Stop Spacer Kit Available That Can Be Installed To Increase Threads Showing Beyond Max Recommendation.
APPLICATION NOTE #122: Not Compatible With Rear Trd Sway Bar Kit
Ships in Multiple Boxes

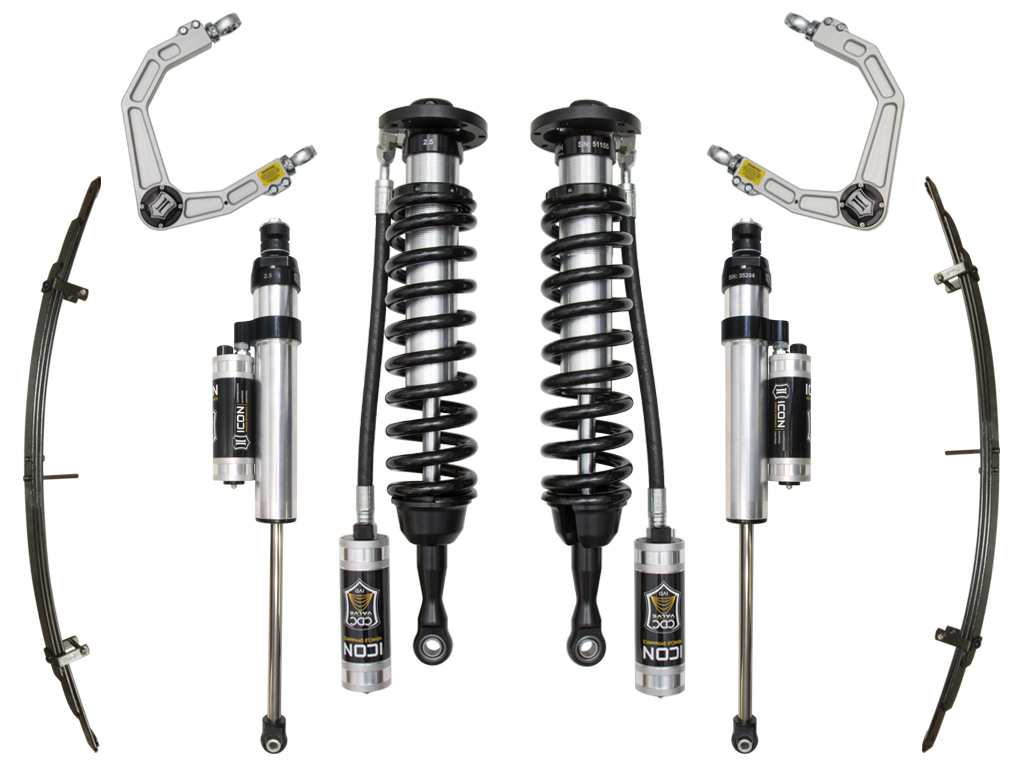

07-21 TUNDRA 1-3" STAGE 6 SUSPENSION SYSTEM W BILLET UCA
2007-2021 TOYOTA TUNDRA 1-3" LIFT STAGE 6 SUSPENSION SYSTEM WITH BILLET UCA
ICON Vehicle Dynamics Toyota Tundra Stage 6 suspension systems are designed with maximum performance and the serious driver in mind.
ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road.
The Stage 6 system includes vehicle-specific tuned 2.
5” coilover shocks featuring remote reservoirs for exceptional cooling properties and includes our Compression Damping Control Valve (CDCV) for 10 clicks of tool free adjustment.
These coilovers are also height adjustable from 1-3” of lift over stock, allowing the use of larger, more aggressive wheel and tire combinations.
ICON 2.
5 Aluminum Series rear shocks utilize our CDCV valving that makes your suspension tunable front and rear.
The ICON Vehicle Dynamics 2007-2021 Toyota Tundra Stage 6 suspension system is an excellent choice for those drivers looking to tune the capabilities of their pickup on the road as well as in the dirt.
This system features upper control arms with ICON's patented Delta Joint.
The Delta Joint is a heavy duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball.
While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements.
The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint.
Metal on metal construction and a greasable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation.
What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
Increased wheel travel and ride quality over stock with no change in towing capacity
CDC tuned front and rear shocks for a custom tuneable ride
Adjustable coilovers from 1-3" of lift height
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
FK rod end bearings for extended longevity and minimal deflection
2.
5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
Rear expansion pack for 1.
5” of lift and better ride quality
100% Bolt-on system - no drilling, cutting, or welding necessary for install
ICON 2007-21 Toyota Tundra, 1-3" Lift, Stage 6 Suspension System, Billet UCA, K53026
ICON 2007-21 Toyota Tundra, 1-3" Lift, Stage 6 Suspension System, Billet UCA.

Detailed Fitment Results
Year Make Model 2007 Toyota Tundra 2008 Toyota Tundra 2009 Toyota Tundra 2010 Toyota Tundra 2011 Toyota Tundra 2012 Toyota Tundra 2013 Toyota Tundra 2014 Toyota Tundra 2015 Toyota Tundra 2016 Toyota Tundra 2017 Toyota Tundra 2018 Toyota Tundra 2019 Toyota Tundra 2020 Toyota Tundra 2021 Toyota Tundra
