07-21 Toyota Tundra Suspension Lift Kit - Front and Rear - ICON Vehicle Dynamics - K53024

SUSPENSION SYSTEM
07-21 TUNDRA STAGE 4 SUSPENSION SYS
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 5.
75” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6.
00” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.
625” Backspace / 16mm Offset
Recommended Aftermarket Tires: 35" x 12.
50" (Larger tires may fit but fender trimming and modifications will be required.
)
APPLICATION NOTE #24: Factory UCA's Will Not Align Properly Past 2.
5” Of Lift.
Above 2.
5” Of Lift An Aftermarket UCA Is Recommended.
APPLICATION NOTE #55: Shocks Are Fully Serviceable.
Coilover Heights Indicated Are For A Stock Equipped Vehicle
APPLICATION NOTE #110: Trimming Required For Recommended Tire Size
APPLICATION NOTE #111: Bump Stop Spacer Kit Available That Can Be Installed To Increase Threads Showing Beyond Max Recommendation.
APPLICATION NOTE #122: Not Compatible With Rear Trd Sway Bar Kit
Ships in Multiple Boxes
07-21 TUNDRA 1-3" STAGE 4 SUSPENSION SYSTEM
2007-2021 TOYOTA TUNDRA 1-3" LIFT STAGE 4 SUSPENSION SYSTEM
ICON Vehicle Dynamics Toyota Tundra Stage 4 suspension systems are designed with maximum performance and the serious driver in mind.
ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road.

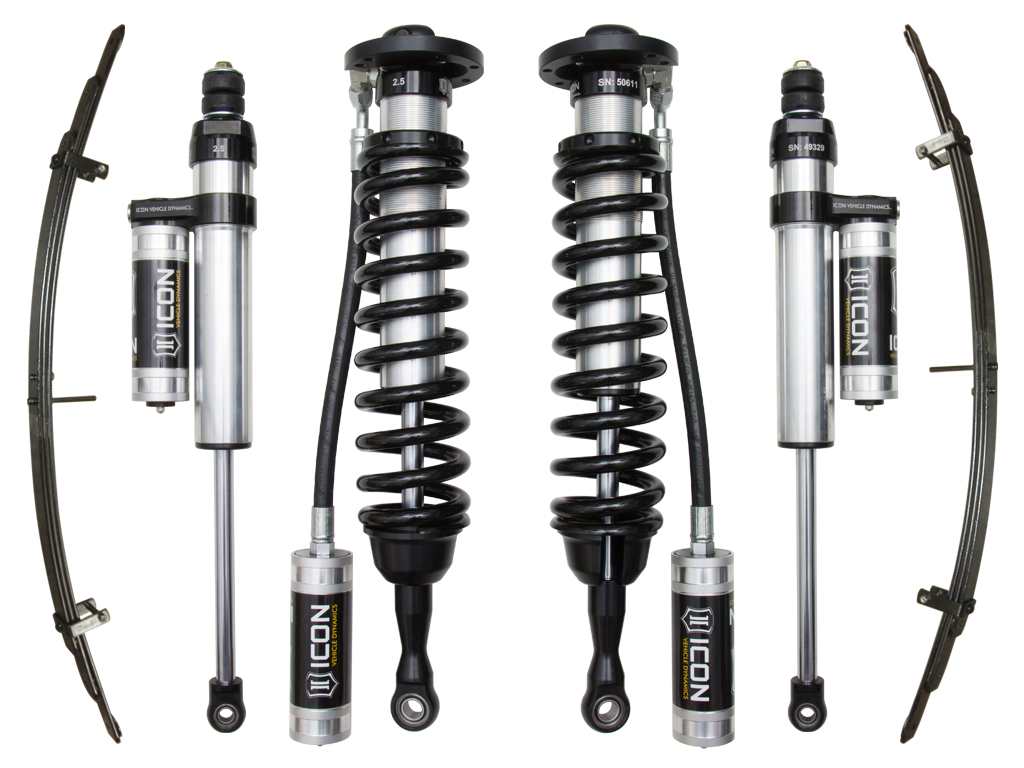

The Stage 4 system includes vehicle-specific tuned 2.
5” coilover shocks featuring a remote reservoir for exceptional cooling properties.
These coilovers are also height adjustable from 1-3” of lift allowing the use of larger, more aggressive wheel and tire combinations.
ICON 2.
5 Aluminum Series piggyback rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear.
The ICON Vehicle Dynamics 2007-2021 Toyota Tundra Stage 4 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Increased wheel travel and ride quality over stock with no change in towing capacity
Vehicle specific tuned front and rear shocks for superior shock damping and control
Adjustable coilovers from 1-3" of lift height
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock body with 7/8" shaft
FK rod end bearings for extended longevity and minimal deflection
Rear 2.
5 Aluminum Series piggyback shocks with one-piece impact extruded aluminum cylinders and 7/8" shafts
Rear expansion pack for 1.
5” of lift and better ride quality
100% Bolt-on system - no drilling, cutting, or welding necessary for install
ICON 2007-2021 Toyota Tundra, 1-3" Lift, Stage 4 Suspension System, K53024
ICON 2007-2021 Toyota Tundra, 1-3" Lift, Stage 4 Suspension System.

Detailed Fitment Results
Year Make Model 2007 Toyota Tundra 2008 Toyota Tundra 2009 Toyota Tundra 2010 Toyota Tundra 2011 Toyota Tundra 2012 Toyota Tundra 2013 Toyota Tundra 2014 Toyota Tundra 2015 Toyota Tundra 2016 Toyota Tundra 2017 Toyota Tundra 2018 Toyota Tundra 2019 Toyota Tundra 2020 Toyota Tundra 2021 Toyota Tundra
