95-04 Toyota Tacoma (4WD/RWD) Suspension Lift Kit - ICON Vehicle Dynamics - K53013

SUSPENSION SYSTEM
K53013
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 4.
75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.
00” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.
00” Backspace / 0mm Offset
Recommended Aftermarket Tires: 33" x 11.
50" (Larger tires may fit but fender trimming and modifications will be required.
)
APPLICATION NOTE #47: 700Lb/In Expedition Coil available for heavier equipped vehicles
APPLICATION NOTE #55: Shocks are fully serviceable.
Coilover heights indicated are for a stock equipped vehicle
APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation
APPLICATION NOTE #185: Will not fit 2WD Tacoma with 5 wheel lug studs
95.
5-04 TACOMA 0-3" STAGE 3 SUSPENSION SYSTEM
ICON Tacoma suspension systems are designed with maximum performance and the serious driver in mind.
ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road.
ICON Vehicle Dynamics Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind.
ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road.

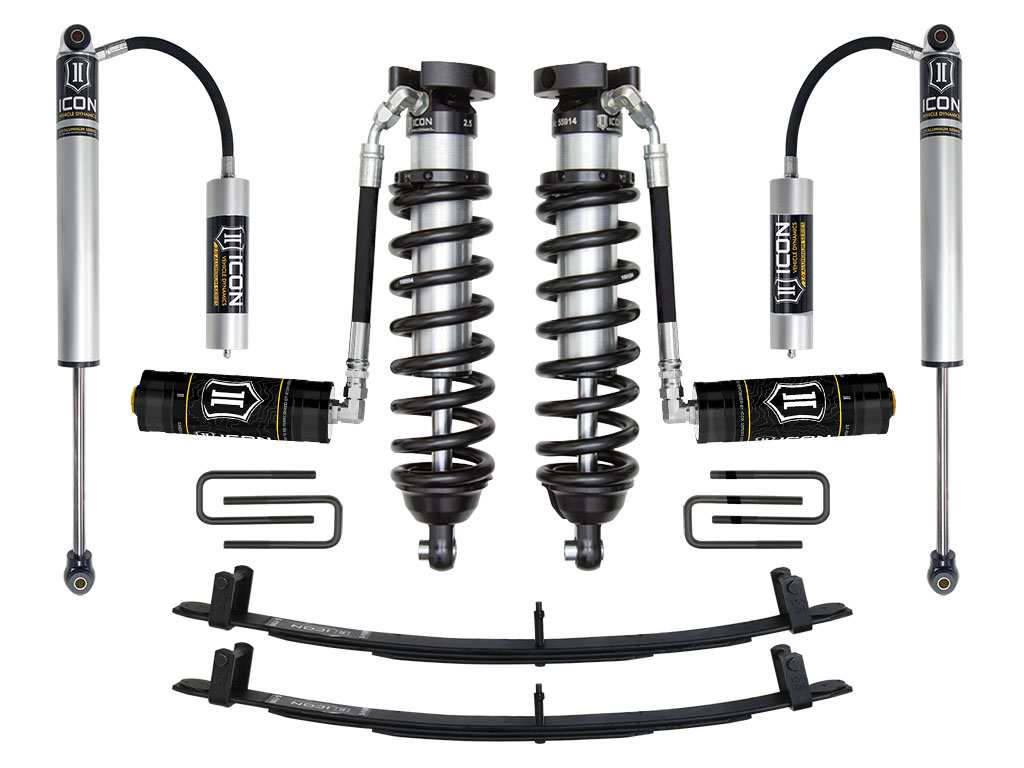

The Stage 3 system includes vehicle-specific tuned 2.
5” coilover shocks featuring a remote reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel.
These coilovers are also height adjustable from 0-3” allowing the use of larger, more aggressive wheel and tire combinations.
ICON 2.
0 Aluminum Series remote reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear.
The ICON Vehicle Dynamics 96-04 Toyota Tacoma 4WD/PreRunner Stage 3 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Increased wheel travel and ride quality over stock with no change in towing capacity
Vehicle specific tuned front and rear shocks for superior shock damping and control
Adjustable remote reservoir coilovers from 0-3" of lift height
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock body with 7/8" hardened chrome shaft
FK rod end bearings for extended longevity and minimal deflection
2.
0 aluminum body rear remote reservoir shock with 5/8" polished chrome plated steel shaft
100% Bolt-on system - no drilling, cutting, or welding necessary for install
ICON 1995.
5-2004 Toyota Tacoma, 0-3" Lift, Stage 3 Suspension System, K53013
ICON 1995.
5-2004 Toyota Tacoma, 0-3" Lift, Stage 3 Suspension System
ICON 95.
5-04 TACOMA 0-3" STAGE 3 SUSPENSION SYSTEM.

Detailed Fitment Results
Year Make Model Submodel 1995 Toyota Tacoma Base 1995 Toyota Tacoma DLX 1995 Toyota Tacoma SR5 1996 Toyota Tacoma Base 1996 Toyota Tacoma DLX 1996 Toyota Tacoma SR5 1997 Toyota Tacoma Base 1997 Toyota Tacoma DLX 1997 Toyota Tacoma SR5 1998 Toyota Tacoma Base 1998 Toyota Tacoma DLX 1998 Toyota Tacoma SR5 1998 Toyota Tacoma Pre Runner 1998 Toyota Tacoma Limited 1999 Toyota Tacoma Base 1999 Toyota Tacoma DLX 1999 Toyota Tacoma SR5 1999 Toyota Tacoma Pre Runner 1999 Toyota Tacoma Limited 2000 Toyota Tacoma Base 2000 Toyota Tacoma DLX 2000 Toyota Tacoma SR5 2000 Toyota Tacoma Pre Runner 2000 Toyota Tacoma Limited 2001 Toyota Tacoma Base 2001 Toyota Tacoma DLX 2001 Toyota Tacoma Pre Runner 2002 Toyota Tacoma Base 2002 Toyota Tacoma DLX 2002 Toyota Tacoma Pre Runner 2003 Toyota Tacoma Base 2003 Toyota Tacoma DLX 2003 Toyota Tacoma Pre Runner 2004 Toyota Tacoma Base 2004 Toyota Tacoma Pre Runner
