05-23 Toyota Tacoma (4WD) Suspension Lift Kit - Front and Rear - ICON Vehicle Dynamics - K53002

SUSPENSION SYSTEM
K53002
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5 with 4.
75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5.
00” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5.
00” Backspace / 0mm Offset
Recommended Aftermarket Tires: 33" x 11.
50" (Larger tires may fit but fender trimming and modifications will be required.
)
APPLICATION NOTE #47: 700Lb/In Expedition Coil available for heavier equipped vehicles
APPLICATION NOTE #55: Shocks are fully serviceable.
Coilover heights indicated are for a stock equipped vehicle
APPLICATION NOTE #109: 2016-2023 Tacoma Llft range Is 0-2.
75”
APPLICATION NOTE #110: Trimming required for recommended tire size
APPLICATION NOTE #111: Bump Stop Spacer Kit 51045 can be installed to increase preload.
25” beyond maximum
TECH NOTE: Not compatible with 2005-2015 2WD 5-Lug Toyota Tacoma models
TECH NOTE: 2017-2023 Tacoma TRD Pro models will have front lift height range of 0-1.
25" over stock and rear lift height of 1" over stock
05-15 TACOMA 0-3.
5"/16-23 0-2.
75" STAGE 2 SUSPENSION SYSTEM
ICON Tacoma suspension systems are designed with maximum performance and the serious driver in mind.
ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road.
ICON Vehicle Dynamics Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind.
ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road.

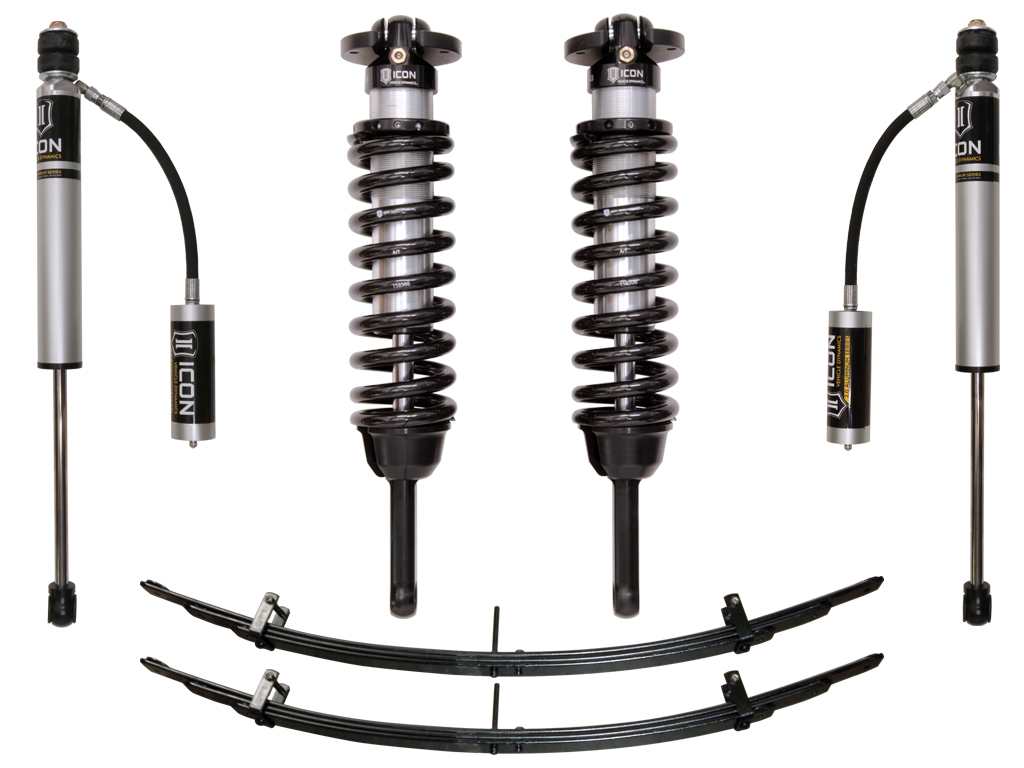

The Stage 2 system includes vehicle-specific tuned 2.
5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel.
These coilovers are also height adjustable from 0-3.
5” of lift on 2005-2015 or 0-2.
75” on 2016-2023 models allowing the use of larger, more aggressive wheel and tire combinations.
Remote reservoir ICON 2.
0 Aluminum Series rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear.
The included rear Add-A-Leaf Kit Installs in place of the factory overload leaves and effectively lowers the rear spring rate by approximately 10% for a more compliant ride while also providing 1.
5" of rear lift over stock.
The ICON Vehicle Dynamics 2005-2023 Toyota Tacoma Stage 2 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Increased wheel travel and ride quality over stock
Vehicle specific tuned front and rear shocks for superior shock damping and control
Adjustable coilovers provide up to 3.
5" of front lift height on 2005-2015 models and up to 2.
75" on 2016-2023 models
6061 aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
FK Rod End bearings for extended longevity and minimal deflection
ICON engineered coil springs
2.
0 Aluminum Series remote reservoir rear shocks with 5/8" shafts
Add-A-Leaf Kit replaces OE overload leaf spring for more compliant ride quality and 1.
5" of rear lift
Simple, bolt-on installation
ICON 2005-2015 Toyota Tacoma 0-3.
5" Lift/2016-2023 Tacoma 0-2.
75" Lift, Stage 2 Suspension System, K53002
ICON 2005-2015 Toyota Tacoma 0-3.
5" Lift/2016-2023 Tacoma 0-2.
75" Lift, Stage 2 Suspension System
ICON 05-15 TACOMA 0-3.
5"/16-23 0-2.
75" STAGE 2 SUSPENSION SYSTEM.

Detailed Fitment Results
Year Make Model Submodel 2005 Toyota Tacoma Base 2005 Toyota Tacoma Pre Runner 2006 Toyota Tacoma Base 2006 Toyota Tacoma Pre Runner 2006 Toyota Tacoma SR5 Prerunner 2006 Toyota Tacoma TRD Sport Prerunner 2006 Toyota Tacoma Base Prerunner 2007 Toyota Tacoma Base 2007 Toyota Tacoma Pre Runner 2007 Toyota Tacoma SR5 Prerunner 2007 Toyota Tacoma TRD Sport Prerunner 2008 Toyota Tacoma Base 2008 Toyota Tacoma Pre Runner 2008 Toyota Tacoma SR5 Prerunner 2008 Toyota Tacoma TRD Sport Prerunner 2009 Toyota Tacoma Base 2009 Toyota Tacoma Pre Runner 2009 Toyota Tacoma SR5 Prerunner 2009 Toyota Tacoma TRD Sport Prerunner 2010 Toyota Tacoma Base 2010 Toyota Tacoma Pre Runner 2010 Toyota Tacoma TRD Sport 2011 Toyota Tacoma Base 2011 Toyota Tacoma Pre Runner 2011 Toyota Tacoma TRD Sport 2012 Toyota Tacoma Base 2012 Toyota Tacoma Pre Runner 2012 Toyota Tacoma TRD Sport 2013 Toyota Tacoma Base 2013 Toyota Tacoma Pre Runner 2013 Toyota Tacoma TRD Sport 2014 Toyota Tacoma Base 2014 Toyota Tacoma Pre Runner 2014 Toyota Tacoma TRD Sport 2015 Toyota Tacoma Base 2015 Toyota Tacoma Pre Runner 2015 Toyota Tacoma TRD Sport 2015 Toyota Tacoma TRD Pro 2016 Toyota Tacoma SR5 2016 Toyota Tacoma Edicion Especial 2016 Toyota Tacoma TRD Off-Road 2016 Toyota Tacoma Limited 2016 Toyota Tacoma TRD Sport 2016 Toyota Tacoma SR 2017 Toyota Tacoma SR5 2017 Toyota Tacoma Edicion Especial 2017 Toyota Tacoma TRD Off-Road 2017 Toyota Tacoma Limited 2017 Toyota Tacoma TRD Sport 2017 Toyota Tacoma SR 2017 Toyota Tacoma TRD Pro 2017 Toyota Tacoma Sport 2018 Toyota Tacoma SR5 2018 Toyota Tacoma Edicion Especial 2018 Toyota Tacoma TRD Off-Road 2018 Toyota Tacoma Limited 2018 Toyota Tacoma TRD Sport 2018 Toyota Tacoma SR 2018 Toyota Tacoma TRD Pro 2018 Toyota Tacoma Sport 2019 Toyota Tacoma SR5 2019 Toyota Tacoma Edicion Especial 2019 Toyota Tacoma TRD Off-Road 2019 Toyota Tacoma Limited 2019 Toyota Tacoma TRD Sport 2019 Toyota Tacoma SR 2019 Toyota Tacoma TRD Pro 2019 Toyota Tacoma Sport 2020 Toyota Tacoma SR5 2020 Toyota Tacoma Edicion Especial 2020 Toyota Tacoma TRD Off-Road 2020 Toyota Tacoma Limited 2020 Toyota Tacoma TRD Sport 2020 Toyota Tacoma SR 2020 Toyota Tacoma TRD Pro 2020 Toyota Tacoma Sport 2021 Toyota Tacoma SR5 2021 Toyota Tacoma Edicion Especial 2021 Toyota Tacoma TRD Off-Road 2021 Toyota Tacoma Li…
