21-23 Ford Bronco Suspension Lift Kit - Front and Rear - ICON Vehicle Dynamics - K40015X

SUSPENSION SYSTEM
K40015X
OEM Wheels and Tires Fitment: No
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 4.
75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.
00” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.
00” Backspace / 0mm Offset
Recommended Aftermarket Tires: 35" x 12.
50" (37" tires require coilover bump stop spacers along with minor trimming)
APPLICATION NOTE #66: 2 Door Models Will Sit Taller Than 4 Door Models.
APPLICATION NOTE #132: When Running 37" Tires Use Up Travel Limiters Part #611075 In The Front
APPLICATION NOTE #133: When Running 37" Tires Use Up Travel Limiters Part #611074 For The Rear
APPLICATION NOTE #134: Lift Heights and App Notes Based On Sasquatch Equipped Vehicles
APPLICATION NOTE #150: Shocks Are Fully Serviceable
APPLICATION NOTE #186: Rear reservoir brackets may interfere with some aftermarket step or rock slider mounts.
Modifications may be required.
TECH NOTE: Fitment testing done with ICON and OE steering components.
Due to tight clearances to front coilovers, certain aftermarket steering components may not be compatible.
TECH NOTE: ICON Heavy Rate Rear Coil Springs are optimized for increased rear ride height on Broncos with additional weight added to the rear.
ICON Heavy Rate Rear Coil Springs will result in a slight positive rake when the Bronco is unloaded.
For near stock weight Broncos, consider part number K40015.
TECH NOTE: Bronco Everglades will have front lift height range of 1.
5-2.
5" over stock
TECH NOTE: Not compatible with Bronco Raptor
21-23 BRONCO SASQUATCH 2-3" LIFT STAGE 5 SUSPENSION SYSTEM BILLET HEAVY RATE
ICON suspension systems lift your Ford Bronco while improving ride quality and performance.
With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.
The ICON Vehicle Dynamics Stage 5 Suspension System for the 2021-2023 Ford Bronco features our precision-manufactured, custom valved remote reservoir coilover shocks to yield the maximum travel possible along with superior ride quality and suspension performance both on and off-road.
These coilovers also allow for the adjustment of ride height to yield 2-3” of front lift and 1.
25-2.
25” of rear lift over stock 4-door Broncos equipped with the Sasquatch Package.
Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade, ensuring sustained shock performance at speed through rough terrain.
To accommodate the increased travel and lift height afforded by the ICON Coilovers, this Stage 5 kit comes with Billet Aluminum Upper Control Arms which provide on-vehicle caster and camber adjustability and feature our patented Delta Joint PRO, which allows for up to 90-degrees freedom of movement.

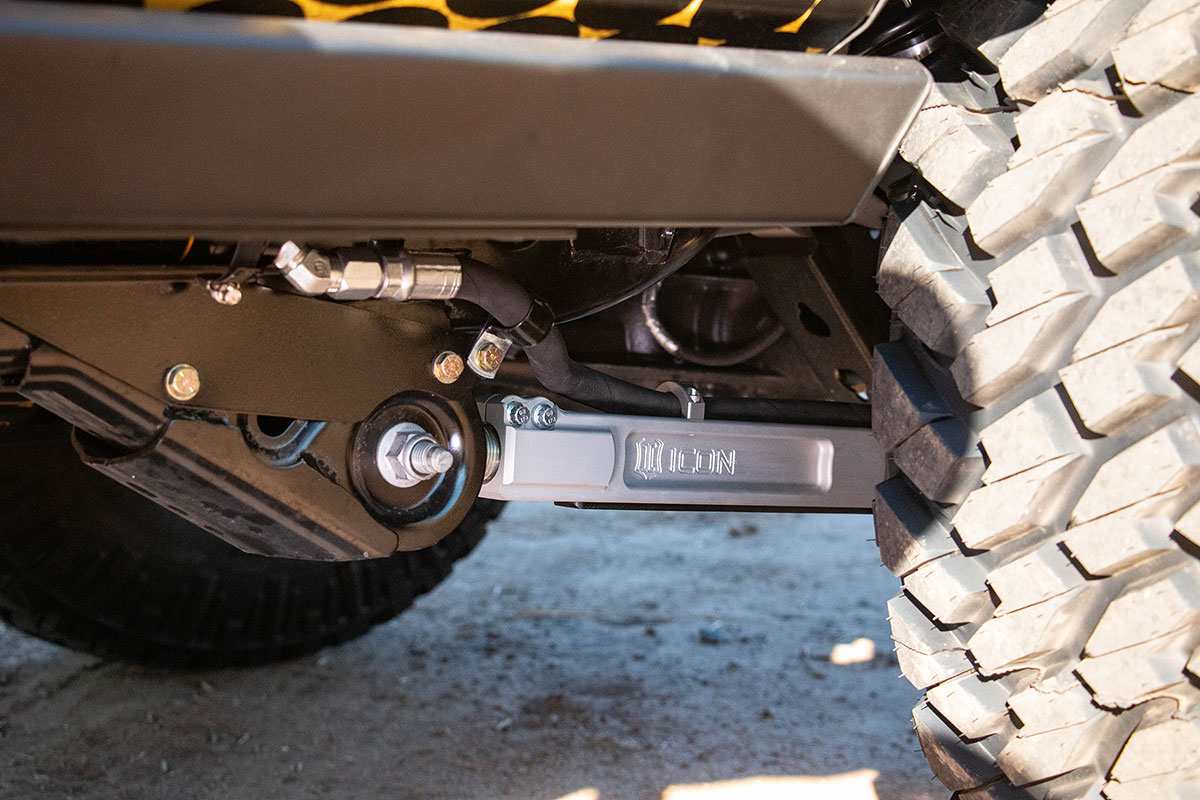

Stage 5 begins to free up the Bronco's rear suspension articulation while gaining strength and ground clearance with the addition of ICON billet aluminum rear lower suspension links.
These links employ dual-durometer greaseless bushings at one end, and massive FK rod ends at the other to provide the best combination of free articulation and ride quality.
These billet links also feature on-vehicle length adjustment and replaceable rock skids.
The rear coilovers are mounted in a shaft up orientation and feature unique ICON engineered progressive dual rate coil springs that provide extra weight capacity for those who frequently load out their Broncos with extra gear and equipment while maintaining excellent on- and off-road performance characteristics.
This suspension system is designed to provide up to 11.
5" of front suspension travel and 14" of rear suspension travel when used with 35X12.
50 tires.
It may be safely used with 37" and larger tires if using the optional up-travel limiters (sold separately).
Improved suspension performance and ride quality over stock
Up to 11.
5" front / 14” rear wheel travel with 35” tire fitment
Vehicle specific tuned remote reservoir front and rear coilover shocks for superior damping and vehicle control, even under hard use
Adjustable coilovers yield up to 2-3" of front lift height and 1.
25-2.
25” of rear lift height over stock 4-door Broncos equipped with the Sasquatch package
PTFE lined spherical bearings and application specific mounting hardware
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock bodies with 7/8” diameter shafts
ICON engineered coil springs featuring a unique dual rate rear coil design with increased spring rates for heavier equipped Broncos
High strength alloy CNC machined lower bar pins
Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
UCAs feature the patented (U.
S.
Pat.
10,731,700) Delta Joint Pro with 90 degrees of total articulation.
Billet rear lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
100% Bolt-on system - no drilling, cutting, or welding necessary for install
ICON 2021-2023 Ford Bronco, Sasquatch, 2-3" Lift, Stage 5 Suspension System, Billet, Heavy Rate Rear Spring, K40015X
ICON 2021-2023 Ford Bronco, Sasquatch, 2-3" Lift, Stage 5 Suspension System, Billet, Heavy Rate Rear Spring
ICON 21-23 BRONCO SASQUATCH 2-3" LIFT STAGE 5 SUSPENSION SYSTEM BILLET HEAVY RATE.

Detailed Fitment Results
Year Make Model Submodel Fitment Notes 2021 Ford Bronco Badlands Rear Reservoir Brackets May Not Fit with Some Aftermarket Steps or Rock Sliders. Modifications May be Required. 2021 Ford Bronco Wildtrak Rear Reservoir Brackets May Not Fit with Some Aftermarket Steps or Rock Sliders. Modifications May be Required. 2021 Ford Bronco Base Rear Reservoir Brackets May Not Fit with Some Aftermarket Steps or Rock Sliders. Modifications May be Required. 2021 Ford Bronco Big Bend Rear Reservoir Bracke…
