Randy's Worldwide : ICON Vehicle DynamicsSKU: BSD-ICN-K24003
Jeep Suspension Lift Kit - Front and Rear - ICON Vehicle Dynamics - K24003
$10,047.89
Shipping Estimate
Enter destination details for an instant shipping estimate. Final rates are confirmed at checkout.
Description
JK STG 3 4.
5 SUSP
07-18 JEEP JK 4.
5" STAGE 3 SUSP SYS
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 4.
5” Backspace / -6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 4.
5” Backspace / -12mm Offset
Recommended Aftermarket Tires: 35" x 12.
50" (Larger 37" tire packages will fit with minor modifications or aftermarket high clearance fenders, test fitment recommended)
APPLICATION NOTE #62: Front Driveshaft Can Hit Certain Model Skid Plates At Full Droop And May Need To Be Trimmed For Full Articulation
APPLICATION NOTE #66: 2 Door Models Sit Slightly Higher Than 4 Door Models But Remain Level When Installed
APPLICATION NOTE #80: Front Drive Shaft Required For Proper Front Driveline Clearance (ICON Part #22014 [12-Up] / #22016 [07-11]
APPLICATION NOTE #123: May Require Rear Alignment Cam Kit
APPLICATION NOTE #150: Shocks Are Fully Serviceable
TECH NOTE: ICON’s advertised lift heights are based around a typical Jeep JK build which usually includes added weight of accessories such as heavier front bumper/winch and heavier rear bumper/spare tire.
Lift heights may be higher than advertised if installed on a stock weighted vehicle.
Ships In Multiple Boxes
07-18 JEEP JK 4.
5" STAGE 3 SUSPENSION SYSTEM
2007-2018 JEEP JK 4.
5" LIFT STAGE 3 SUSPENSION SYSTEM
ICON’s 4.
5” Jeep JK Performance Suspension Systems aims to strike a perfect balance between wheel travel, articulation, ground clearance, and precise on and off-road handling characteristics.
With these goals met, ICON-equipped JK’s can take on rolling desert whoops, crawl over obstacle-riddled trails, and drive back home in comfort all in the same day.
One of the major benefits of the ICON 4.
5” JK system (or any ICON system) is that they are comprehensive suspension solutions, not just “lift kits”.
As a complete manufacturer ICON is able to engineer and create shock absorbers, coil springs, link arms, track bars, and all associated parts to work in conjunction with each other and extract maximum performance out of the Jeep JK.
The ICON Stage 3 Jeep JK 4.

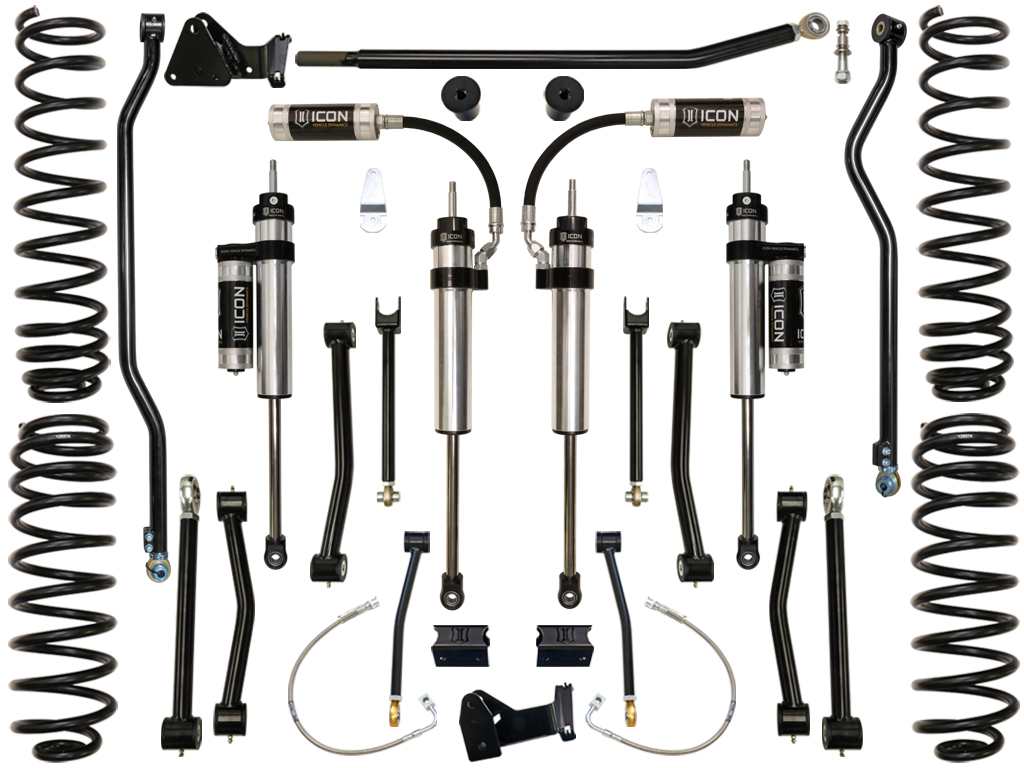

5" suspension system includes dual-rate coil springs, track bar drop brackets, high-steering components, bump stop spacers, rear brake lines, rear sway bar links, complete set of front and rear links, and 2.
5 Series reservoir shocks.
Tested and tuned, the ICON JK Stage 3 suspension system offers stability and drivability over a wide range of off-road terrains, while keeping a smooth on road feel for every day driving.
This system includes 2.
5" remote reservoir shocks front and rear to ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use.
Installing this kit allows proper clearance for 35" tall tires with no modifications and 37" tires with aftermarket high clearance fenders.
Dual-rate coil springs front and rear guaranteed never to sag
High-steer flip kit for proper steering geometry without a drop pitman arm and increased ground clearance over stock
Stainless steel high-steer taper adapter eliminates drilling of the factory knuckle
All links and track bars utilize dual-rate bushings and PTFE-lined rod ends for tuned vibration isolation, controlled deflection, with maximum articulation and responsiveness
Track bars are on vehicle adjustable designed for optimizing axle postion
Includes high-performance rebuildable and revalvable reservoir 2.
5 Series shocks
2.
5 series shocks feature an internal bump zone for added bottom out control
Increased wheel travel and articulation over stock
100% returnable to stock
ICON 2007-18 Jeep JK Wrangler, 4.
5" Lift, Stage 3 Suspension System, 24003
ICON 2007-18 Jeep JK Wrangler, 4.
5" Lift, Stage 3 Suspension System.
Detailed Fitment Results
Year Make Model Fitment Notes 2007 Jeep Wrangler Lift heights based around a typical Jeep build which usually includes added weight of accessories such as heavier front bumper/winch and heavier rear bumper/spare tire. Lift heights may be higher if installed on a stock weighted vehicle. 2008 Jeep Wrangler Lift heights based around a typical Jeep build which usually includes added weight of accessories such as heavier front bumper/winch and heavier rear bumper/spare tire. Lift heights may be higher if installed on a stock weighted vehicle. 2009 Jeep Wrangler Lift heights based around a typical Jeep build which usually includes added weight of accessories such as heavier front bumper/winch and heavier rear bumper/spare tire. Lift heights may be higher if installed on a stock weighted vehicle. 2010 Jeep Wrangler Lift heights based around a typical Jeep build which usually includes added weight of accessories such as heavier front bumper/winch and heavier rear bumper/spare tire. Lift heights may be higher if installed on a stock weighted vehicle. 2011 Jeep Wrangler Lift heights based around a typical Jeep build which usually includes added weight of accessories such as heavier front bumper/winch and heavier rear bumper/spare tire. Lift heights may be higher if installed on a stock weighted vehicle. 2012 Jeep Wrangler Lift heights based around a typical Jeep build which usually includes added weight of accessories such as heavier front bumper/winch and heavier rear bumper/spare tire. Lift heights may be higher if installed on a stock weighted vehicle. 2013 Jeep Wrangler Lift heights based around a typical Jeep build which usually includes added weight of accessories such as heavier front bumper/winch and heavier rear bumper/spare tire. Lift heights may be higher if installed on a stock weighted vehicle. 2014 Jeep Wrangler Lift heights based around a typical Jeep build which usually includes added weight of accessories such as heavier front bumper/winch and heavier rear bumper/spare tire. Lift heights may be higher if installed on a stock weighted vehicle. 2015 Jeep Wrangler Lift heights based around a typical Jeep b…
