20-22 Jeep Gladiator Suspension Lift Kit - Front and Rear - ICON Vehicle Dynamics - K22107T

SUSPENSION SYSTEM
20-UP JT 2.
5" STAGE 7 SUSP SYS TUBULAR
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 4.
5” Backspace / -6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 4.
5” Backspace / -12mm Offset
Recommended Aftermarket Tires: 35" x 12.
50" (37" x 12.
50" with optional bump stop spacer kit PN: 22071)
APPLICATION NOTE #128: Gladiator Mojave Trim Requires 14Mm Misalignment Spacer Kit Part # 611070
APPLICATION NOTE #150: Shocks Are Fully Serviceable
TECH NOTE: ICON’s advertised lift heights are based around a typical Jeep JT build which usually includes added weight of accessories such as heavier front bumper/winch.
Lift heights may be higher than advertised if installed on a stock weighted vehicle.
TECH NOTE: Only compatible with models equipped with 3.
6L V6 Pentastar engine.
Ships In Multiple Boxes
20-UP JEEP GLADIATOR 2.
5" STAGE 7 SUSPENSION SYSTEM (TUBULAR)
2020-UP JEEP GLADIATOR JT 2.
5" STAGE 7 SUSPENSION SYSTEM WITH TUBULAR LINKS
The Stage 7 ICON 2.
5” Suspension System for the Jeep Gladiator is the ideal setup for drastically improving off-road performance and overall ride quality for the application that will see frequent heavy off-road use.

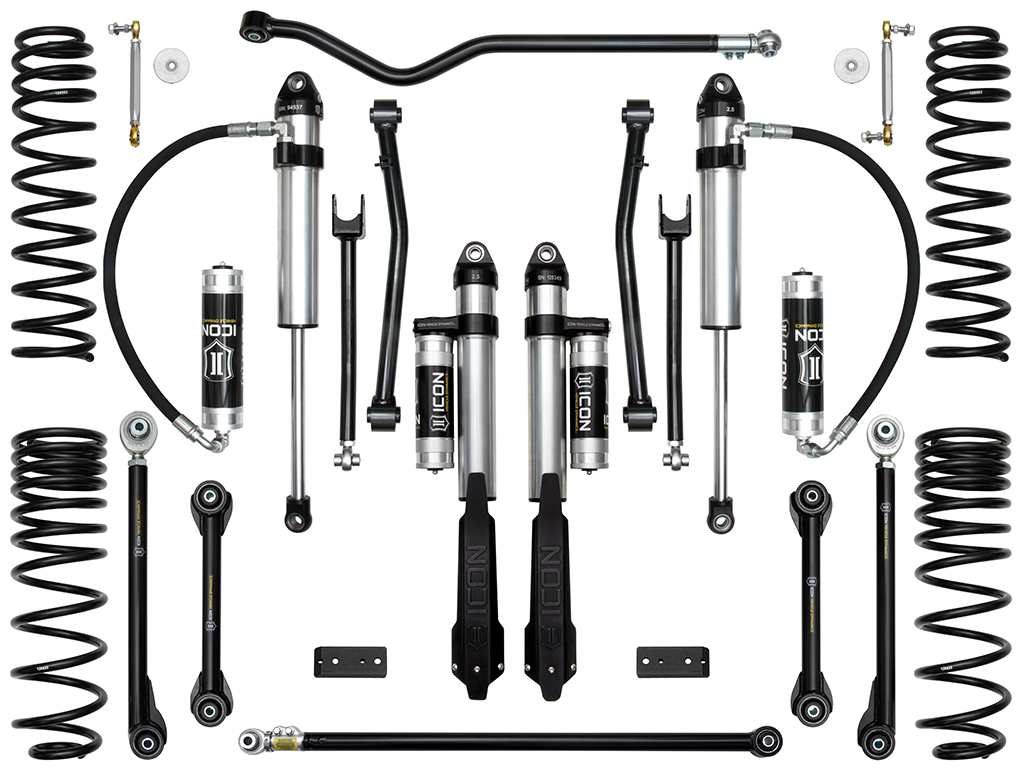

This complete suspension system features ICON’s proven 2.
5 Aluminum Series shocks, 2.
5” lift dual-rate front coil springs, tubular steel fixed lower and adjustable upper front links, billet front sway bar links, a triple-rate rear coil spring kit, tubular steel fixed upper and adjustable lower rear links, a rear sway bar relocation kit, front and rear adjustable track bars, and all necessary hardware for install.
This system provides an increase of over 30% front and 20% rear wheel travel and was designed around the use of a 35” tire.
For those looking to run a 37” tire this can be achieved with the ICON Jeep JT Bump Stop Spacer Kit (Part #22071).
2.
5" lift height
Fits 35" tires (37" with extended bump stop spacer kit)
33% front, 23% rear increase in wheel travel
Improves on and off-road ride quality over stock
Front upper and lower links included for caster angle correction and improved front end articulation
Rear tubular upper and lower links improve rear end articulation and allow for pinion angle adjustment
Dual rate front coil springs with lifetime guarantee against sagging/breakage
Triple rate rear coil springs with ICON-engineered droop, ride, and overload rates
2.
5 Aluminum Series shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
Front and rear track bars ensure proper alignment and improved articulation
Adjustable, billet aluminum front sway bar links
100% bolt-on system makes for an easy install
“ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
ICON 2020-Up Jeep Gladiator, 2.
5" Lift, Stage 7 Suspension System, Tubular UCA, K22107T
ICON 2020-Up Jeep Gladiator, 2.
5" Lift, Stage 7 Suspension System, Tubular UCA.

Detailed Fitment Results
Year Make Model Submodel Fitment Notes 2020 Jeep Gladiator Sport S Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.50” Backspace / -6mm Offset
Lift heights based around a typical Jeep build which usually includes added weight of accessories such as heavier front bumper/winch. Lift heights may be higher if installed on a stock weighted vehicle. 2020 Jeep Gladiator Sport Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.50” Backspace / -6mm Offset
Lift heights based around a typical Jeep build which usually includes added weight of accessories such as heavier front bumper/winch. Lift heights may be higher if installed on a stock weighted vehicle. 2020 Jeep Gladiator Mojave Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.50” Backspace / -6mm Offset
Lift heights based around a typical Jeep build which usually includes added weight of accessories such as heavier front bumper/winch. Lift heights may be higher if installed on a stock weighted vehicle. 2020 Jeep Gladiator Rubicon Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.50” Backspace / -6mm Offset
Lift heights based around a typical Jeep build which usually includes added weight of accessories such as heavier front bumper/winch. Lift heights may be higher if installed on a stock weighted vehicle. 2020 Jeep Gladiator Overland Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.50” Backspace / -6mm Offset
Lift heights based around a typical Jeep build which usually includes added weight of accessories such as heavier front bumper/winch. Lift heights may be higher if installed on a stock weighted vehicle. 2020 Jeep Gladiator Launch Edition Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.50” Backspace / -6mm Offset
Lift heights based around a typical Jeep build which usually includes added weight of accessories such as heavier front bumper/winch. Lift heights may be higher if installed on a stock weighted vehicle. 2020 Jeep Gladiator Altitude Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.50” Backspace / -6mm Offset
Lift heights based around a typical Jeep build which usually includes added weight of accessories such as heavier front bumper/winch. Lift heights may be higher if installed on a stock weighted vehicle. 2021 Jeep Gladiator Sport S Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.50” Backspace / -6mm Offset
Lift heights based around a typical Jeep build which usually includes added weight of accessories such as heavier front bumper/winch. Lift heights may be higher if installed on a stock weighted vehicle. 2021 Jeep Gladiator Sport Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.50” Backspace / -6mm Offset
Lift heights based around a typical Jeep build which usually includes added weight of accessories such as heavier front bumper/winch. Lift heights may be higher if installed on a stock weighted vehicle. 2021 Jeep Gladiator Mojave Recommended Aftermarket Wheel Size: …
