18-22 Jeep Wrangler (3.6) Suspension Lift Kit - ICON Vehicle Dynamics - K22015

JEEP JL 2.
5" STAGE 5
2018-UP JEEP JL 2.
5" STAGE 5 SUSP SYS
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 4.
5” Backspace / -6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 4.
5” Backspace / -12mm Offset
Recommended Aftermarket Tires: 35" x 12.
50" (37" x 12.
50" with optional bump stop spacer kit PN: 22029)
APPLICATION NOTE #66: 2 Door Models Sit Slightly Higher Than 4 Door Models But Remain Level When Installed
APPLICATION NOTE #150: Shocks Are Fully Serviceable
TECH NOTE: ICON’s advertised lift heights are based around a typical Jeep JL build which usually includes added weight of accessories such as heavier front bumper/winch and heavier rear bumper/spare tire.
Lift heights may be higher than advertised if installed on a stock weighted vehicle.
TECH NOTE: Only compatible with models equipped with 3.
6L V6 Pentastar engine.
Not compatible with 3.
6L V6 eTorque engine.
Ships In Multiple Boxes
18-UP JEEP JL 2.
5" STAGE 5 SUSPENSION SYSTEM
2018-UP JEEP JL 2.
5" LIFT STAGE 5 SUSPENSION SYSTEM
The ICON Vehicle Dynamics Stage 5 2.
5" Suspension System for the 2018-UP Jeep Wrangler JL is designed for the driver looking to drastically improve the performance and ride quality of their vehicle.

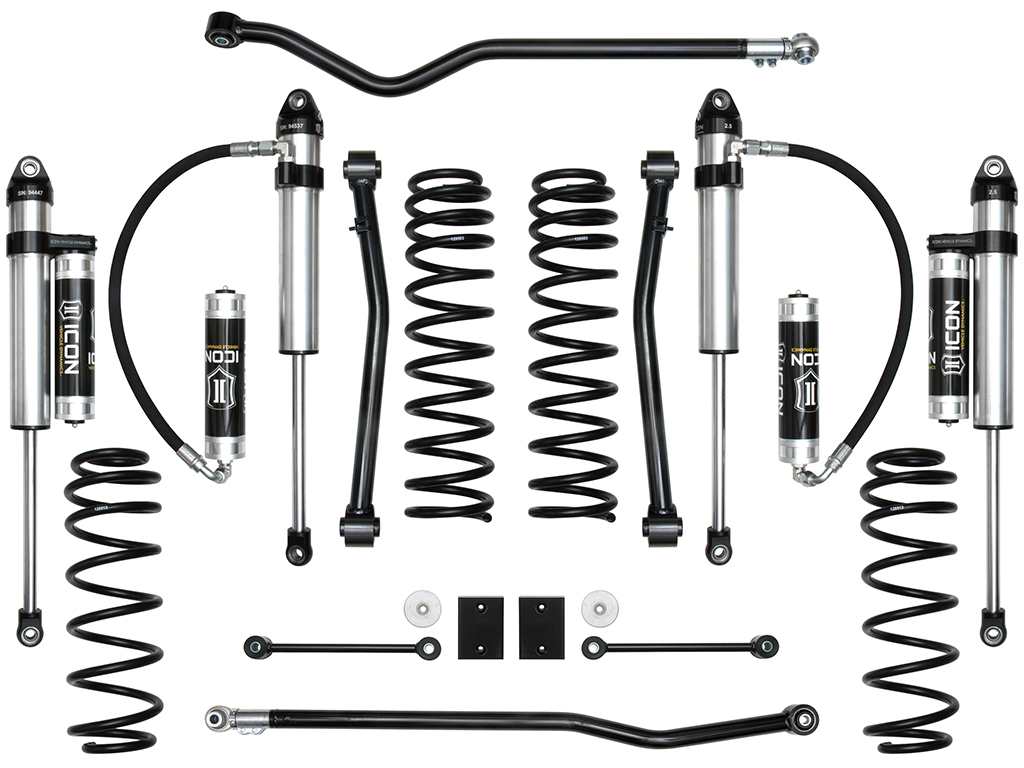

This Stage 5 system includes 2.
5" lift dual rate coil springs, upgraded 2.
5 Aluminum Series shocks with vehicle specific valving, tubular steel front lower links, adjustable front and rear track bars, bump stop spacers, sway bar links, and all necessary hardware to complete the installation.
With this combination of components, ICON was able to increase wheel travel numbers by over 30% (3" front, 2" rear), redefining the potential of the 2018-UP JL.
The front lower links included with this system are constructed from thick wall steel tubing, provide increased castor numbers, and feature dual durometer bushings for noise free operation, maximum articulation, and minimal bind.
The Stage 5 system allows for fitment of 35" tires when used with ICON's recommended wheel specifications.
For users looking to install 37" tires, an optional bump stop spacer kit (PN: 22029) is available.
2.
5" lift height
Fits 35" tires (37" with optional bump stop spacer kit PN: 22029)
3" front, 2" rear increase in wheel travel
Improves on and off-road ride quality over stock
Dual rate coil springs with lifetime guarantee against sagging/breakage
2.
5 Aluminum Series shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
Tubular steel link arms with dual durometer bushings for noise free performance, maximum articulation, and minimal bind
100% bolt-on system makes for an easy install
“ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
ICON 2018-Up Jeep JL Wrangler, 2.
5" Lift, Stage 5 Suspension System, K22015
ICON 2018-Up Jeep JL Wrangler, 2.
5" Lift, Stage 5 Suspension System.

Detailed Fitment Results
Year Make Model Submodel Fitment Notes 2018 Jeep Wrangler Unlimited Sahara Lift heights based around a typical Jeep build which usually includes added weight of accessories such as heavier front bumper/winch and heavier rear bumper/spare tire. Lift heights may be higher if installed on a stock weighted vehicle. 2018 Jeep Wrangler Unlimited Sport Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset
Lift heights based around a typical Jeep build which usually includes added weight of accessories such as heavier front bumper/winch and heavier rear bumper/spare tire. Lift heights may be higher if installed on a stock weighted vehicle. 2018 Jeep Wrangler Unlimited Sport S Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset
Lift heights based around a typical Jeep build which usually includes added weight of accessories such as heavier front bumper/winch and heavier rear bumper/spare tire. Lift heights may be higher if installed on a stock weighted vehicle. 2018 Jeep Wrangler Unlimited Rubicon Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.50” Backspace / -6mm Offset
Lift heights based around a typical Jeep build which usually includes added weight of accessories such as heavier front bumper/winch and heavier rear bumper/spare tire. Lift heights may be higher if installed on a stock weighted vehicle. 2018 Jeep Wrangler Sport Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset
Lift heights based around a typical Jeep build which usually includes added weight of accessories such as heavier front bumper/winch and heavier rear bumper/spare tire. Lift heights may be higher if installed on a stock weighted vehicle. 2018 Jeep Wrangler Sport S Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset
Lift heights based around a typical Jeep build which usually includes added weight of accessories such as heavier front bumper/winch and heavier rear bumper/spare tire. Lift heights may be higher if installed on a stock weighted vehicle. 2018 Jeep Wrangler Rubicon Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.50” Backspace / -6mm Offset
Lift heights based around a typical Jeep build which usually includes added weight of accessories such as heavier front bumper/winch and heavier rear bumper/spare tire. Lift heights may be higher if installed on a stock weighted vehicle. 2018 Jeep Wrangler Unlimited Moab Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset
Lift heights based around a typical Jeep build which usually includes added weight of accessories such as heavier front bumper/winch and heavier rear bumper/spare tire. Lift heights may be higher if installed on a stock weighted vehicle. 2019 Jeep Wrangler Unlimited Sahara Lift heights based around a typical Jeep build which usually includes added weight of accessories such as heavier front bumper/winch and heavier rear bumper/sp…
