Dodge, Ram (4WD) Suspension Lift Kit - Front and Rear - ICON Vehicle Dynamics - K214553T

4.
5" SUSP SYS STG 4
09-12 RAM HD 4.
5" STAGE 4 SUSP SYSTEM
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 5.
25” Backspace / 13mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.
50" Backspace / 12mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.
50" Backspace / 12mm Offset
Recommended Aftermarket Tires: 35" x 12.
50" (Larger tires may fit but fender trimming and modifications will be required)
APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
APPLICATION NOTE #55: Shocks Are Fully Serviceable.
Coilover Heights Indicated Are For A Stock Equipped Vehicle
APPLICATION NOTE #101: Call ICON For 2013 Ram 2500/3500 Vehicles
Ships in Multiple Boxes
09-12 RAM 2500/3500 4.
5" STAGE 4 SUSPENSION SYSTEM
2009-2012 RAM 2500/3500 4.
5" LIFT STAGE 4 SUSPENSION SYSTEM
2009-2012 Ram 2500/3500 4.
5" Stage 4 Suspension System utilizes the same technology as the 2.
5" systems while adding lift height and ground clearance.
Additional engineered front-end components are added to ensure proper steering geometry with improved function throughout the entire travel range whether on or off road.

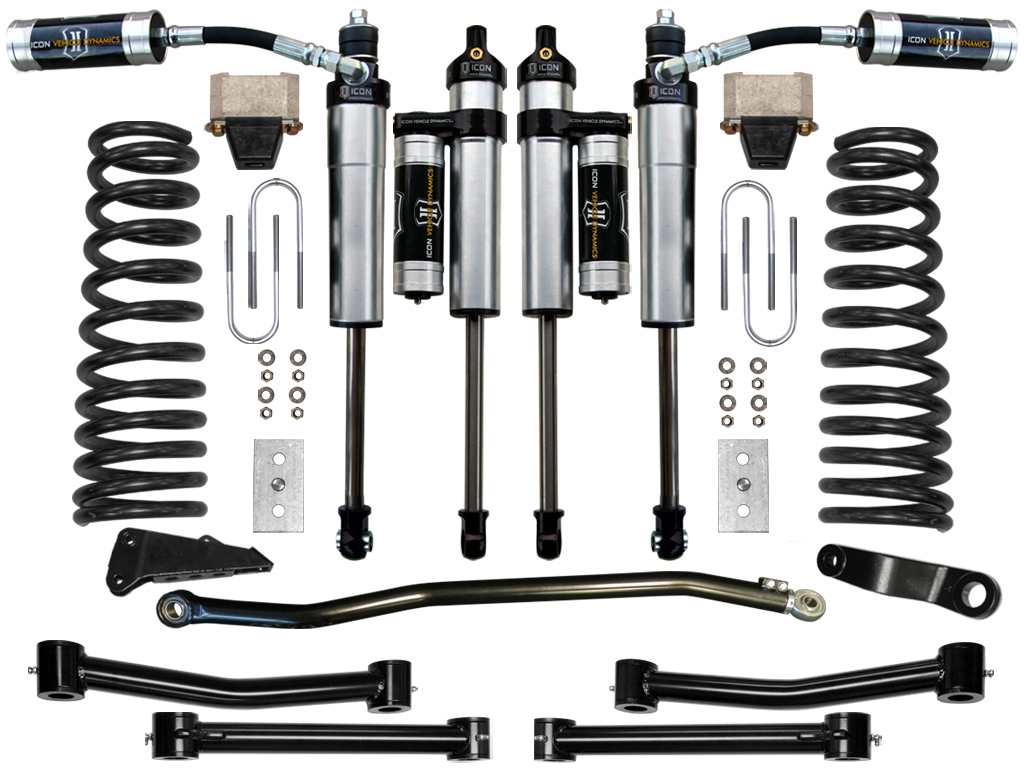

The Stage 4 System is comprised of dual rate coil springs, tubular steel upper and lower link arms, polyurethane bump stops w/ billet extension, sway bar drop brackets, forged pitman arm, track bar drop bracket, 2.
5 Aluminum Series shocks, and bearing style adjustable track bar.
ICON 2.
5" Aluminum Series shocks extend the performance of the kit by increasing the duration of consistent damping regardless of situation.
These shocks include FK bearings, billet top cap and rod ends, and 7/8" shafts for strength.
The adjustable track bar with bearings not only improves rigidity over flexible factory joints, but offers adjustability to center the front axle under the truck.
ICON steel upper and lower links increase performance, strength, and range of alignment.
These link arms decrease the bind found in the factory link bushings.
This ultimate performance system with link arms offers extraordinary diversity across any terrain, all while keeping a smooth highway feel.
Installing this kit allows proper clearance for 35" tall tires with no modifications, and some 37" tires with minor fender well trimming for clearance.
With the endless hours ICON has spent testing and tuning our suspension components and shocks together, you can rest assured you have the best suspension solution on the market.
ICON engineered dual rate coil springs with match tuned 2.
5 Aluminum Series reservoir shocks
Adjustable track bar with PTFE lined FK bearings
Heavy-duty steel upper and lower link bars
Increased wheel travel and ride quality over stock with no change in towing capacity
Correctly positioned steering and track bar components
Level stance front to rear
Less body roll than stock
No drive shaft modifications needed
ICON 2009-12 Ram 2500/3500, 4.
5" Lift, Stage 4 Suspension System, K214553T
ICON 2009-12 Ram 2500/3500, 4.
5" Lift, Stage 4 Suspension System.

Detailed Fitment Results
Year Make Model 2009 Dodge Ram 2500 2009 Dodge Ram 3500 2010 Dodge Ram 2500 2010 Dodge Ram 3500 2011 Ram 2500 2011 Ram 3500 2012 Ram 2500 2012 Ram 3500
