Dodge (4WD) Suspension Lift Kit - Front and Rear - ICON Vehicle Dynamics - K214501T

RAM HD 4.
5 STG 2
03-08 RAM HD 4WD 4.
5" STAGE 2 SUSP SYS
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17" x 8.
5" w/ 5.
25” BS / 13mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20" x 9" w/5.
75" BS / 19mm Offset
Recommended Aftermarket Tires: 35" x 12.
50" (Larger tires may fit but fender trimming and modifications will be required)
APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
APPLICATION NOTE #30: An Adjustable Track Bar May Be Needed To Realign The Axle From Left To Right, Or To Add Additional Strength
APPLICATION NOTE #55: Shocks Are Fully Serviceable.
Coilover Heights Indicated Are For A Stock Equipped Vehicle
APPLICATION NOTE #126: Trucks Equipped With 03-06 Style Steering Will Require 4" Drop Pitman Arm (Not Included) Or Upgrade To 07-12 Steering Setup.
Trucks Equipped With 07-12 Style Steering Will Need ICON Pitman Arm Part# 214101
Ships in Multiple Boxes
03-08 RAM 2500/3500 4WD 4.
5" STAGE 2 SUSPENSION SYSTEM
2003-2008 RAM 2500/3500 4WD 4.
5" LIFT STAGE 2 SUSPENSION SYSTEM
2003-2008 Ram 2500/3500 4.
5 Inch Stage 2 Suspension System utilizes the same technology as the 2.
5 inch systems while adding lift height and ground clearance.
Additional engineered front end components are added to ensure proper steering geometry with improved function throughout the entire travel range whether on or off road.
Remote reservoir shocks will extend performance of the kit by increasing the duration of consistent damping regardless of situation.
ICON steel upper and lower links increase performance, strength, and range of alignment.
These link arms decrease the bind found in the factory link bushings.
This performance system with link arms is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel.
Installing this kit allows proper clearance for 35" tall tires with no modifications, and some 37" tires with minor fender well trimming for clearance.
With the endless hours ICON has spent testing and tuning our suspension components and shocks together, you can rest assured you have the best suspension solution on the market.

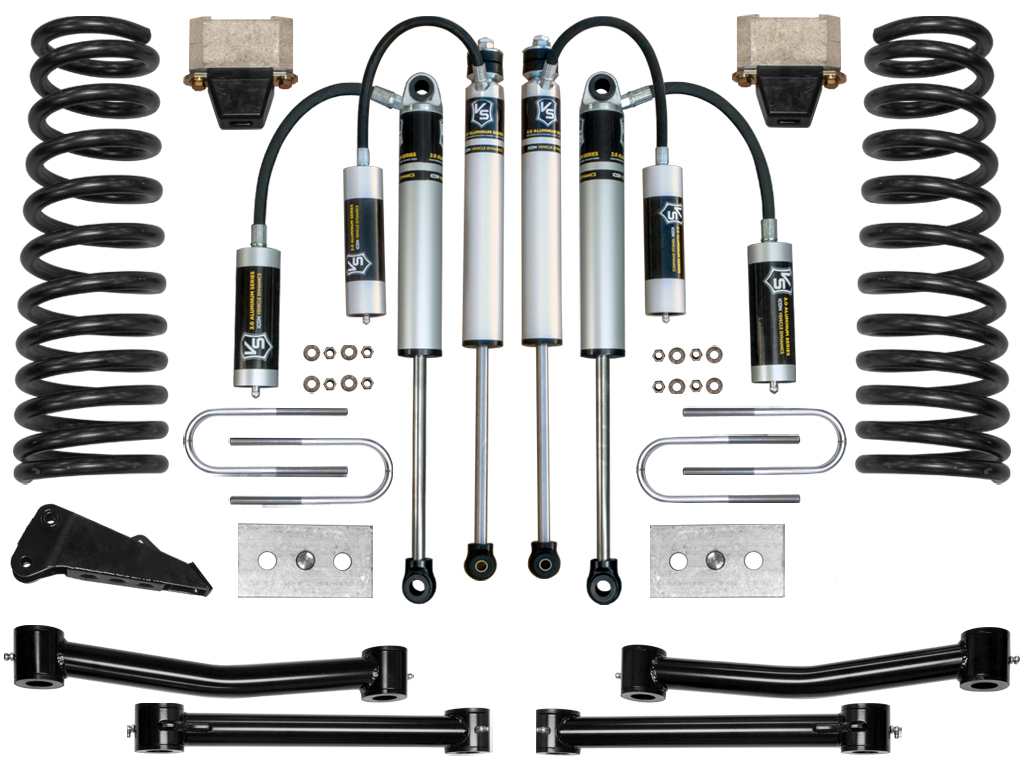

ICON engineered dual rate coil springs with match tuned 2.
0 Aluminum Series remote reservoir shocks
Heavy-duty steel upper and lower link bars
Increased wheel travel and ride quality over stock with no change in towing capacity
Correctly positioned steering and track bar components
Level stance front to rear
Less body roll than stock
No drive shaft modifications needed
ICON 2003-2008 Ram 2500/3500 4WD, 4.
5" Lift, Stage 2 Suspension System, K214501T
ICON 2003-2008 Ram 2500/3500 4WD, 4.
5" Lift, Stage 2 Suspension System.

Detailed Fitment Results
Year Make Model Fitment Notes 2003 Dodge Ram 2500 Trucks equipped with 03-06 style steering will require 4” drop pitman arm (NOT INCLUDED) or upgrade to 07-12 steering setup. Trucks equipped with 07-12 style steering will need ICON pitman arm part number 214101. 2003 Dodge Ram 3500 Trucks equipped with 03-06 style steering will require 4” drop pitman arm (NOT INCLUDED) or upgrade to 07-12 steering setup. Trucks equipped with 07-12 style steering will need ICON pitman arm part number 214101. 2004 Dodge Ram 2500 Trucks equipped with 03-06 style steering will require 4” drop pitman arm (NOT INCLUDED) or upgrade to 07-12 steering setup. Trucks equipped with 07-12 style steering will need ICON pitman arm part number 214101. 2004 Dodge Ram 3500 Trucks equipped with 03-06 style steering will require 4” drop pitman arm (NOT INCLUDED) or upgrade to 07-12 steering setup. Trucks equipped with 07-12 style steering will need ICON pitman arm part number 214101. 2005 Dodge Ram 2500 Trucks equipped with 03-06 style steering will require 4” drop pitman arm (NOT INCLUDED) or upgrade to 07-12 steering setup. Trucks equipped with 07-12 style steering will need ICON pitman arm part number 214101. 2005 Dodge Ram 3500 Trucks equipped with 03-06 style steering will require 4” drop pitman arm (NOT INCLUDED) or upgrade to 07-12 steering setup. Trucks equipped with 07-12 style steering will need ICON pitman arm part number 214101. 2006 Dodge Ram 2500 Trucks equipped with 03-06 style steering will require 4” drop pitman arm (NOT INCLUDED) or upgrade to 07-12 steering setup. Trucks equipped with 07-12 style steering will need ICON pitman arm part number 214101. 2006 Dodge Ram 3500 Trucks equipped with 03-06 style steering will require 4” drop pitman arm (NOT INCLUDED) or upgrade to 07-12 steering setup. Trucks equipped with 07-12 style steering will need ICON pitman arm part number 214101. 2007 Dodge Ram 2500 Trucks equipped with 03-06 style steering will require 4” drop pitman arm (NOT INCLUDED) or upgrade to 07-12 steering setup. Trucks equipped with 07-12 style steering will need ICON pitman arm part number 214101. 2007 Dodge Ram 3500 Trucks equipped with 03-06 style steering will require 4” drop pitman arm (NOT INCLUDED) or upgrade to 07-12 steering setup. Trucks equipped with 07-12 style steering will need ICON pitman arm part number 214101. 2008 Dodge Ram 2500 Trucks equipped with 03-06 style steering will require 4” drop pitman arm (NOT INCLUDED) or upgrade to 07-12 steering setup. Trucks equipped with 07-12 style steering will need ICON pitman arm part number 214101. 2008 Dodge Ram 3500 Trucks equipped with 03-06 style steering will require 4” drop pitman arm (NOT INCLUDED) or upgrade to 07-12 steering setup. Trucks equipped with 07-12 style steering will need ICON pitman arm part number 214101.
